1 目标：B站app心跳和完播

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
- PC
	- 点击播放：播放请求 + 心跳请求
	- 每15s发送一次
	- 最后一次心跳
- APP
	- 点击播放：播放请求 + 心跳请求
	- 最后一次心跳（暂停时间、播放时间）

#1 完播率接口
# b站视频刷播放量
	-破了一个接口：https://api.bilibili.com/x/report/click/android2-->可以提高播放量
    -有个限度---》换设备---》换ip
# 视频是否被完整播放完了---完播率接口
	-PC：
    	-https://api.bilibili.com/x/click-interface/web/heartbeat
        -每隔15s向后端发送一次请求，到最后视频播放完成---》记一次完播率
        -发请求的时候，带了当前时间，视频播放到位置--》登录用户--》下次再打开这个视频，它会从我上次看到的位置继续播放--》前后会差15s钟

    -APP：
		-https://api.bilibili.com/x/report/heartbeat/mobile
        -视频点击开，发送一次，视频播放完，发送一次---》app端完播率简单，咱们不需要每隔15s发送一次，只需要发送两次请求，就能触发它的完播率

  • 版本：v6.24.0

  • 设备：真机（必须）

2 抓包分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
# 请求地址：
https://api.bilibili.com/x/report/heartbeat/mobile
# 请求方法：
POST
# 请求头：(之前都破好了)
    buvid:XXCE06EC3F65CE60EE272907EC70BD5A491E7
    device-id:IBksFHYQJ0QiF3FAckQmFVUFbBRxHS93Ow
    fp_local:1d6a9c1ac4f284329263021dc511149f20230808200943dd22c10f6ccec20ddd
    fp_remote:1d6a9c1ac4f284329263021dc511149f202308030024054e69106c26213aee5f
    session_id:4f99a692
    env:prod
    app-key:android
# 请求参数：
	#----视频id号--已经处理好
	aid	441087535
    cid	1056967029
    #---设备id号---一台手机就是固定的
    appkey	1d8b6e7d45233436
    actual_played_time	0
    auto_play	0
    build	6240300
    c_locale	zh-Hans_CN
    channel	xxl_gdt_wm_253
    epid	0
    epid_status
    from	6
    from_spmid	tm.recommend.0.0
    last_play_progress_time	0
    list_play_time	0
    max_play_progress_time	0
    mid	0
    miniplayer_play_time	0
    mobi_app	android
    network_type	1
    paused_time	0   # 暂停了多长时间
    platform	android
    play_status	0
    play_type	1
    played_time	0   # 播放了多长时间
    quality	64
    s_locale	zh-Hans_CN
    sid	0
    spmid	main.ugc-video-detail-vertical.0.0
    start_ts	0
    statistics	{"appId":1,"platform":3,"version":"6.24.0","abtest":""}
    sub_type	0
    total_time	0
    ts	1691657232
    type	3
    user_status	0
    video_duration	449  #视频时长是多少秒
    # --以上都是固定的---需要逆向的如下--
    session	901c6d78daacbf015bd9868d401215e2fac86b9e
    sign	4cf853cd686c9b1be523f762fb117b23



# 我们的目标：破解session和 sign

3 破解session

3.1 反编译–>搜索url

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
# 1 搜索url：x/report/heartbeat/mobile
# 2 查找用例：找到三个位置 ---》每个都查看---》最终都是HeartbeatParams的对象
	-依次查看，我们确定位置--》P7

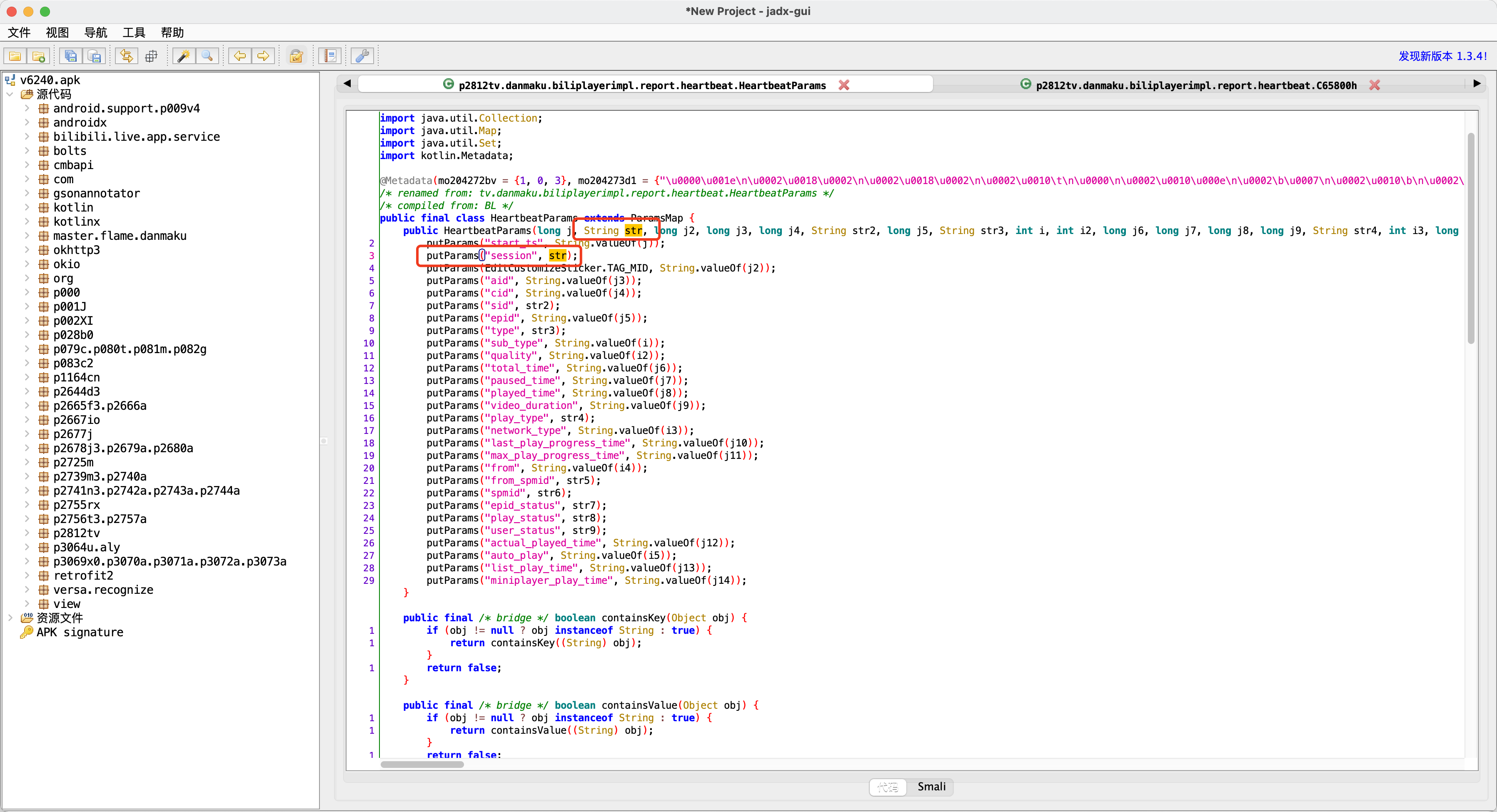

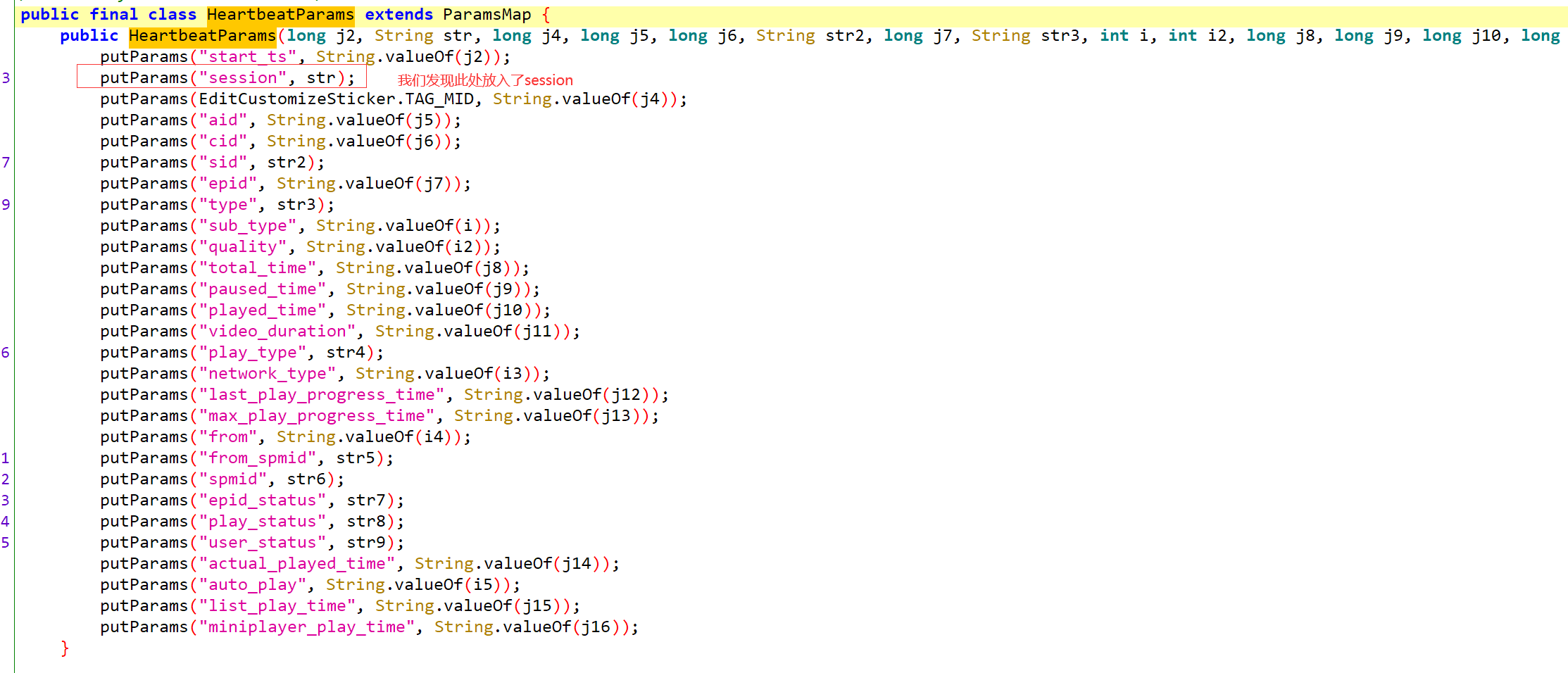

# 3 我们查看传入参数：N7 的类---》HeartbeatParams查找声明
# 4 在类内部发现有位置放入了session
# 5 N7是通过调用N7得到的，我们再查看N7
HeartbeatParams N7 = N7(hVar2, true);
# 6 N7返回了new 一个HeartbeatParams ，传入的第二个参数就是session--》hVar.r1()

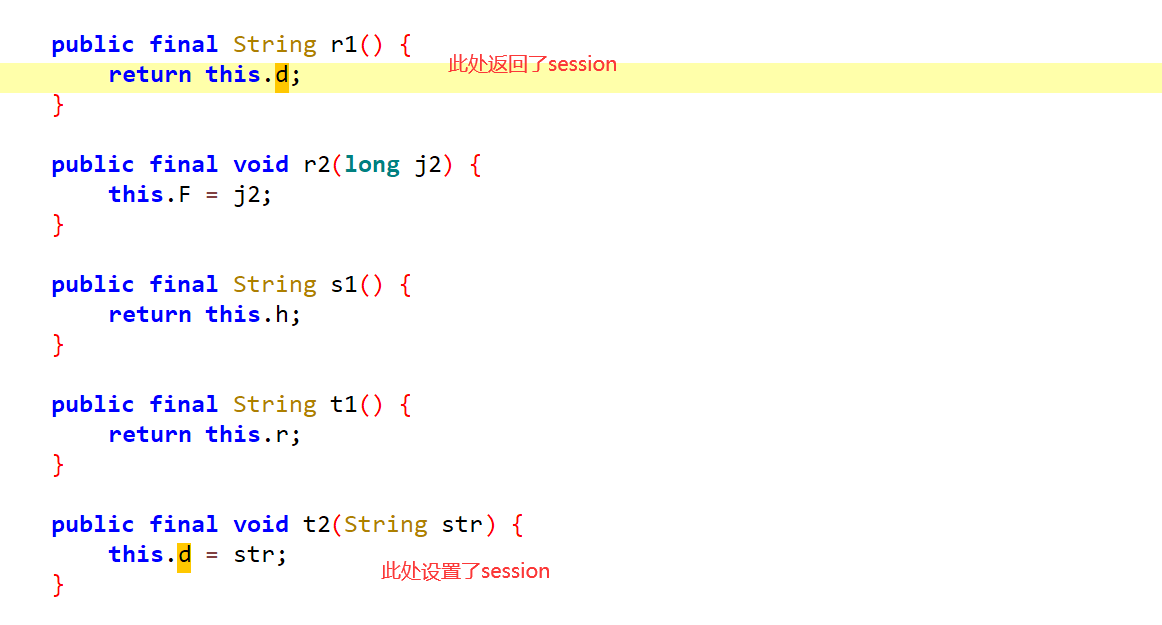

# 7 查看hVar.r1()的声明
  # 返回了session
  public final String r1() {
        return this.d;
    }
   # 设置了session
   public final void t2(String str) {
        this.d = str;
    }
# 8 得看谁调用了t2 把session传入了
	1 查找用例，看谁调用了t2
    2 对t2进行hook，打印调用栈查看谁调用

# 9 hook t2，打印调用栈
    at tv.danmaku.biliplayerimpl.report.heartbeat.h.t2(Native Method)
	at tv.danmaku.biliplayerimpl.report.heartbeat.h$a.b(BL:5)
	at tv.danmaku.biliplayerimpl.report.heartbeat.d.L7(BL:2)
	at tv.danmaku.biliplayerimpl.report.heartbeat.d.u7(BL:3)
	at tv.danmaku.biliplayerimpl.core.PlayerCoreServiceV2$l.onPrepared(BL:2)
	at t3.a.i.b.i$j.onPrepared(BL:6)
	at tv.danmaku.ijk.media.player.AbstractMediaPlayer.notifyOnPrepared(BL:2)
	at tv.danmaku.ijk.media.player.IjkMediaPlayer$EventHandler.handleMessage(BL:107)
	at android.os.Handler.dispatchMessage(Handler.java:106)
	at android.os.Looper.loop(Looper.java:223)
	at android.app.ActivityThread.main(ActivityThread.java:7656)
	at java.lang.reflect.Method.invoke(Native Method)
	at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:592)
	at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:947)

#10 tv.danmaku.biliplayerimpl.report.heartbeat.h$a.b调用了t2
	搜索：tv.danmaku.biliplayerimpl.report.heartbeat.h.a 下的b方法

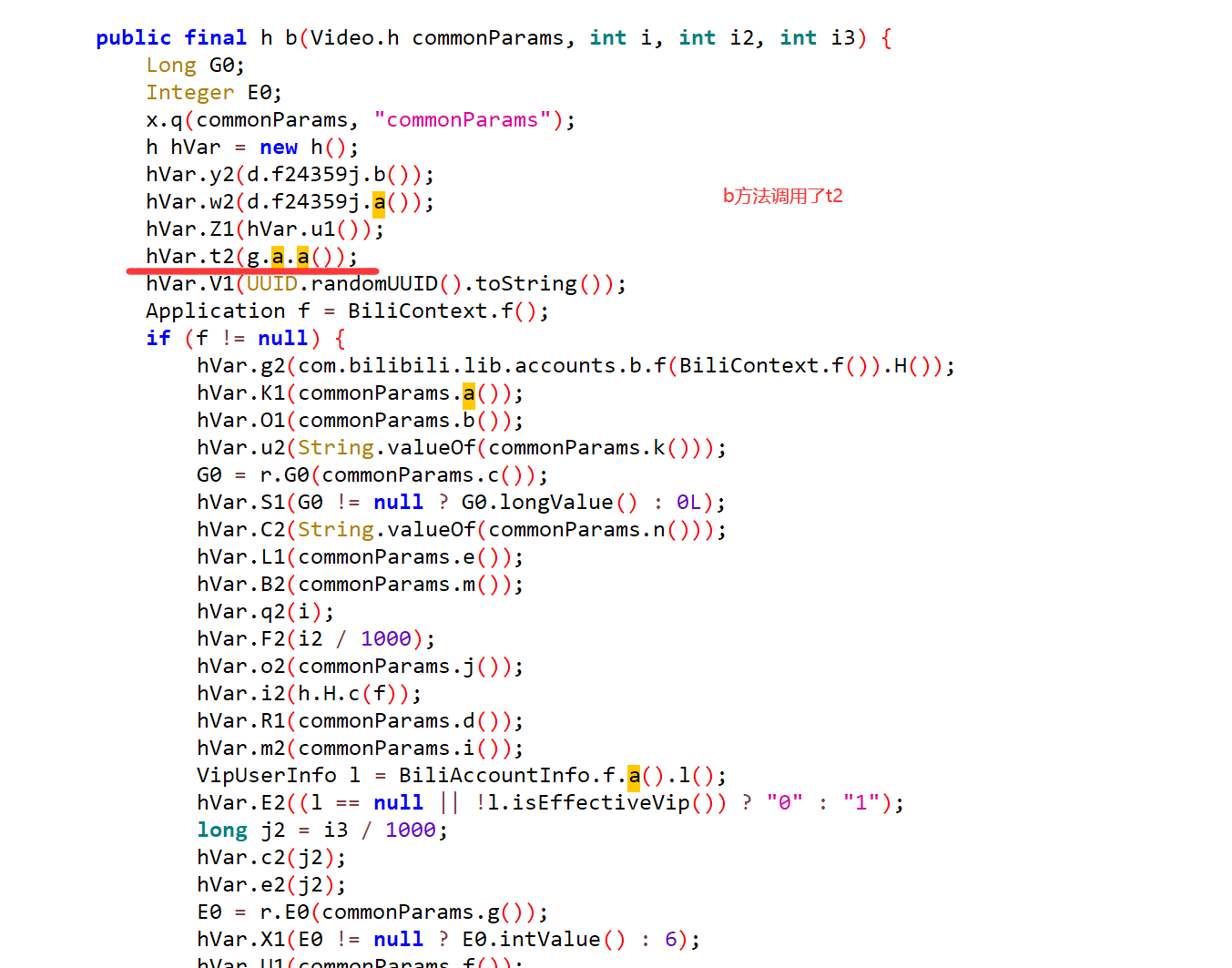

# 11 发现b方法里调用了t2
    public final h b(Video.h commonParams, int i, int i2, int i3) {
        Long G0;
        Integer E0;
        h hVar = new h();
        hVar.y2(d.f24359j.b());
        hVar.w2(d.f24359j.a());
        hVar.Z1(hVar.u1());
        hVar.t2(g.a.a());
# 12 继续查看：g.a.a()
public final String a() {
        Random random = new Random(); # 拿到random对象，后面肯定会用随机的东西
        StringBuilder sb = new StringBuilder(); # sb 为了拼接字符串
        c2.f.b0.c.b.b.a.a E = c2.f.b0.c.b.b.a.a.E();
        sb.append(E.t());  # 字符串中先拼了个  E.t()
        sb.append(System.currentTimeMillis()); # 字符串又拼了当前时间戳
        sb.append(random.nextInt(1000000)); # 字符串又拼了随机1百万以内的一个数字
        String sb2 = sb.toString();  # 转成了字符串
        String sha1 = com.bilibili.commons.m.a.i(sb2); # 我们猜，就是把上面的字符串使用sha1加密
        if (TextUtils.isEmpty(sha1)) {
            return sb2;
        }
        x.h(sha1, "sha1");
        return sha1;
    }
# 13 com.bilibili.commons.m.a.i 是sha1摘要
   public static String i(String str) {
        return j(str.getBytes());
    }
# 14 j函数
      public static String j(byte[] bArr) {
        try {
            return h(bArr, MessageDigest.getInstance("SHA1"));
        } catch (NoSuchAlgorithmException e) {
            e.printStackTrace();
            return null;
        }
    }
#15  h函数
     private static String h(byte[] bArr, MessageDigest messageDigest) {
        messageDigest.update(bArr);
        byte[] digest = messageDigest.digest();
        char[] cArr = new char[digest.length * 2];
        int i = 0;
        for (byte b : digest) {
            int i2 = i + 1;
            char[] cArr2 = a;
            cArr[i] = cArr2[(b >>> 4) & 15];
            i = i2 + 1;
            cArr[i2] = cArr2[b & cv.f24887m];
        }
        return new String(cArr).toLowerCase();
    }


# 16 sb2 字符串具体是啥
     sb.append(E.t());  # 字符串中先拼了个  E.t()
     sb.append(System.currentTimeMillis()); # 字符串又拼了当前时间戳
     sb.append(random.nextInt(1000000)); # 字符串又拼了随机1百万以内的一个数字

# 17 hook一下com.bilibili.commons.m.a.i，查看传入的字符串是什么--》第一段就是E.t
    hook后发现 E.t() 是空的

# 18 最终：使用python重写session生成

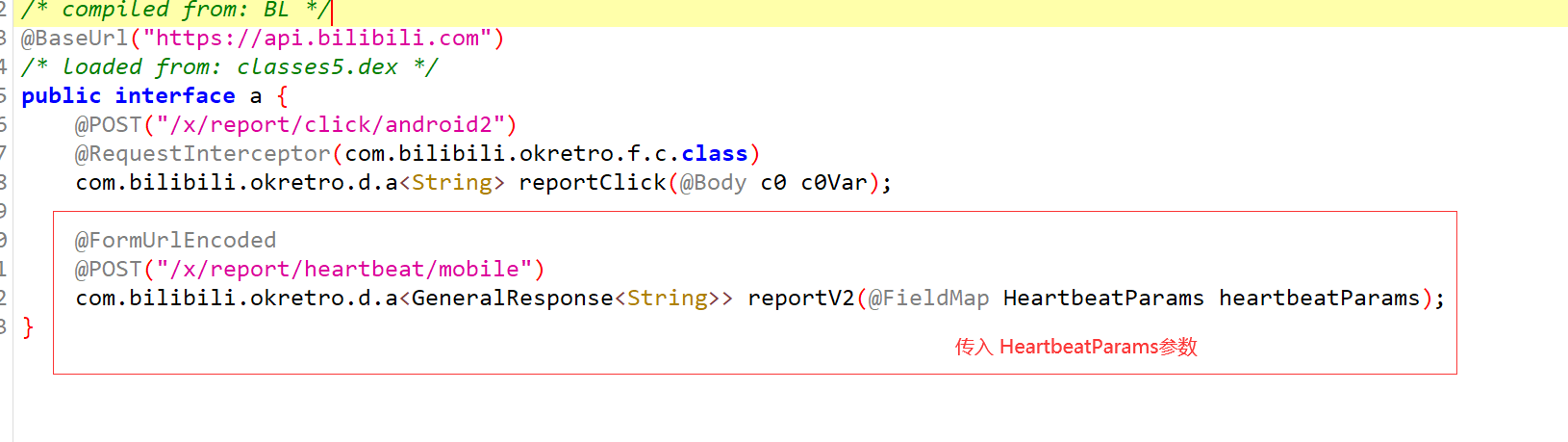

image-20240517175725711

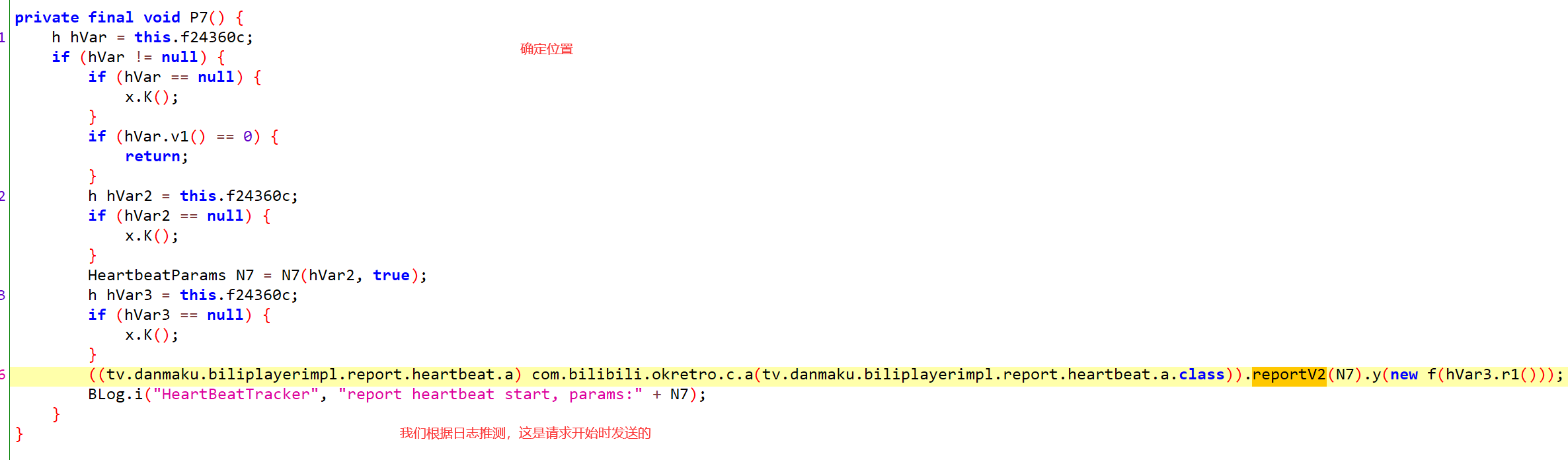

image-20240517175740468

image-20240517175749709

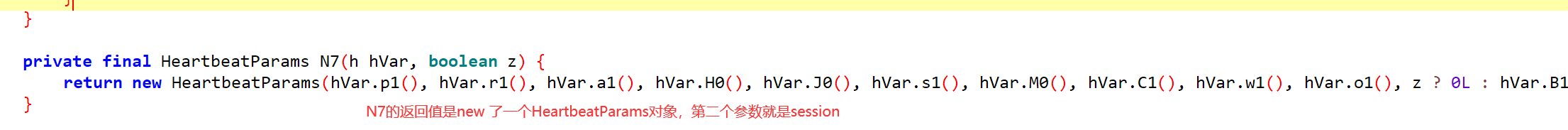

image-20240517175804491

image-20240517175811172

image-20240517175819378

3.2 hook–t2–打印调用栈

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
import frida
import sys

rdev = frida.get_remote_device()
# session = rdev.attach("tv.danmaku.bili")
session = rdev.attach("哔哩哔哩")

scr = """
    Java.perform(function () {
    var h = Java.use("tv.danmaku.biliplayerimpl.report.heartbeat.h");
    h.t2.implementation = function(str){
        console.log("设置session",str);
        this.t2(str);
        //调用栈
      console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));

    };

    });
"""

script = session.create_script(scr)

script.load()
sys.stdin.read()



'''
设置session 69a5568e29c5f5bb120901435e2bd98281c1969d
java.lang.Throwable
	at tv.danmaku.biliplayerimpl.report.heartbeat.h.t2(Native Method)
	at tv.danmaku.biliplayerimpl.report.heartbeat.h$a.b(BL:5)
	at tv.danmaku.biliplayerimpl.report.heartbeat.d.L7(BL:2)
	at tv.danmaku.biliplayerimpl.report.heartbeat.d.u7(BL:3)
	at tv.danmaku.biliplayerimpl.core.PlayerCoreServiceV2$l.onPrepared(BL:2)
	at t3.a.i.b.i$j.onPrepared(BL:6)
	at tv.danmaku.ijk.media.player.AbstractMediaPlayer.notifyOnPrepared(BL:2)
	at tv.danmaku.ijk.media.player.IjkMediaPlayer$EventHandler.handleMessage(BL:107)
	at android.os.Handler.dispatchMessage(Handler.java:106)
	at android.os.Looper.loop(Looper.java:223)
	at android.app.ActivityThread.main(ActivityThread.java:7656)
	at java.lang.reflect.Method.invoke(Native Method)
	at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:592)
	at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:947)

'''

3.3 hook–com.bilibili.commons.m.a.i(sb2)–看E.t()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
import frida
import sys
from frida.core import Device
rdev = frida.get_remote_device()

# session = rdev.attach("tv.danmaku.bili")
session = rdev.attach("哔哩哔哩")

scr = """
Java.perform(function () {
    var a = Java.use("com.bilibili.commons.m.a");

    a.i.implementation = function(str){
       console.log("参数=",str);
       var res = this.i(str);
       console.log("返回值=",res);
       return res;
    }

});
"""
script = session.create_script(scr)

script.load()
sys.stdin.read()



'''

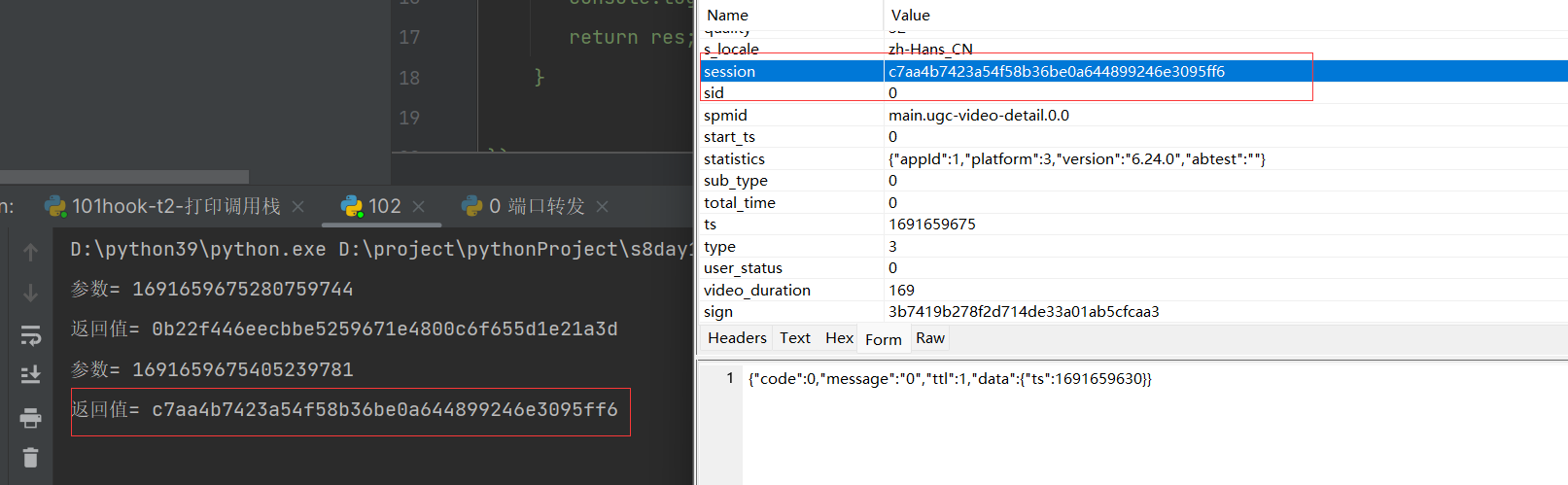

发现E.t()为空
参数= 1691659675405239781
返回值= c7aa4b7423a54f58b36be0a644899246e3095ff6
'''

image-20240517175832447

1
2
3
4
5
6
7
8
9
10
import hashlib

arg0 = "1691659675405239781"

hash_object = hashlib.sha1()
hash_object.update(arg0.encode('utf-8'))
arg7 = hash_object.hexdigest()
print(arg7)
# 返回值= c7aa4b7423a54f58b36be0a644899246e3095ff6
# c7aa4b7423a54f58b36be0a644899246e3095ff6

3.4 python生成session

1
2
3
4
5
6
7
8
9
import hashlib
import time
import random
# arg0 = "1691659675405239781"
arg0=str(int(time.time() * 1000)) + str(random.randint(1, 1000000))
hash_object = hashlib.sha1()
hash_object.update(arg0.encode('utf-8'))
arg7 = hash_object.hexdigest()
print(arg7)

4 破解sign

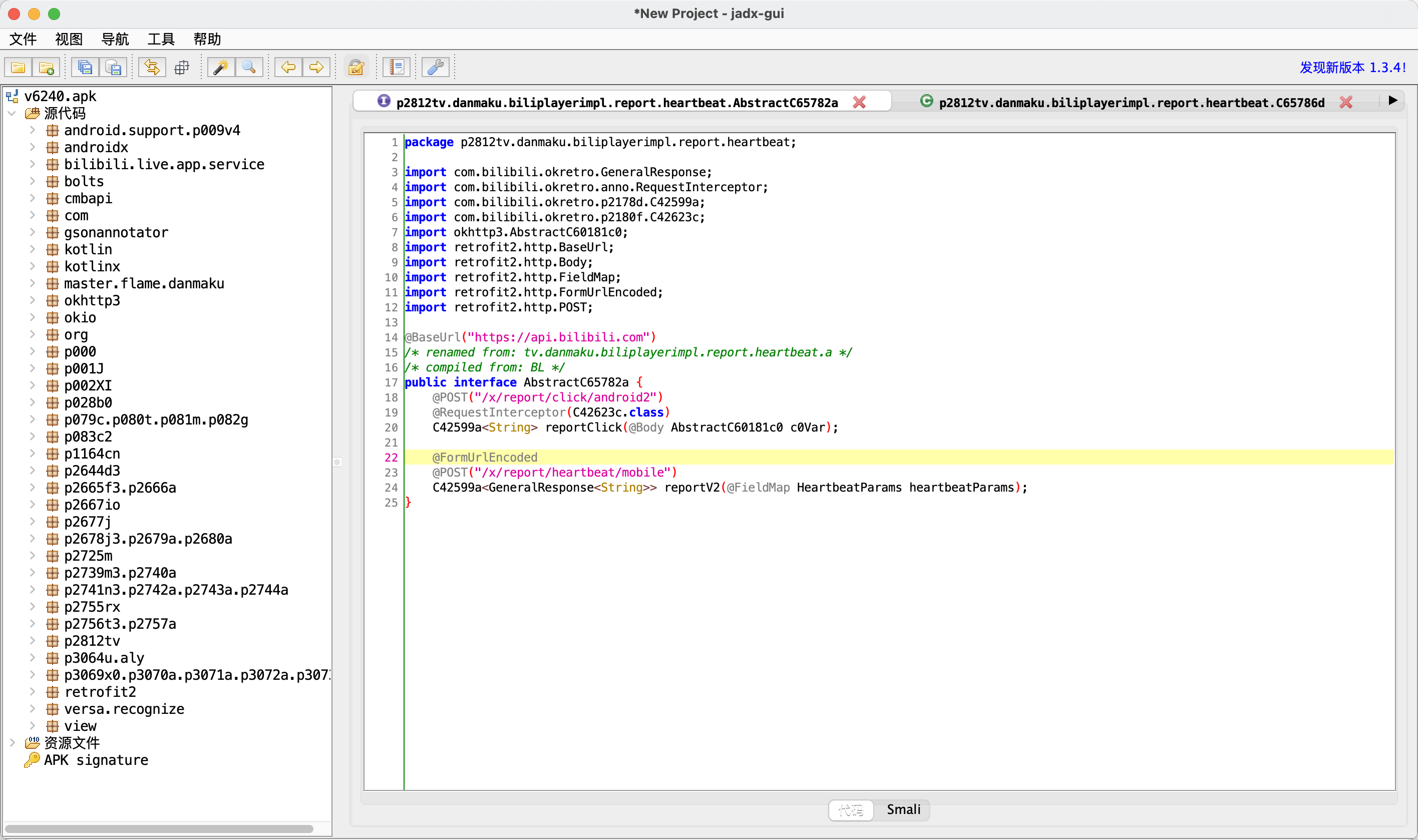

image-20240517175840723

image-20240517175848461

没发现参数，怎么办？

  • 搜索：sign sign= “sign” “sign=”
  • 硬核分析 + Hook验证
1
2
3
4
5
6
7
8
9
10
11
#1 按照 刚刚破解session的思路找sign找不到
	-我们猜：把前面一大串明文，用某种加密方式加了密，拼成了sign
    -根据它的格式：md5---》大胆去试--》如果你加密后的，跟抓包抓到的发现一样，都不用破，直接用
    	-当前这个案例确实是md5，但是有盐

# 2 按照 刚刚破解session的思路
	-1 拦截器中
    -2 使用so文件得到的

# 3 全局搜索：sign   sign=  "sign"  "sign="
# 4 硬核分析+hook验证方式

4.1 搜索方案破解sign

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

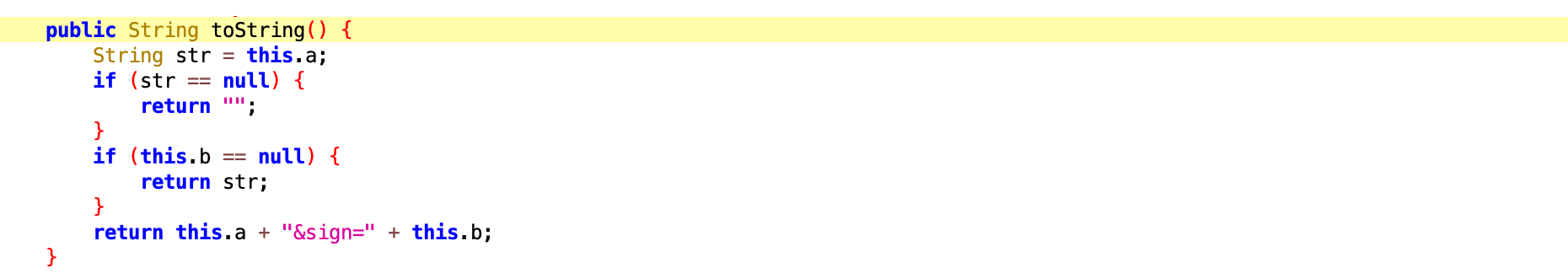

# 1 全局搜 &sign= 定位到位置---》没那么好找---》猜+hook验证
  public String toString() {
        String str = this.a;
        if (str == null) {
            return "";
        }
        if (this.b == null) {
            return str;
        }
        return this.a + "&sign=" + this.b;
    }


# 2 hook打印toString的调用栈--》看谁调用了我
import frida
import sys
from frida.core import Device
rdev = frida.get_remote_device()

# session = rdev.attach("tv.danmaku.bili")
session = rdev.attach("哔哩哔哩")

scr = """
Java.perform(function () {
    var SignedQuery = Java.use("com.bilibili.nativelibrary.SignedQuery");

    SignedQuery.toString.implementation = function(){
       var res = this.toString();
       console.log(res);
       console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
       return res;
    }

});
"""
script = session.create_script(scr)

script.load()
sys.stdin.read()

# 3 调用toString调用栈
	at com.bilibili.nativelibrary.SignedQuery.toString(Native Method)
	at com.bilibili.okretro.f.a.c(BL:16)
	at com.bilibili.okretro.f.a.a(BL:6)
	at com.bilibili.okretro.d.a.execute(BL:24)
	at com.bilibili.okretro.d.a$a.run(BL:2)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
	at java.lang.Thread.run(Thread.java:923)

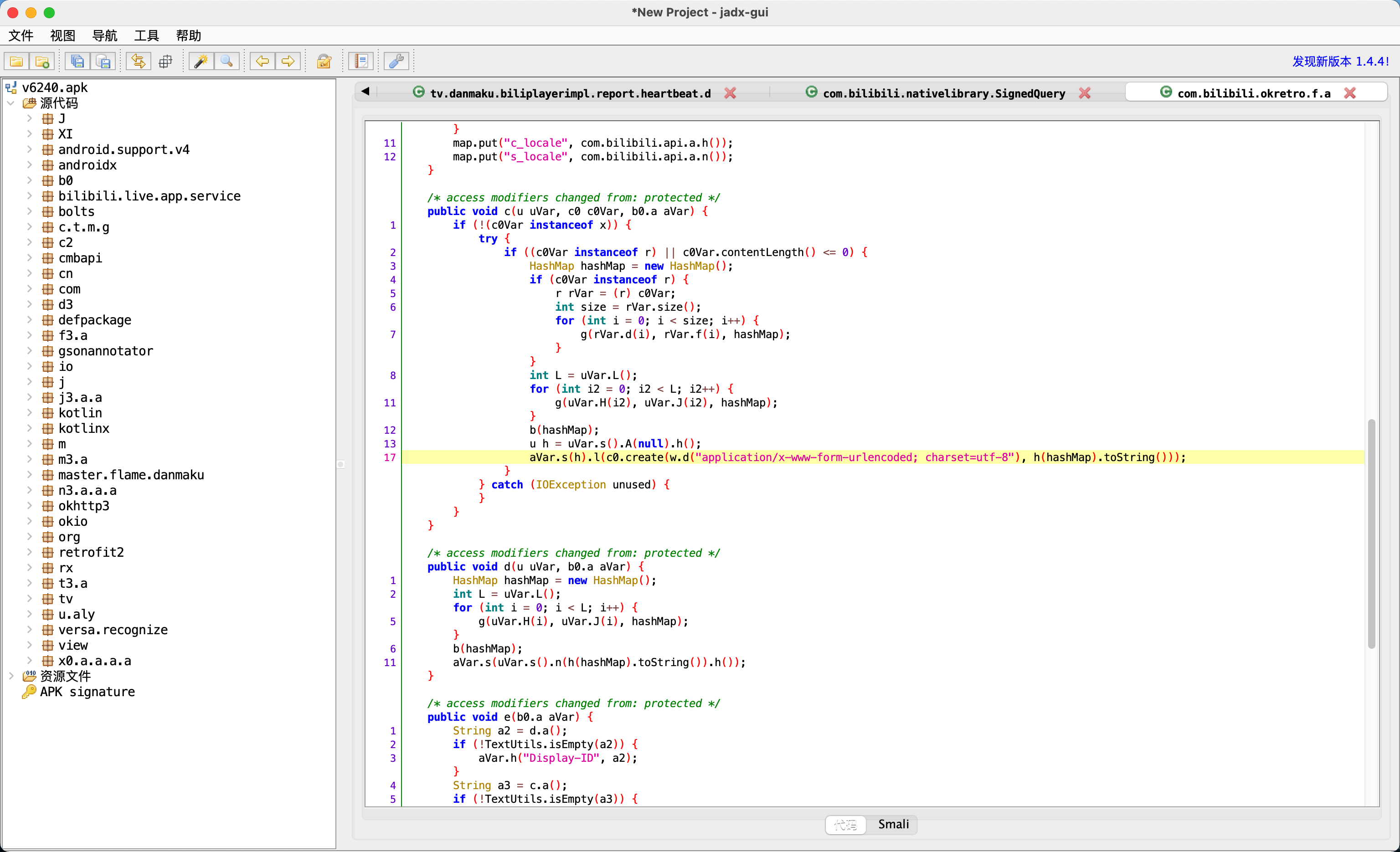

# 4 com.bilibili.okretro.f.a类下的c方法调用了toString
public void c(u uVar, c0 c0Var, b0.a aVar) {

     aVar.s(h).l(c0.create(w.d("application/x-www-form-urlencoded; charset=utf-8"), h(hashMap).toString())); # 在这里调用了
        } catch (IOException unused) {
        }
    }


# 5 查看h 是什么，传入了一个 hashMap ---》就有如下的key和value
actual_played_time=0&aid=305182753&appkey=1d8b6e7d45233436&auto_play=0&build=6240300&c_locale=zh-Hans_CN&channel=xxl_gdt_wm_253&cid=894984613&epid=0&epid_status=&from=2&from_spmid=main.ugc-video-detail.0.0&last_play_progress_time=0&list_play_time=0&max_play_progress_time=0&mid=0&miniplayer_play_time=0&mobi_app=android&network_type=1&paused_time=0&platform=android&play_status=0&play_type=1&played_time=0&quality=32&s_locale=zh-Hans_CN&session=14d9bcae31742c05158c4cabd04af086cbd71542&sid=0&spmid=main.ugc-video-detail.0.0&start_ts=0&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.24.0%22%2C%22abtest%22%3A%22%22%7D&sub_type=0&total_time=0&ts=1692276394&type=3&user_status=0&video_duration=139

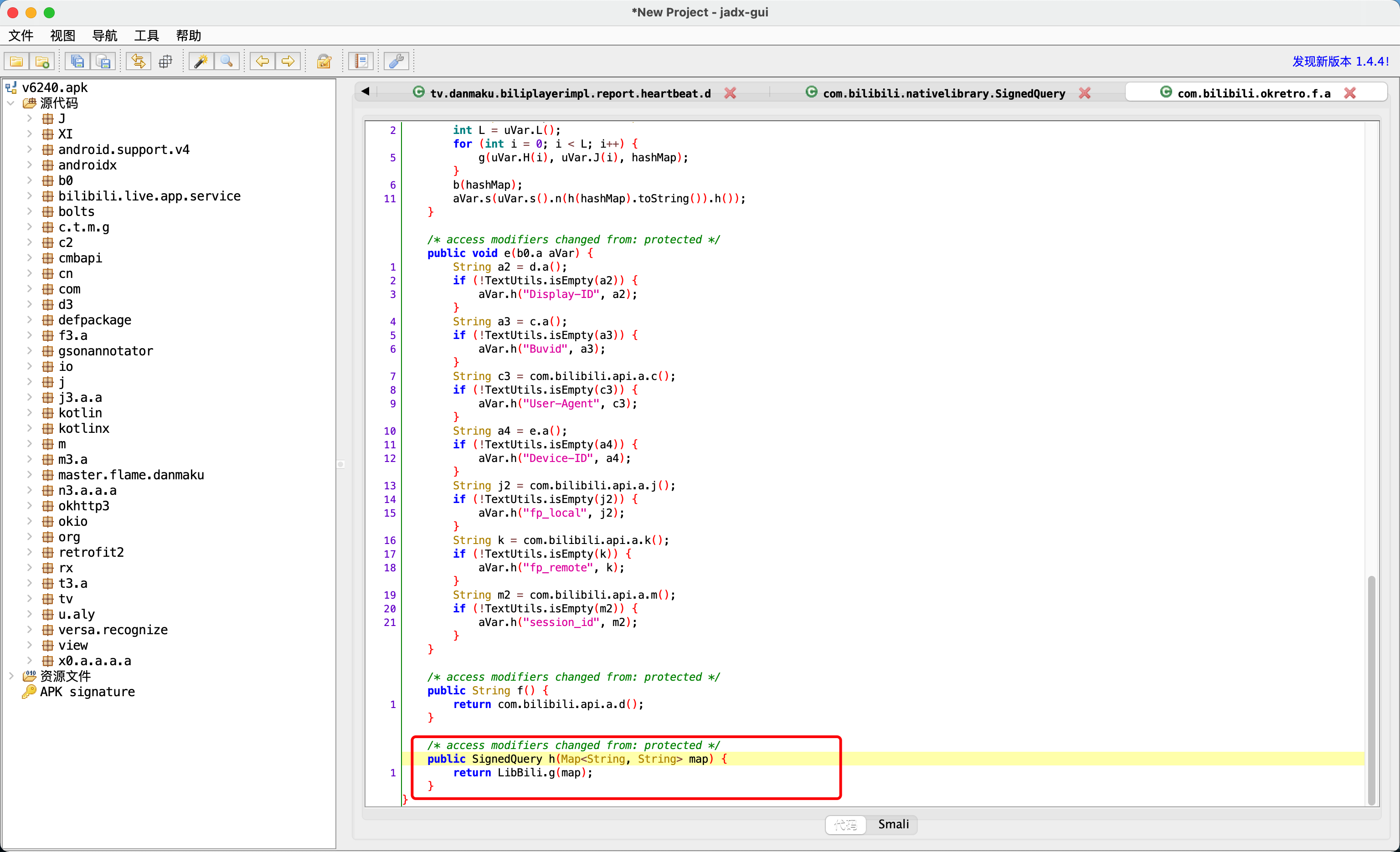

#6 找到h方法
  public SignedQuery h(Map<String, String> map) {
        return LibBili.g(map);
    }

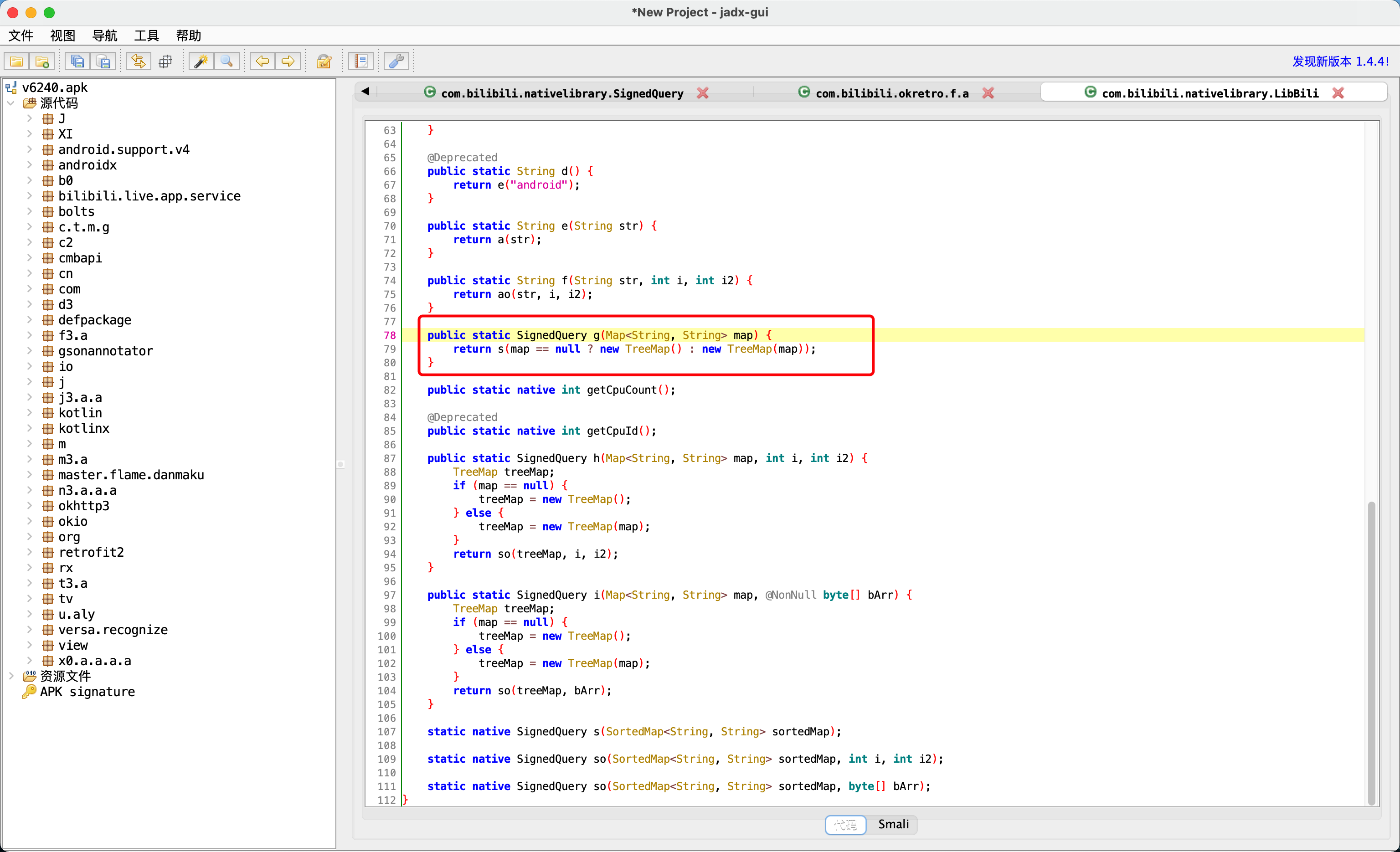

# 7 LibBili.g(map) 代码如下
public static SignedQuery g(Map<String, String> map) {
    return s(map == null ? new TreeMap() : new TreeMap(map));
}

# 8 找到s 是个jni的方法，返回值是SignedQuery，传入了有序的map---》返回值就是sign的加密串
static native SignedQuery s(SortedMap<String, String> sortedMap);

# 9 sign的加密在so层
static {
        com.getkeepsafe.relinker.c.c("bili");
    }
# 10 找so文件  libbili.so---->s方法

image-20240517175903638

image-20240517175913290

image-20240517175921164

image-20240517175952123

此处，可以hook这个toString，看看谁调用了他。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
import frida
import sys
from frida.core import Device
rdev = frida.get_remote_device()

# session = rdev.attach("tv.danmaku.bili")
session = rdev.attach("哔哩哔哩")

scr = """
Java.perform(function () {
    var SignedQuery = Java.use("com.bilibili.nativelibrary.SignedQuery");

    SignedQuery.toString.implementation = function(){
       var res = this.toString();
       console.log(res);
       console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
       return res;
    }

});
"""
script = session.create_script(scr)

script.load()
sys.stdin.read()
1
2
3
4
5
6
7
8
9
10
11
actual_played_time=2&aid=899864170&appkey=1d8b6e7d45233436&auto_play=0&build=6240300&c_locale=zh_CN&channel=xxl_gdt_wm_253&cid=813668375&epid=0&epid_status=&from=6&from_spmid=ad.tianma.tm-recommendation-card.0&last_play_progress_time=2&list_play_time=0&max_play_progress_time=2&mid=0&miniplayer_play_time=0&mobi_app=android&network_type=1&paused_time=4&platform=android&play_status=0&play_type=1&played_time=2&quality=16&s_locale=zh_CN&session=709a969a775b1bff4e5141b7d74e824b89ae0393&sid=0&spmid=main.ugc-video-detail.0.0&start_ts=1661414921&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.24.0%22%2C%22abtest%22%3A%22%22%7D&sub_type=0&total_time=6&ts=1661414926&type=3&user_status=0&video_duration=279&sign=7805f5c5a4099632cd392ef686227ff4

java.lang.Throwable
	at com.bilibili.nativelibrary.SignedQuery.toString(Native Method)
	at com.bilibili.okretro.f.a.c(BL:16)
	at com.bilibili.okretro.f.a.a(BL:6)
	at com.bilibili.okretro.d.a.execute(BL:24)
	at com.bilibili.okretro.d.a$a.run(BL:2)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1113)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:588)
	at java.lang.Thread.run(Thread.java:818)

image-20240517180004077

image-20240517180012544

image-20240517180023053

image-20240517180030130

4.2 硬核分析破解sign–NewStringUTF

4.2.1 硬核分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# 分析
- HeartbeatParams没有sign
- 搜索sign：sign=   &sign=   &sign
- 假设sign参数没有搜到，怎么办？【sign的算法不在java层，jni开发】
    - jni开发
       【Java业务】        【Java类+native方法】    JNI                  【C函数】
        String            jstring ->  转换  -> C中的字符串
        String            jstring <-  转换  <- C中的字符串
                                                                                sign=12sdfsdfsdf
       jstring <-  转换     <- sign asdfasdfasdf
                                                                                asdfasdfasdfasdf
       jstring                 NewStringUTF(env,C字符串)
- 通用脚本
  Hook底层的NewStringUTF方法，读取第二个参数，筛选：
     - 参数 包含sign  -> 输出 + 调用栈
     - 参数 包含固定的字符串
     - 参数 包含长度  -> 输出 + 调用栈

4.2.2 通用hook–NewStringUTF

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
# 后期任何app，都可以使用这个代码--》hook--so返回的字符串

//1 加载安卓手机底层包，系统自带的库，我们hook的NewStringUTF在这个包中
var symbols = Module.enumerateSymbolsSync("libart.so");
//2 定义一个变量，用来接收一会找到的NewStringUTF的地址
var addrNewStringUTF = null;
//3 循环找出libart.so中所有成员，匹配是NewStringUTF的函数，取出地址，赋值给上面的变量
for (var i = 0; i < symbols.length; i++) {
    //3.1 取出libart.so的一个个方法对象
    var symbol = symbols[i];
    //3.2 判断方法对象的名字是不是包含 NewStringUTF和CheckJNI---》因为在真正底层，函数名不叫NewStringUTF，前后有别的字符串
    // 实际它真正的名字：asdfa_NewStringUTF_dadsfasfd
    if (symbol.name.indexOf("NewStringUTF") >= 0 && symbol.name.indexOf("CheckJNI") < 0) {
        // 3.3 找到后，把地址赋值个上面的变量
        addrNewStringUTF = symbol.address;
        // 3.4 控制台打印一下
        console.log("NewStringUTF is at ", symbol.address, symbol.name);
        break
    }
}
// 4 如果不为空，我们开始hook它(通过地址hook，有onEnter和onExit，所有的参数都给了args，通过位置取到每个参数)
if (addrNewStringUTF != null) {
    Interceptor.attach(addrNewStringUTF, {
        onEnter: function (args) {
            // 4.1 取出NewStringUTF传入的第一个参数
            var c_string = args[1];
            // 4.2 第一个参数是c的字符串，我们把它转一下，变成真正的字符串
            var dataString = c_string.readCString();
            // 4.3 改字符串不为空，且长度为32，我们输出一下，并且打印出它的调用栈
            if (dataString) {
                if (dataString.length === 32) {
                    console.log(dataString);
                    // 4.4 读取当前在执行那个so文件,及so文件中的地址
                    console.log(Thread.backtrace(this.context, Backtracer.ACCURATE).map(DebugSymbol.fromAddress).join('\n') + '\n');
                    // 4.5 打印调用栈
                    console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
                }
            }

        }
    });
}



/*
fc32f2916a580c712018508d8bda2535
java.lang.Throwable
	at com.bilibili.nativelibrary.LibBili.s(Native Method)
	at com.bilibili.nativelibrary.LibBili.g(BL:1)
	at com.bilibili.okretro.f.a.h(BL:1)
	at com.bilibili.okretro.f.a.c(BL:14)
	at com.bilibili.okretro.f.a.a(BL:6)
	at com.bilibili.okretro.d.a.execute(BL:24)
	at com.bilibili.okretro.d.a$a.run(BL:2)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
	at java.lang.Thread.run(Thread.java:923)
*/

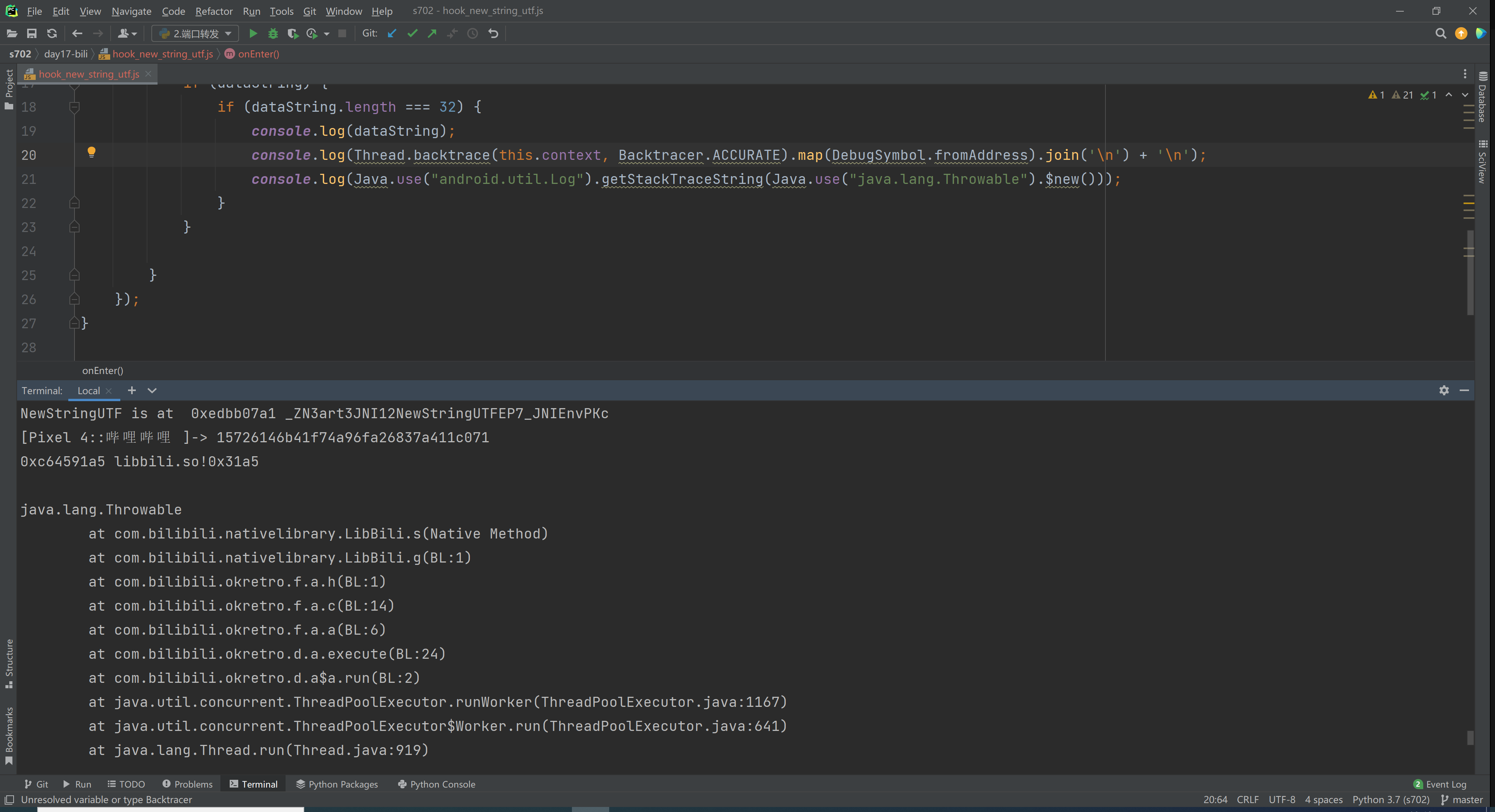

// frida -UF  -l  hook_new_string_utf.js -o v1.txt

image-20240517180044933

4.2.3 打印调用栈后继续分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

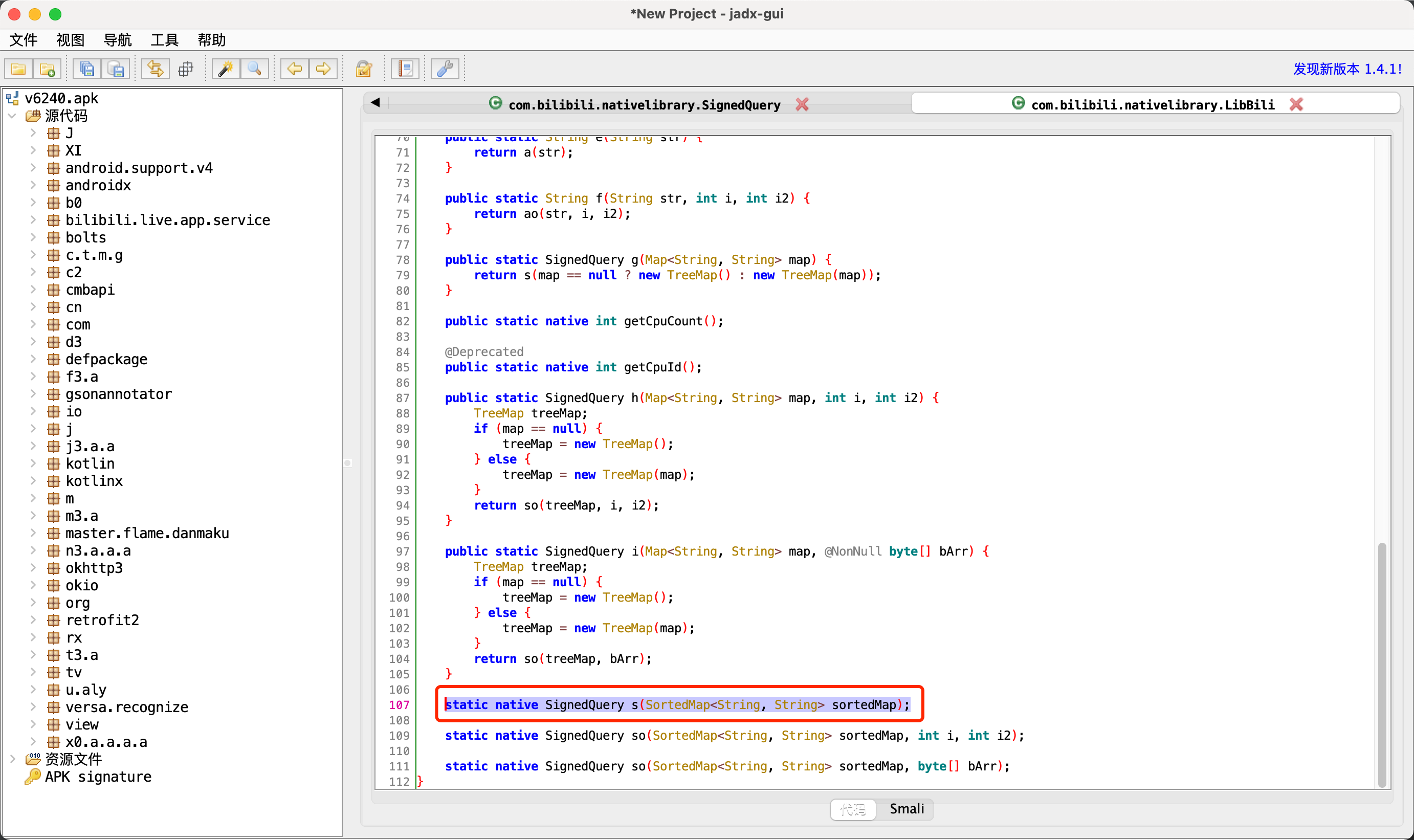

#1  搜索：com.bilibili.nativelibrary.LibBili 类下的 s 方法
static native SignedQuery s(SortedMap<String, String> sortedMap);

# 2 返回值是：SignedQuery 的对象--》看类内部有那些方法
public final class SignedQuery {
    public final String a;
    public final String b;
    # 类实例化的时候，传入str：之前的明文   和   str2：加密后的
    # 这个类的构造方法---》是在so中调用的---》c语言调用的
    public SignedQuery(String str, String str2) {
        this.a = str;
        this.b = str2;
    }
    public String toString() {
        String str = this.a;
        if (str == null) {
            return "";
        }
        if (this.b == null) {
            return str;
        }
        return this.a + "&sign=" + this.b;
    }
}

# 3 我们知道了通过调用s，返回了sign加密串，我们hook一下s查看---》传入的参数和返回值
import frida
import sys

# 连接手机设备
rdev = frida.get_remote_device()

session = rdev.attach("哔哩哔哩")

scr = """
Java.perform(function () {
    var LibBili = Java.use("com.bilibili.nativelibrary.LibBili");
    var TreeMap = Java.use("java.util.TreeMap");

    LibBili.s.implementation = function(map){
        console.log("--------------------------");
       console.log("map=",JSON.stringify(map));
       var obj = Java.cast(map,TreeMap);
       console.log("map=",obj.toString());

       var res = this.s(map);
       console.log("返回值=",res.toString());
       return res;
    }
});
"""

script = session.create_script(scr)


def on_message(message, data):
    print(message, data)


script.on("message", on_message)

script.load()
sys.stdin.read()


# 4 hook结果我们发现，
	#s传入的值是：actual_played_time=0&channel=xxl_gdt_wm_253...
    # 返回的值是：actual_played_time=0&channel=xxl_gdt_wm_253&sign=加密串


# 5 破解so文件：libbili.so
      static {
            com.getkeepsafe.relinker.c.c("bili");
        }

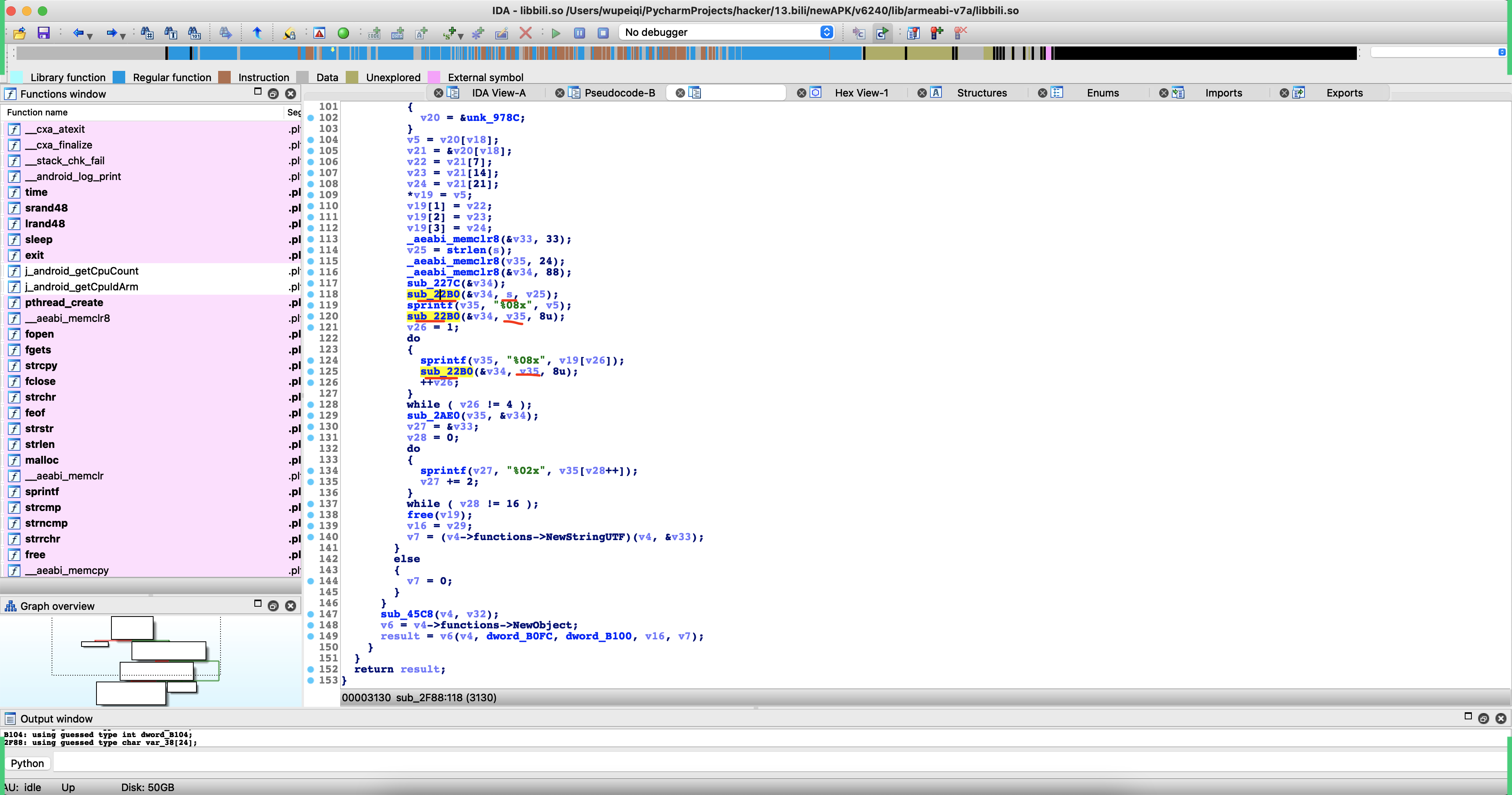

4.3 s的实现

4.3.1 s实现过程

  • 静态注册，直接用ida反编译，看导出函数就行。

  • 动态注册

    • 在 jni_onload 方法中寻找RegisterNatives

      1
      (*env)->RegisterNatives(env, clazz, gMethods, 1);

    • RegisterNatives不好找或找不到咋办？利用libart.so库。

apk是将Java代码打包后的包，解压后发现内部都是一大堆的dex文件（代码）。

安卓手机上都是有一个虚拟机，负责读取dex代码转换成机器码去执行，除此以外，也包括：垃圾回收、Java本地方法调用（JNI）、即时编译（JIT）等。

  • 安卓4.2之前：DVM(Dalvik VM）。
  • 安卓4.2之后：DVM（默认）、ART(Android Runingtime)共存。
  • 安卓5.0之后：ART。

关于两种虚拟机：

  • DVM，每次运行应用的时候，实时将字节码转化为机器码，再运行程序。【基于libdvm.so库】
  • ART，在安装应用的时候，就将应用的字节码转换为机器码，保存在手机里。每次运行应用的时候，无需实时转换，直接使用转换好的机器码。【基于libart.so库】

在JNI在进行动态注册时执行的 RegisterNatives 方法，内部会调用libart.so库。

基于 frida+真机 中的模块来寻找。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// 列举 libart.so 中的所有导出函数（成员列表）
var symbols = Module.enumerateSymbolsSync("libart.so");

// 获取 RegisterNatives 函数的内存地址，并赋值给addrRegisterNatives。
var addrRegisterNatives = null;

for (var i = 0; i < symbols.length; i++) {
    var symbol = symbols[i];

    console.log(symbol.name)
    //_ZN3art3JNI15RegisterNativesEP7_JNIEnvP7_jclassPK15JNINativeMethodi
    if (symbol.name.indexOf("art") >= 0 &&
        symbol.name.indexOf("JNI") >= 0 &&
        symbol.name.indexOf("RegisterNatives") >= 0 &&
        symbol.name.indexOf("CheckJNI") < 0) {

        addrRegisterNatives = symbol.address;
        console.log("RegisterNatives is at ", symbol.address, symbol.name);
    }
}

如果我们知道了底层RegisterNatives的内存地址，我们可以直接Hook这个RegisterNatives函数。

  • JNI调用： RegisterNatives(env, clazz, gMethods, 1 )
  • libart.so中的RegisterNatives函数： RegisterNatives(env, clazz, gMethods, 1 )

如果我知道了一个函数的内存地址，如何对他进行Hook呢？

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
typedef struct {
    const char* name;
    const char* signature;
    void*       fnPtr;
} JNINativeMethod;

static JNINativeMethod gMethods[] = {
        {"add", "(II)I", (void *) plus}, => JNINativeMethod
        {"add", "(II)I", (void *) plus},
        {"add", "(II)I", (void *) plus},
};

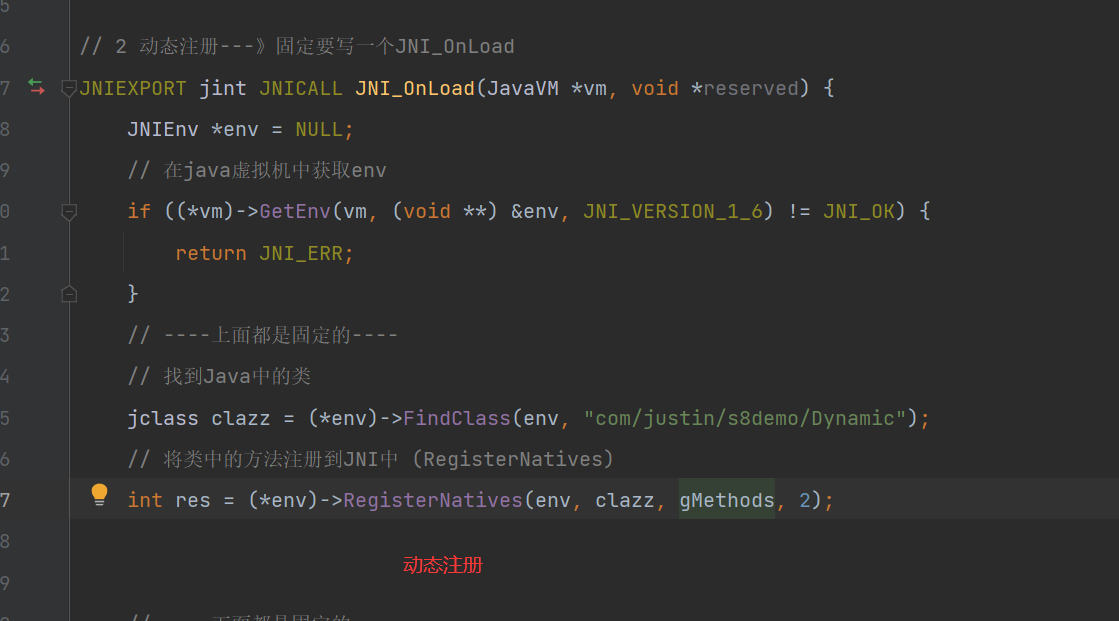

JNIEXPORT jint JNICALL JNI_OnLoad(JavaVM *vm, void *reserved) {

    JNIEnv *env = NULL;

    // 在java虚拟机中获取env
    if ((*vm)->GetEnv(vm, (void **) &env, JNI_VERSION_1_6) != JNI_OK) {
        return JNI_ERR;
    }

    // 找到Java中的类
    jclass clazz = (*env)->FindClass(env, "com/nb/s4dingning/DynamicUtils");

    // 将类中的方法注册到JNI中 (RegisterNatives)
    int res = (*env)->RegisterNatives(env, clazz, gMethods, 3);
    if (res < 0) {
        return JNI_ERR;
    }

    return JNI_VERSION_1_6;
}
1
2
3
4
5
6
7
8
9
10
11
typedef struct {
    const char* name;
    const char* signature;
    void*       fnPtr;
} JNINativeMethod;

static JNINativeMethod gMethods[] = {
        {"add", "(III)I", (void *) plus}, => JNINativeMethod
        {"add", "(II)I", (void *) plus},
        {"add", "(II)I", (void *) plus},
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Interceptor.attach(addrRegisterNatives函数的内存地址, {
    onEnter: function (args) {
        var env = args[0];        // jni对象
        var java_class = args[1]; // 类
        var class_name = Java.vm.tryGetEnv().getClassName(java_class);

        // 只有类名为com.bilibili.nativelibrary.LibBili，才打印输出
        var taget_class = "com.bilibili.nativelibrary.LibBili";

        if(class_name === taget_class){
            console.log("\n[RegisterNatives] method_count:", args[3]);

            // args[2] 就是动态注册的对应关系。
            // ptr是new NativePointer(s) 的缩写。(C语言中的指针)
            var methods_ptr = ptr(args[2]);
            var method_count = parseInt(args[3]);

            for (var i = 0; i < method_count; i++) {
                // Java中函数名字的
                var name_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3));
                // 参数和返回值类型
                var sig_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3 + Process.pointerSize));
                // C中的函数内存地址
                var fnPtr_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3 + Process.pointerSize * 2));

                var name = Memory.readCString(name_ptr);
                var sig = Memory.readCString(sig_ptr);
                var find_module = Process.findModuleByAddress(fnPtr_ptr);
                var offset = ptr(fnPtr_ptr).sub(find_module.base) // fnPtr_ptr - 模块基地址
                console.log("name:", name, "module_name:", find_module.name, "offset:", offset);
        	}
        }
    }
});

完整脚本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
function hook_RegisterNatives() {
    var symbols = Module.enumerateSymbolsSync("libart.so");
    var addrRegisterNatives = null;
    for (var i = 0; i < symbols.length; i++) {
        var symbol = symbols[i];

        // _ZN3art3JNI15RegisterNativesEP7_JNIEnvP7_jclassPK15JNINativeMethodi
        if (symbol.name.indexOf("art") >= 0 &&
            symbol.name.indexOf("JNI") >= 0 &&
            symbol.name.indexOf("RegisterNatives") >= 0 &&
            symbol.name.indexOf("CheckJNI") < 0) {
            addrRegisterNatives = symbol.address;
            console.log("RegisterNatives is at ", symbol.address, symbol.name);
        }
    }

    if (addrRegisterNatives != null) {
        Interceptor.attach(addrRegisterNatives, {
            onEnter: function (args) {
                var env = args[0];
                var java_class = args[1];
                var class_name = Java.vm.tryGetEnv().getClassName(java_class);
                //console.log(class_name);
                // 只有类名为com.bilibili.nativelibrary.LibBili，才打印输出
                var taget_class = "com.bilibili.nativelibrary.LibBili";
                if (class_name === taget_class) {
                    console.log("\n[RegisterNatives] method_count:", args[3]);
                    var methods_ptr = ptr(args[2]);
                    var method_count = parseInt(args[3]);

                    for (var i = 0; i < method_count; i++) {
                        // Java中函数名字的
                        var name_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3));
                        // 参数和返回值类型
                        var sig_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3 + Process.pointerSize));
                        // C中的函数指针
                        var fnPtr_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3 + Process.pointerSize * 2));

                        var name = Memory.readCString(name_ptr); // 读取java中函数名
                        var sig = Memory.readCString(sig_ptr); // 参数和返回值类型
                        var find_module = Process.findModuleByAddress(fnPtr_ptr); // 根据C中函数指针获取模块

                        var offset = ptr(fnPtr_ptr).sub(find_module.base) // fnPtr_ptr - 模块基地址
                        // console.log("[RegisterNatives] java_class:", class_name);
                        console.log("name:", name, "sig:", sig, "module_name:", find_module.name, "offset:", offset);

                    }
                }
            }
        });
    }
}

setImmediate(hook_RegisterNatives);

上述脚本的执行有两点注意：

  • 启动时间问题，自动启动app+hook

    1
    frida -U  -f tv.danmaku.bili -l native.js

  • 去真机hook

输出：

1
2
3
4
5
6
7
8
name: a module_name: libbili.so offset: 0x1c7d
name: ao module_name: libbili.so offset: 0x1c83
name: b module_name: libbili.so offset: 0x1c91
name: s module_name: libbili.so offset: 0x1c97
name: so module_name: libbili.so offset: 0x1c9d
name: so module_name: libbili.so offset: 0x1cab
name: getCpuCount module_name: libbili.so offset: 0x1cb3
name: getCpuId module_name: libbili.so offset: 0x1cb7
1
2
3
4
5
6
7
8
9
10
[Redmi 8A::tv.danmaku.bili]->
[RegisterNatives] method_count: 0x8
name: a module_name: libbili.so offset: 0x1c7d
name: ao module_name: libbili.so offset: 0x1c83
name: b module_name: libbili.so offset: 0x1c91
name: s module_name: libbili.so offset: 0x1c97
name: so module_name: libbili.so offset: 0x1c9d
name: so module_name: libbili.so offset: 0x1cab
name: getCpuCount module_name: libbili.so offset: 0x1cb3
name: getCpuId module_name: libbili.so offset: 0x1cb7

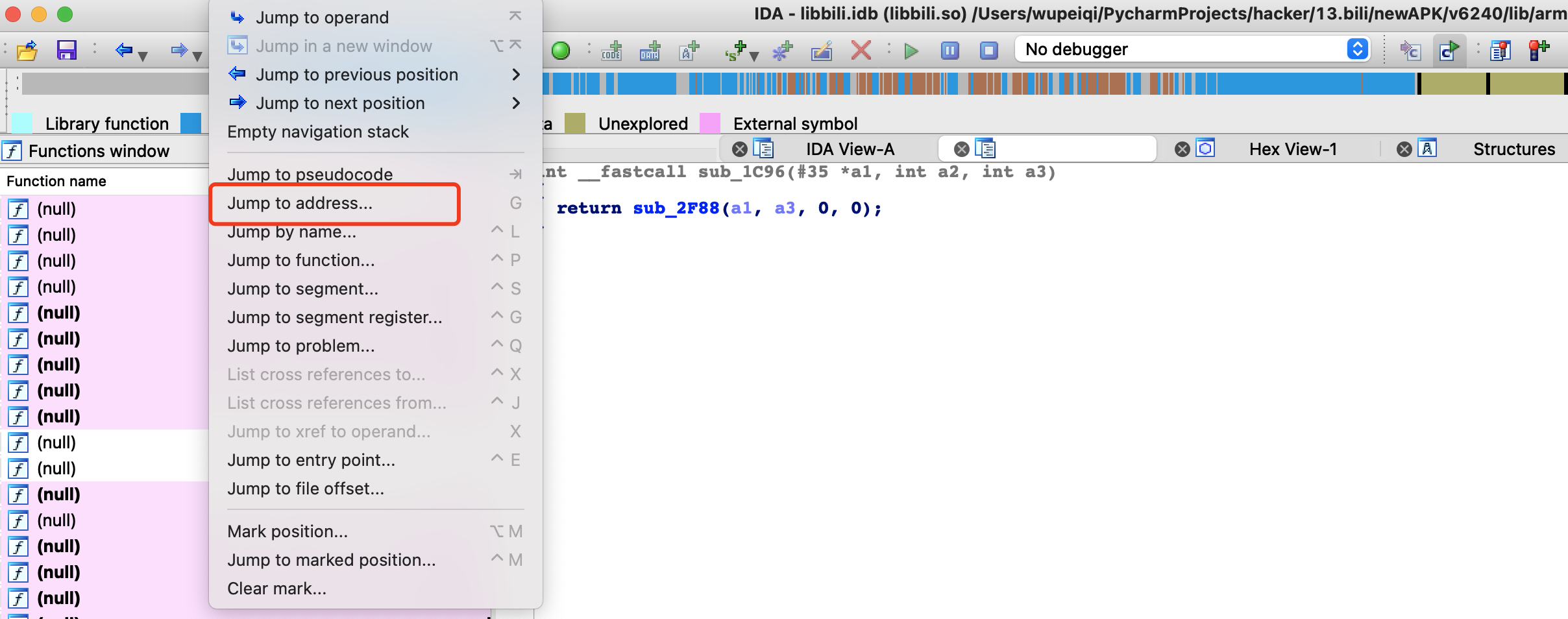

image-20240517180114866

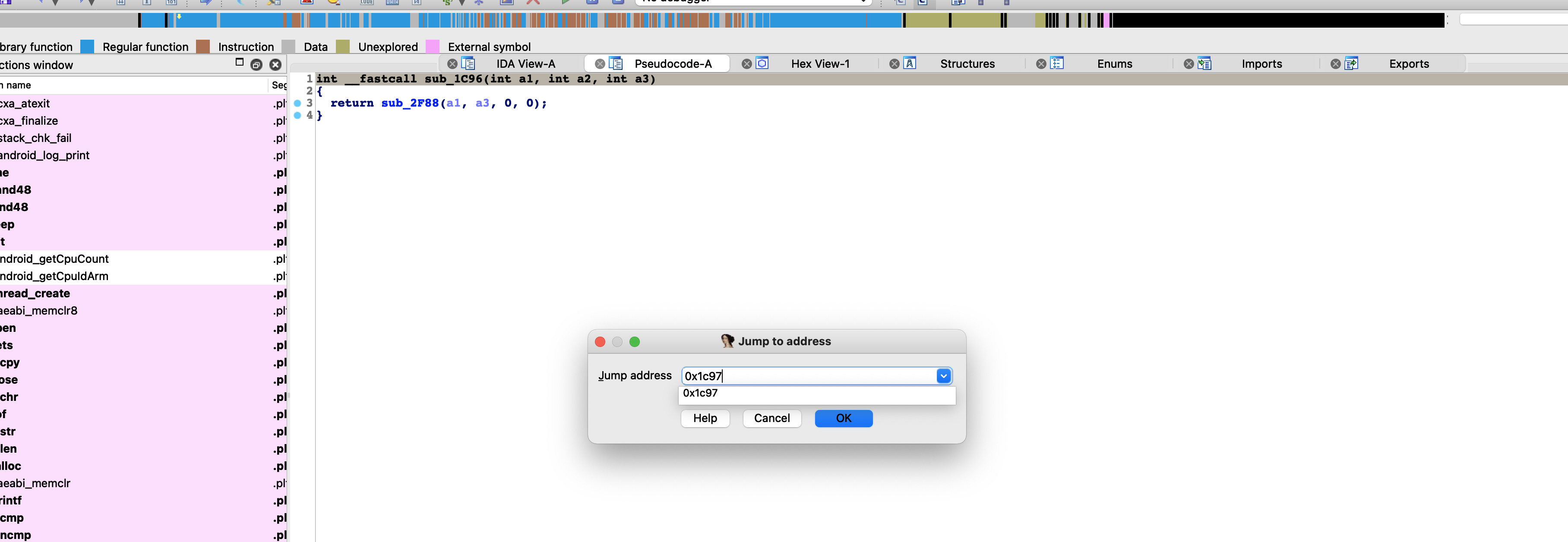

image-20240517180122148

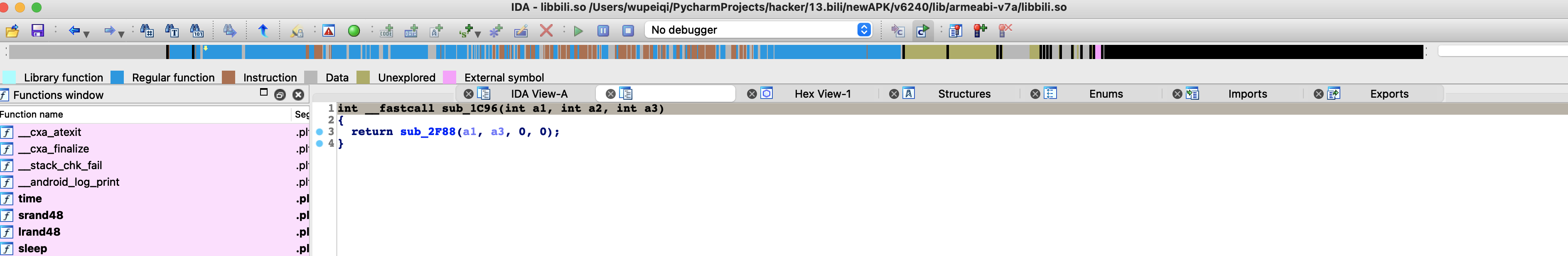

image-20240517180130288

image-20240517180138093

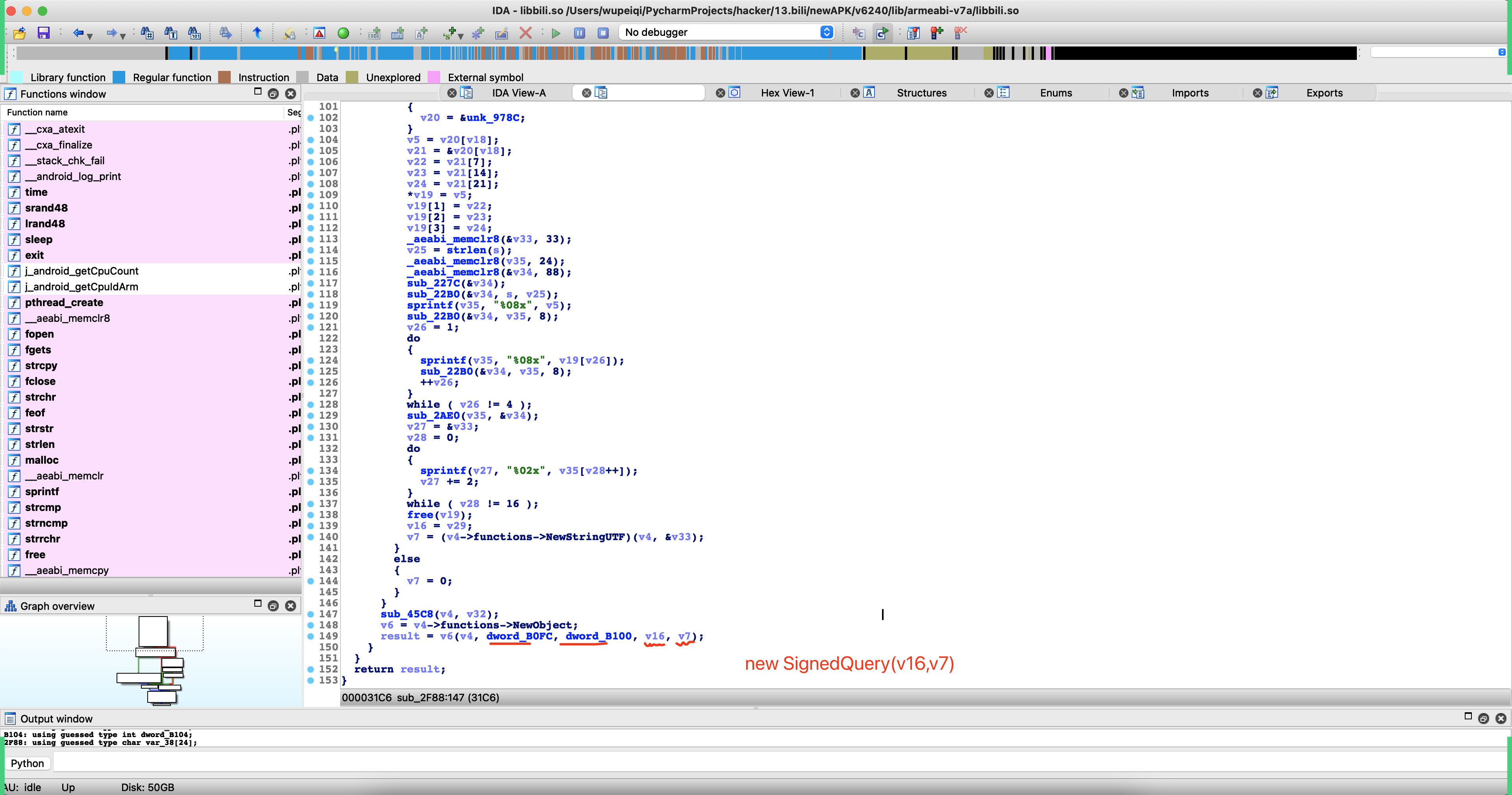

image-20240517180147455

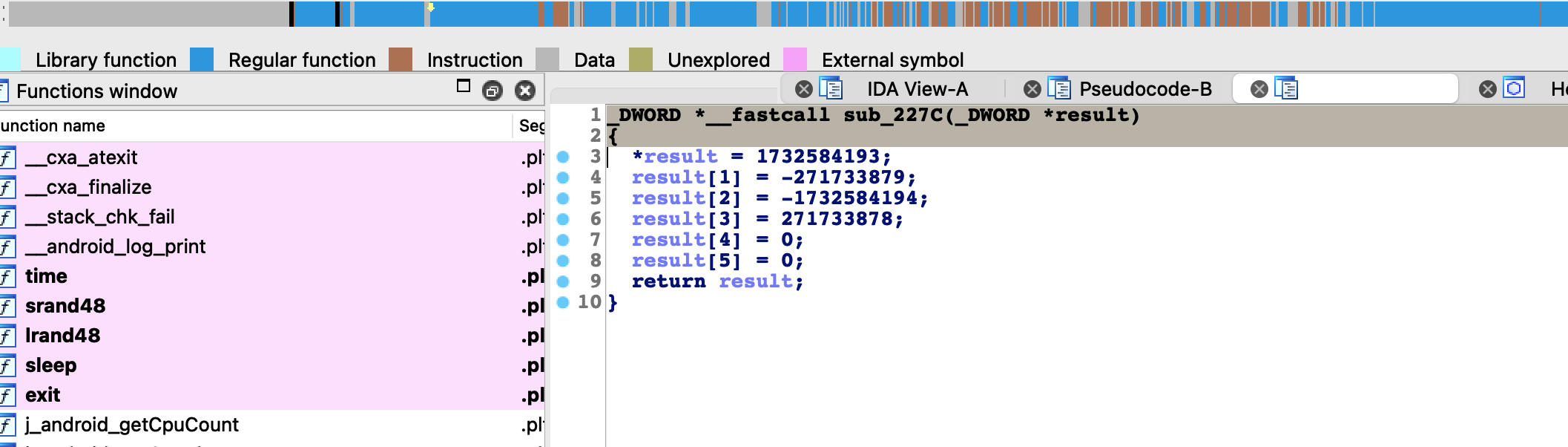

image-20240517180157994

1
2
3
4
5
6
obj = hashlib.md5()
obj.update("xxx".encode('utf-8'))
obj.update("xxx".encode('utf-8'))
obj.update("xxx".encode('utf-8'))
obj.update("xxx".encode('utf-8'))
res = obj.hexdigist()

image-20240517180205672

如果我们能hook sub_22B0 方法，就可以把待加密的明文全都获取到。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
import frida
import sys

rdev = frida.get_remote_device()
# session = rdev.attach("tv.danmaku.bili")
session = rdev.attach("哔哩哔哩")
scr = """
Java.perform(function () {

    var libbili = Module.findBaseAddress("libbili.so");

	var s_func = libbili.add(0x22b0 + 1);
    console.log(s_func);

    Interceptor.attach(s_func, {
        onEnter: function (args) {
            // args[0]
            // args[1]，明文字符串
            // args[2]，明文字符串长度

            console.log("执行update，长度是：",args[2], args[2].toInt32());

            // console.log( hexdump(args[1], {length: args[2].toInt32()})  );
            console.log(args[1].readUtf8String())
        },
        onLeave: function (args) {
            console.log("=======================结束===================");
        }
    });
});
"""
script = session.create_script(scr)
script.load()
sys.stdin.read()

1
2
3
4
5
6
obj = hashlib.md5()
obj.update("xxx".encode('utf-8'))
obj.update("560c52cc".encode('utf-8'))
obj.update("d288fed0".encode('utf-8'))
obj.update("45859ed1".encode('utf-8'))
res = obj.hexdigist()

所以，最终sign签名的加密，在B站中本质：

1
请求参数凭借 + 560c52ccd288fed0d288fed08bffd973 ，然后再整体md5加密
1
2
3
4
ordered_string = "&".join(["{}={}".format(key, param_dict[key]) for key in sorted(param_dict.keys())])
encrypt_string = ordered_string + "560c52ccd288fed045859ed18bffd973"
obj = hashlib.md5(encrypt_string.encode('utf-8'))
sign = obj.hexdigest()
1
2
3
4
5
6
7
8
9
10
11
import hashlib

# actual_played_time=0&aid=851776257&appkey=1d8b6e7d45233436&auto_play=0&build=6240300&c_locale=zh_CN&channel=xxl_gdt_wm_253&cid=516350598&epid=0&epid_status=&from=6&from_spmid=tm.recommend.0.0&last_play_progress_time=0&list_play_time=0&max_play_progress_time=0&mid=0&miniplayer_play_time=0&mobi_app=android&network_type=1&paused_time=0&platform=android&play_status=0&play_type=1&played_time=0&quality=80&s_locale=zh_CN&session=897a6991b1f7489f915e420c9b82136d9c5dec62&sid=0&spmid=main.ugc-video-detail-vertical.0.0&start_ts=0&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.24.0%22%2C%22abtest%22%3A%22%22%7D&sub_type=0&total_time=0&ts=1655220112&type=3&user_status=0&video_duration=232
# &sign=d9c63c9726e438cd0e8ce98f1ca177aa
#       d9c63c9726e438cd0e8ce98f1ca177aa

ordered_string = "actual_played_time=0&aid=851776257&appkey=1d8b6e7d45233436&auto_play=0&build=6240300&c_locale=zh_CN&channel=xxl_gdt_wm_253&cid=516350598&epid=0&epid_status=&from=6&from_spmid=tm.recommend.0.0&last_play_progress_time=0&list_play_time=0&max_play_progress_time=0&mid=0&miniplayer_play_time=0&mobi_app=android&network_type=1&paused_time=0&platform=android&play_status=0&play_type=1&played_time=0&quality=80&s_locale=zh_CN&session=897a6991b1f7489f915e420c9b82136d9c5dec62&sid=0&spmid=main.ugc-video-detail-vertical.0.0&start_ts=0&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.24.0%22%2C%22abtest%22%3A%22%22%7D&sub_type=0&total_time=0&ts=1655220112&type=3&user_status=0&video_duration=232"
encrypt_string = ordered_string + "560c52ccd288fed045859ed18bffd973"
obj = hashlib.md5(encrypt_string.encode('utf-8'))
sign = obj.hexdigest()
print(sign)

4.3.2 s的实现

1
2
3
4
5
6
7
# 1 使用32位的ida打开   libbili.so

# 2 确认动态注册还是静态注册
	-静态注册：java_
    -动态注册：jni_onload---》RegisterNatives(env, clazz, gMethods, 1);

# 3 IDA打开后，发现不好找RegisterNatives

image-20240517180224029

4.3.2.1 如果jni_onload中找不到RegisterNatives的解决方案

1
2
3
4
5
6
7
8
9
10
11
12
13
14
# 1 回顾之前学过的知识
# 因为s函数的返回值是java中的SignedQuery类型，我们之前做jni开发的时候讲过，c中调用java的类中的方法，要通过以下几步

# 1 找到类
jclass cls = (*env)->FindClass(env, "com.bilibili.nativelibrary/SignedQuery");

# 2 找到构造方法，而SignedQuery构造方法要传入两个字符串类型
jmethodID init = (*env)->GetMethodID(env, cls, "<init>", "(Ljava/lang/String;Ljava/lang/String)V");

# 3 执行构造方法，得到对象,传入两个参数：String str, String str2 ，第二个参数是sign的密文
jobject cls_obj = (*env)->NewObject(env, cls, init, (*env)->NewStringUTF(env, "str",'str2'));


# 2 找不到RegisterNatives--》可以hook---》RegisterNatives

4.3.2.2 hook—》RegisterNatives通用脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
function hook_RegisterNatives() {
    //1 加载安卓手机底层包，系统自带的库，我们hook的RegisterNatives在这个包中
    var symbols = Module.enumerateSymbolsSync("libart.so");
    //2 定义一个变量，用来接收一会找到的addrRegisterNatives的地址
    var addrRegisterNatives = null;
    // 3 循环找到RegisterNatives的地址，赋值给变量
    //注意：此处可能找出多个RegisterNatives的地址，由于咱们是for循环，会把之前的覆盖掉，所有如果hook没反应，尝试加break，使用第一个找到的
    for (var i = 0; i < symbols.length; i++) {
        var symbol = symbols[i];
        if (symbol.name.indexOf("art") >= 0 &&
            symbol.name.indexOf("JNI") >= 0 &&
            symbol.name.indexOf("RegisterNatives") >= 0 &&
            symbol.name.indexOf("CheckJNI") < 0) {
            addrRegisterNatives = symbol.address;
            console.log("RegisterNatives is at ", symbol.address, symbol.name);
            break
        }

    }
    // 4 找到后开始hook
    if (addrRegisterNatives != null) {
        Interceptor.attach(addrRegisterNatives, {
            // 4.1 当进入RegisterNatives时执行
            // RegisterNatives(env, 类型, Java和C的对应关系,个数)
            onEnter: function (args) {
                // 4.2 第0个参数是env
                var env = args[0];
                // 4.3 第1个参数是类型
                var java_class = args[1];
                 // 4.4 通过类型得到具体的类名
                var class_name = Java.vm.tryGetEnv().getClassName(java_class);
                //console.log(class_name);
                // 只有类名为com.bilibili.nativelibrary.LibBili，才打印输出
                var taget_class = "com.bilibili.nativelibrary.LibBili";
                if (class_name === taget_class) {
                    //4.5  只有类名为com.bilibili.nativelibrary.LibBili，再取出第四个参数
                    console.log("\n[RegisterNatives] method_count:", args[3]);
                    // 4.6 第2个参数是：Java和C的对应关系，我们转成指针
                    /*
                    static JNINativeMethod gMethods[] = {
                            {"add", "(III)I", (void *) plus},
                            {"add", "(II)I", (void *) plus},
                            {"add", "(II)I", (void *) plus},
                    };
                     */
                    var methods_ptr = ptr(args[2]);
                    // 4.7 java和c函数对应关系的个数
                    var method_count = parseInt(args[3]);
                    // 4.8 我们循环这个个数，依次移动指针methods_ptr，通过readPointer，往后读取 {"add", "(III)I", (void *) plus}，依次读出Java中函数名字，签名和C中的函数指针
                    for (var i = 0; i < method_count; i++) {
                        // 4.8.1 读取Java中函数名字的
                        var name_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3));
                        // 4.8.2 读取签名， 参数和返回值类型
                        var sig_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3 + Process.pointerSize));
                        // 4.8.3 读取 C中的函数指针
                        var fnPtr_ptr = Memory.readPointer(methods_ptr.add(i * Process.pointerSize * 3 + Process.pointerSize * 2));

                        // 4.8.4 读取java中函数名 字符串名
                        var name = Memory.readCString(name_ptr);
                        // 4.8.5 参数和返回值类型 字符串名
                        var sig = Memory.readCString(sig_ptr);
                        // 4.5.6 根据C中函数指针获取模块
                        var find_module = Process.findModuleByAddress(fnPtr_ptr); // 根据C中函数指针获取模块


                        // 4.8.7 得到该函数的偏移量：ptr(fnPtr_ptr)函数在内存中的地址   减去   该so文件的基地址(find_module.base)====得到偏移量
                        // 地址：函数在内存中的地址
                        // 偏移量：后期单独打开so文件后，可以根据偏移量 定位到函数位置
                        // 基地址：当前so文件从那个位置开始算地址
                        var offset = ptr(fnPtr_ptr).sub(find_module.base)
                        // console.log("[RegisterNatives] java_class:", class_name);
                        // 4.8.8 输出 函数名      参数和返回值类型    模块    偏移量
                        console.log("name:", name, "sig:", sig, "module_name:", find_module.name, "offset:", offset);

                    }
                }
            }
        });
    }
}

setImmediate(hook_RegisterNatives);

// 以spawn方式运行
// frida -U -f tv.danmaku.bili -l 105.js



/*
[RegisterNatives] method_count: 0x8
name: a sig: (Ljava/lang/String;)Ljava/lang/String; module_name: libbili.so offset: 0x1c7d
name: ao sig: (Ljava/lang/String;II)Ljava/lang/String; module_name: libbili.so offset: 0x1c83
name: b sig: (Ljava/lang/String;)Ljavax/crypto/spec/IvParameterSpec; module_name: libbili.so offset: 0x1c91
// 找到s函数，偏移量是 0x1c97，打开so文件，直接按偏移量，跳转到s函数
name: s sig: (Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery; module_name: libbili.so offset: 0x1c97
name: so sig: (Ljava/util/SortedMap;II)Lcom/bilibili/nativelibrary/SignedQuery; module_name: libbili.so offset: 0x1c9d
name: so sig: (Ljava/util/SortedMap;[B)Lcom/bilibili/nativelibrary/SignedQuery; module_name: libbili.so offset: 0x1cab
name: getCpuCount sig: ()I module_name: libbili.so offset: 0x1cb3
name: getCpuId sig: ()I module_name: libbili.so offset: 0x1cb7

 */

4.3.2.3 通过hook–找到了s对应的c函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
#1  java中的s 对应偏移量是：0x1c97
name: s sig: (Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery; module_name: libbili.so offset: 0x1c97

#2 根据偏移量--》在ida中找到c语言的函数
int __fastcall sub_1C96(int a1, int a2, int a3)
{
  return sub_2F88(a1, a3, 0, 0);
}

# 3 双击
int __fastcall sub_2F88(JNIEnv_ *a1, int a2, int a3, int a4){
     sub_227C(v36);  #  md5加密
     sub_22B0(v36, v32, v27); # update 加盐
     sprintf(v37, "%08x", v22);
     sub_22B0(v36, v37, 8); ## update 加盐
    # 找s
    v17 = a1->functions->NewStringUTF(a1, s); # s是c语言的字符串
    # v16 就是"str",v17就是：'str2'--》就是加密的sign
    return (int)a1->functions->NewObject((JNIEnv *)a1, (jclass)dword_B0FC, (jmethodID)dword_B100, v16, v17);
}

# 4 sub_227C(v36)---》这是md5加密
_DWORD *__fastcall sub_227C(_DWORD *result)
{
  *result = 1732584193;
  result[1] = -271733879;
  result[2] = -1732584194;
  result[3] = 271733878;
  result[4] = 0;
  result[5] = 0;
  return result;
}

# 5 断定，使用md5加密，但是有盐--》固定的
# 6 通过hook  sub_22B0  拿到盐

4.3.2.4 hook–sub_22B0得到md5的盐

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
import frida
import sys

rdev = frida.get_remote_device()
session = rdev.attach("哔哩哔哩")
scr = """
Java.perform(function () {

    var libbili = Module.findBaseAddress("libbili.so");
	// hook sub_22B0函数，通过偏移量找到 偏移量 22B0
	var s_func = libbili.add(0x22b0 + 1); // 32位的so文件都要 +1
    console.log(s_func);

    Interceptor.attach(s_func, {
        onEnter: function (args) {
            // args[0]
            // args[1]，明文字符串
            // args[2]，明文字符串长度

            console.log("执行update，长度是：",args[2], args[2].toInt32());

            // console.log( hexdump(args[1], {length: args[2].toInt32()})  );
            console.log(args[1].readUtf8String())
        },
        onLeave: function (args) {
            console.log("=======================结束===================");
        }
    });
});
"""
script = session.create_script(scr)
script.load()
sys.stdin.read()


'''
通过hook，找到update进去的盐
560c52cc
=======================结束===================
执行update，长度是： 0x8 8
d288fed0
=======================结束===================
执行update，长度是： 0x8 8
45859ed1
=======================结束===================
执行update，长度是： 0x8 8
8bffd973

'''

4.3.2.5 python重写这个过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import hashlib
obj = hashlib.md5()
obj.update("actual_played_time=0&aid=352533984&appkey=1d8b6e7d45233436&auto_play=0&build=6240300&c_locale=zh-Hans_CN&channel=xxl_gdt_wm_253&cid=1025584249&epid=0&epid_status=&from=6&from_spmid=tm.recommend.0.0&last_play_progress_time=0&list_play_time=0&max_play_progress_time=0&mid=0&miniplayer_play_time=0&mobi_app=android&network_type=1&paused_time=0&platform=android&play_status=0&play_type=1&played_time=0&quality=64&s_locale=zh-Hans_CN&session=2526d8482c1436027b62f1e61ecd4ad374d02d8c&sid=0&spmid=main.ugc-video-detail-vertical.0.0&start_ts=0&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.24.0%22%2C%22abtest%22%3A%22%22%7D&sub_type=0&total_time=0&ts=1692283438&type=3&user_status=0&video_duration=73".encode('utf-8'))
obj.update("560c52cc".encode('utf-8'))
obj.update("d288fed0".encode('utf-8'))
obj.update("45859ed1".encode('utf-8'))
obj.update("8bffd973".encode('utf-8'))
res = obj.hexdigest()
print(res)

# 期望结果：73b7c16548f3d366476194cdbbd6f495
#真实结果： 73b7c16548f3d366476194cdbbd6f495


5 代码整合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
import datetime
import uuid
import base64
import hashlib
import time
import requests
import re
import json
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad
from urllib.parse import quote_plus
import string
import random
import time
import hashlib
import ctypes
import urllib3

urllib3.disable_warnings(urllib3.exceptions.InsecureRequestWarning)


class BiliBili(object):
    def __init__(self, aid, bvid, cid, duration, proxies):
        self.aid, self.bvid, self.cid, self.duration = aid, bvid, cid, duration

        self.wifi_mac = self.create_random_mac().upper()
        self.device_id = self.create_device_id(self.wifi_mac)  # did
        self.buvid = self.create_buvid_by_wifi()
        self.session_id = self.create_session_id()

        self.build_brand = "HUAWEI"
        self.build_model = 'Mate 10 Pro'

        self.fp_local = self.create_local(self.buvid, self.build_model, "")
        self.fp_remote = self.create_local(self.buvid, self.build_model, "")

        self.app_first_run_time = str(int(time.time()) - random.randint(0, 24 * 60 * 60))  # fts
        self.ts = str(int(time.time() - 10))

        self.session = requests.Session()
        # self.session.proxies = proxies
        self.start_ts = None
        self.heart_beat_session_id = None

    def create_random_mac(self, sep=":"):
        """ 随机生成mac地址 """
        data_list = []
        for i in range(1, 7):
            part = "".join(random.sample("0123456789ABCDEF", 2))
            data_list.append(part)
        mac = sep.join(data_list)

        return mac

    def create_device_id(self, mac):
        """
        根据mac地址生成 3.device_id
        :param mac: 传入参数的格式是 00:00:00:00:00
        :return:
        """

        def gen_sn():
            return "".join(random.sample("123456789" + string.ascii_lowercase, 10))

        def base64_encrypt(data_string):
            data_bytes = bytearray(data_string.encode('utf-8'))
            data_bytes[0] = data_bytes[0] ^ (len(data_bytes) & 0xFF)
            for i in range(1, len(data_bytes)):
                data_bytes[i] = (data_bytes[i - 1] ^ data_bytes[i]) & 0xFF
            res = base64.encodebytes(bytes(data_bytes))
            return res.strip().strip(b"==").decode('utf-8')

        # 1. 生成mac地址（保证mac中的每个元素是不重复的，例如：0000000000)
        mac_str = mac

        # 2. 去除IP地址中的符号，只保留 48e1e828e02e（变小写）
        mac_str = re.sub("[^0-9A-Fa-f]", "", mac_str)
        mac_str = mac_str.lower()

        # 3. 获取手续序列号
        sn = gen_sn()

        # 4. 拼接并进行base64加密
        total_string = "{}|||{}".format(mac_str, sn)
        return base64_encrypt(total_string)

    def create_buvid_by_wifi(self):
        """
            基于wifi mac地址生成buvid （ B站app中有四种获取buvid的方式：设备ID、wifi mac地址、3.device_id、uuid ）
        """
        md5 = hashlib.md5()
        md5.update(self.wifi_mac.encode('utf-8'))
        v0_1 = md5.hexdigest()
        return "XY{}{}{}{}".format(v0_1[2], v0_1[12], v0_1[22], v0_1).upper()

    def create_session_id(self):
        # return "".join([hex(item)[2:] for item in random.randbytes(4)])
        return "".join([hex(random.randint(1, 255))[2:] for i in range(4)])

    def create_local(self, buvid, phone_model, phone_band):
        """
        fp_local和fp_remote都是用这个算法来生成的，在手机初始化阶段生成 fp_local，
        :param buvid: 根据算法生成的buvid，例如："XYBA4F3B2789A879EA8AEEDBE2E4118F78303"
        :param phone_model:  手机型号modal，例如："Mate 10 Pro"
        :param phone_band:  手机品牌band，在模拟器上是空字符串（我猜是程序员想要写成 brand ）哈哈哈哈
        :return:
        """

        def a_b(arg8):
            v3 = 0
            v4 = 60
            v0_1 = 2
            v5 = 0
            while True:
                v6 = arg8[v3:v3 + 2]
                v5 += int(v6, base=16)
                if v3 != v4:
                    v3 += v0_1
                    continue
                break
            xx = "%02x" % (v5 % 0x100,)
            return xx

        def misc_helper_kt(data_bytes):
            data_list = []
            v7 = len(data_bytes)
            v0 = 0
            while v0 < v7:
                v2 = data_bytes[v0]
                data_list.append("%02x" % v2)
                v0 += 1
            return ''.join(data_list)

        data_string = "{}{}{}".format(buvid, phone_model, phone_band)
        hash_object = hashlib.md5()
        hash_object.update(data_string.encode('utf-8'))
        data = hash_object.digest()

        arg1 = misc_helper_kt(data)
        arg2 = datetime.datetime.now().strftime("%Y%m%d%H%M%S")
        # arg3 = misc_helper_kt(random.randbytes(8))
        arg3 = misc_helper_kt([random.randint(1, 255) for i in range(8)])

        str2 = "{}{}{}".format(arg1, arg2, arg3)
        local = str2 + a_b(str2)
        return local

    def x_report_click_android2(self):
        SALT = "9cafa6466a028bfb"
        KEY = "fd6b639dbcff0c2a1b03b389ec763c4b"
        IV = "77b07a672d57d64c"

        def sha_256_encrypt(data_string):
            sha = hashlib.sha256()
            sha.update(data_string.encode('utf-8'))
            sha.update(SALT.encode('utf-8'))
            return sha.hexdigest()

        def aes_encrypt(data_string):
            aes = AES.new(
                key=KEY.encode('utf-8'),
                mode=AES.MODE_CBC,
                iv=IV.encode('utf-8')
            )
            raw = pad(data_string.encode('utf-8'), 16)
            return aes.encrypt(raw)

        ctime = int(time.time())
        info = {
            'aid': self.aid,
            'cid': self.cid,
            'part': 1,
            'mid': 0,
            'lv': 0,
            'ftime': ctime - random.randint(100, 1000),
            'stime': ctime,
            'did': self.device_id,
            'type': 3,
            'sub_type': 0,
            'sid': '0',
            'epid': '',
            'auto_play': 0,
            'build': 6240300,
            'mobi_app': 'android',
            'spmid': 'main.ugc-video-detail.0.0',
            'from_spmid': 'search.search-result.0.0'
        }
        data = "&".join(["{}={}".format(key, info[key]) for key in sorted(info.keys())])
        sign = sha_256_encrypt(data).lower()
        data = "{}&sign={}".format(data, sign)
        aes_string = aes_encrypt(data)

        res = self.session.post(
            url="https://api.bilibili.com/x/report/click/android2",
            headers={
                "accept-length": "gzip",
                "content-type": "application/json; charset=utf-8",
                "app-key": "android",
                "User-Agent": "Mozilla/5.0 BiliDroid/6.24.0 ([email protected]) os/android model/Mate 10 Pro mobi_app/android build/6240300 channel/bili innerVer/6240300 osVer/6.0.1 network/2",
                "env": "prod",
                "buvid": self.buvid,
                "device-id": self.device_id,
                "session_id": self.session_id,
                "fp_local": self.fp_local,
                "fp_remote": self.fp_remote,
            },
            data=aes_string,
            timeout=10,
            verify=False

        )
        # print(res.text)
        res.close()

    def get_param_sign_s(self, param_dict):
        """
        :param param_dict: 要签名的参数字典
        :return:
        """
        ordered_string = "&".join(["{}={}".format(key, param_dict[key]) for key in sorted(param_dict.keys())])
        encrypt_string = ordered_string + "560c52ccd288fed045859ed18bffd973"
        obj = hashlib.md5(encrypt_string.encode('utf-8'))
        sign = obj.hexdigest()

        return "{}&sign={}".format(ordered_string, sign)

    def create_heart_beat_session_id(self):
        arg0 = str(int(time.time() * 1000)) + str(random.randint(1, 1000000))
        # sha1加密
        hash_object = hashlib.sha1()
        hash_object.update(arg0.encode('utf-8'))
        arg7 = hash_object.hexdigest()
        return arg7

    def heart_beat_start(self, aid, cid, duration):
        self.start_ts = ts = int(time.time() - 10)
        self.heart_beat_session_id = self.create_heart_beat_session_id()
        form_dict = {
            "actual_played_time": "0",
            "aid": aid,
            "appkey": "1d8b6e7d45233436",
            "auto_play": "0",
            "build": "6240300",
            "c_locale": "zh_CN",
            "channel": "bili",
            "cid": cid,
            "epid": "0",
            "epid_status": "",
            "from": "2",
            "from_spmid": "main.ugc-video-detail.0.0",
            "last_play_progress_time": "0",
            "list_play_time": "0",
            "max_play_progress_time": "0",
            "mid": "0",
            "miniplayer_play_time": "0",
            "mobi_app": "android",
            "network_type": "1",
            "paused_time": "0",
            "platform": "android",
            "play_status": "0",
            "play_type": "1",
            "played_time": "0",
            "quality": "32",
            "s_locale": "zh_CN",
            "session": self.heart_beat_session_id,
            "sid": "0",
            "spmid": "main.ugc-video-detail.0.0",
            "start_ts": "0",
            "statistics": quote_plus(
                json.dumps({"appId": 1, "platform": 3, "version": "6.24.0", "abtest": ""}, separators=(',', ':'))),
            "sub_type": "0",
            "total_time": "0",
            "type": "3",
            "user_status": "0",
            "video_duration": duration,
            "ts": ts,
        }

        total_body_string = self.get_param_sign_s(form_dict)

        res = self.session.post(
            url="https://api.bilibili.com/x/report/heartbeat/mobile",
            data=total_body_string.encode('utf-8'),
            headers={
                "accept-length": "gzip",
                "content-type": "application/x-www-form-urlencoded; charset=utf-8",
                "app-key": "android",
                "User-Agent": "Mozilla/5.0 BiliDroid/6.24.0 ([email protected]) os/android model/Mate 10 Pro mobi_app/android build/6240300 channel/bili innerVer/6240300 osVer/6.0.1 network/2",
                "env": "prod",
                "buvid": self.buvid,
                "device-id": self.device_id,
                "session_id": self.session_id,
                "fp_local": self.fp_local,
                "fp_remote": self.fp_remote,
            },
            verify=False
        )
        res.close()

    def heart_beat_end(self, aid, cid, duration):
        current_ts = int(time.time())

        form_dict = {
            "actual_played_time": duration,  # 实际播放时间
            "aid": aid,
            "appkey": "1d8b6e7d45233436",
            "auto_play": "0",
            "build": "6240300",
            "c_locale": "zh_CN",
            "channel": "bili",
            "cid": cid,
            "epid": "0",
            "epid_status": "",
            "from": "2",
            "from_spmid": "main.ugc-video-detail.0.0",
            "last_play_progress_time": duration,
            "list_play_time": "0",
            "max_play_progress_time": duration,
            "mid": "0",
            "miniplayer_play_time": "0",
            "mobi_app": "android",
            "network_type": "1",
            "paused_time": current_ts - self.start_ts - duration,  # 暂停时间
            "platform": "android",
            "play_status": "0",
            "play_type": "1",
            "played_time": duration,
            "quality": "32",
            "s_locale": "zh_CN",
            "session": self.heart_beat_session_id,
            "sid": "0",
            "spmid": "main.ugc-video-detail.0.0",
            "start_ts": self.start_ts,
            "statistics": quote_plus(
                json.dumps({"appId": 1, "platform": 3, "version": "6.24.0", "abtest": ""}, separators=(',', ':'))),
            "sub_type": "0",
            "total_time": current_ts - self.start_ts,
            "type": "3",
            "user_status": "0",
            "video_duration": self.duration,
            "ts": current_ts,
            # "sign": "b098ca2c4caa53de22720a9755fde742"
        }

        total_body_string = self.get_param_sign_s(form_dict)

        res = self.session.post(
            url="https://api.bilibili.com/x/report/heartbeat/mobile",
            headers={
                "accept-length": "gzip",
                "content-type": "application/x-www-form-urlencoded; charset=utf-8",
                "app-key": "android",
                "User-Agent": "Mozilla/5.0 BiliDroid/6.24.0 ([email protected]) os/android model/Mate 10 Pro mobi_app/android build/6240300 channel/bili innerVer/6240300 osVer/6.0.1 network/2",
                "env": "prod",
                "buvid": self.buvid,
                "device-id": self.device_id,
                "session_id": self.session_id,
                "fp_local": self.fp_local,
                "fp_remote": self.fp_remote,
            },
            data=total_body_string.encode('utf-8'),
            verify=False
        )
        res.close()


def get_video_id_info(exec_url, proxies):
    session = requests.Session()
    bvid = exec_url.rsplit('/')[-1]
    header = {
        'User-Agent': 'Mozilla/5.0 (Linux; Android 6.0; Nexus 5 Build/MRA58N) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Mobile Safari/537.36'
    }
    res = session.get(
        url="https://api.bilibili.com/x/player/pagelist?bvid={}&jsonp=jsonp".format(bvid),
        # proxies=proxies,
        headers=header,
        verify=False
    )

    cid = res.json()['data'][0]['cid']

    res = session.get(
        url="https://api.bilibili.com/x/web-interface/view?cid={}&bvid={}".format(cid, bvid),
        # proxies=proxies,
        headers=header,
        verify=False
    )
    res_json = res.json()
    aid = res_json['data']['aid']
    view_count = res_json['data']['stat']['view']
    duration = res_json['data']['duration']
    session.close()
    return aid, bvid, cid, duration, int(view_count)


def get_proxy_dict():
    key = "..."
    passwd = "..."
    host = "..."
    return {
        "http": 'http://{}:{}@{}'.format(key, passwd, host),
        "https": 'http://{}:{}@{}'.format(key, passwd, host)
    }


def run():
    url = "https://www.bilibili.com/video/BV1Mu4y1Y7Ho"
    while True:
        try:
            # 1.IP代理
            # proxies = get_proxy_dict()
            proxies = {}

            # 2.获取视频信息
            aid, bvid, cid, duration, view_count = get_video_id_info(url, proxies)
            print("\n播放量为：{}".format(view_count))

            # 3.创建对象 -> buvid、session生成
            bili = BiliBili(aid, bvid, cid, duration, proxies=proxies)

            # 4.播放
            bili.x_report_click_android2()

            # 5.心跳开始
            bili.heart_beat_start(aid, cid, duration)

            # 6.模拟观看视频
            time.sleep(10)

            # 7.结束心跳
            bili.heart_beat_end(aid, cid, duration)

            # 8.关闭连接
            bili.session.close()
        except Exception as e:
            print("异常：", e)


if __name__ == '__main__':
    run()


__END__
