1.TCP请求

当APP端和服务端基于TCP直接发送请求时，无法抓包。

1.1 示例-服务端

import socket

server = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
# server.bind(("0.0.0.0", 9002))
server.bind(("192.168.3.136", 9002))
server.listen(5)

while True:
    client, addr = server.accept()  # 等待客户端来链接（卡主）
    data = client.recv(1024)  # 读取客户端发送的消息
    print(data)
    client.send("ok".encode('utf-8'))  # 给安卓端回复 ok
    client.close()

1.2 示例-客户端

示例代码：TCP001

1 2	implementation 'androidx.appcompat:appcompat:1.5.1' implementation 'com.google.android.material:material:1.6.1'

1	<uses-permission android:name="android.permission.INTERNET" />

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <Button
            android:id="@+id/btn1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="发送请求" />
    </LinearLayout>
</LinearLayout>

package com.nb.tcp001;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;

import java.io.InputStream;
import java.io.OutputStream;
import java.net.Socket;
import java.util.Arrays;

public class MainActivity extends AppCompatActivity {
    private Button btn1;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        btn1 = findViewById(R.id.btn1);
        btn1.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                doRequest();
            }
        });

    }

    private void doRequest() {
        new Thread() {
            @Override
            public void run() {
                try {
                    //Socket socket = new Socket("127.0.0.1", 9001);
                    Socket socket = new Socket("192.168.43.252", 9001);

                    // java.net.SocketOutputStream
                    OutputStream outputStream = socket.getOutputStream();
                    outputStream.write("hello".getBytes());
                    //Log.e("outputStream的类 => ", outputStream.getClass().getName());

                    // java.net.SocketInputStream
                    InputStream inputStream = socket.getInputStream();
                    //Log.e("inputStream的类 => ", inputStream.getClass().getName());
                    while (true) {
                        byte[] buffer = new byte[1024];
                        int len = inputStream.read(buffer, 0, buffer.length);
                        if (len == -1) {
                            break;
                        }
                        Log.e("读取相应内容 =>", new String(Arrays.copyOf(buffer, len)));
                    }
                    socket.close();

                } catch (Exception ex) {
                    Log.e("Main", "网络请求异常" + ex);
                }
            }
        }.start();
    }

}

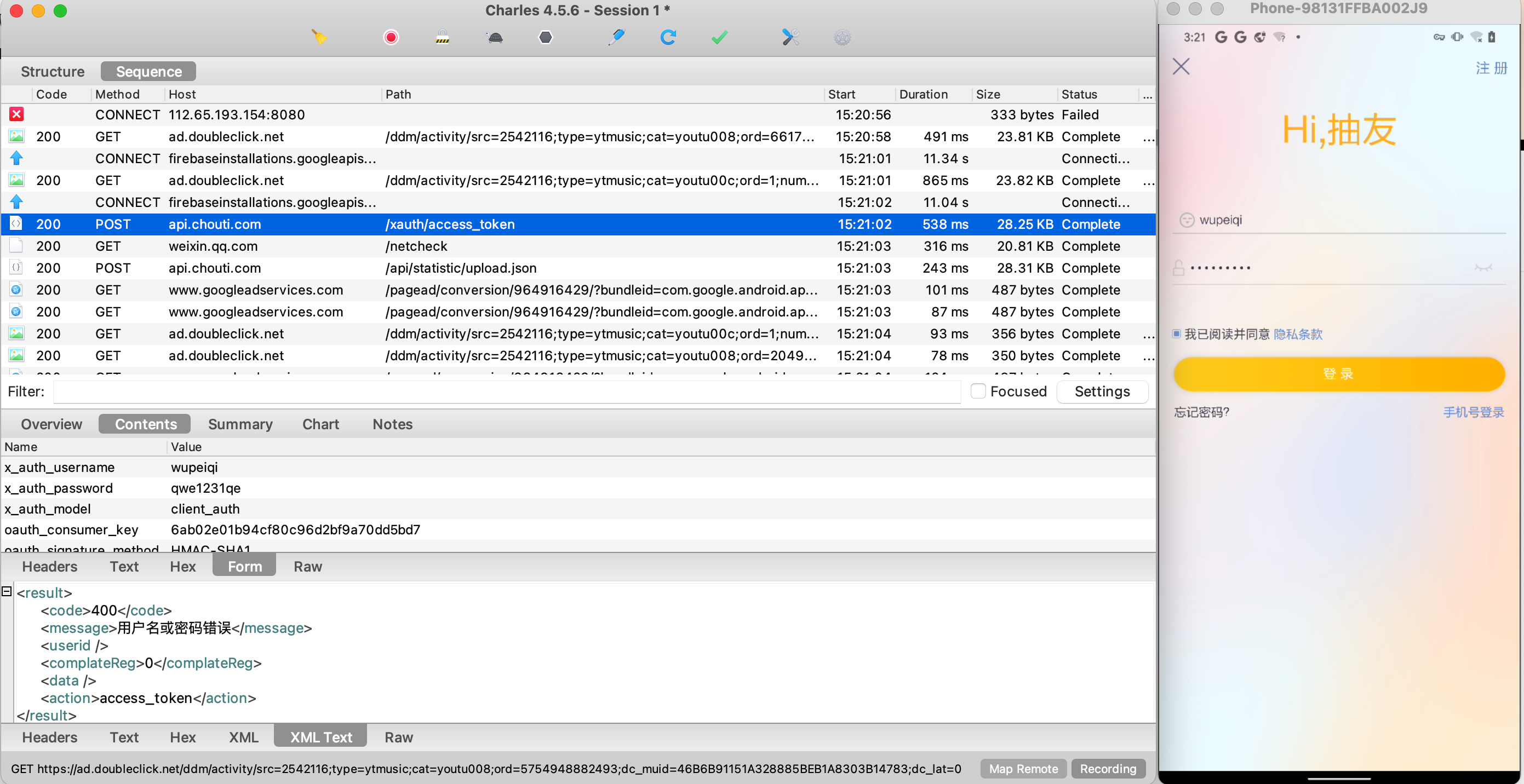

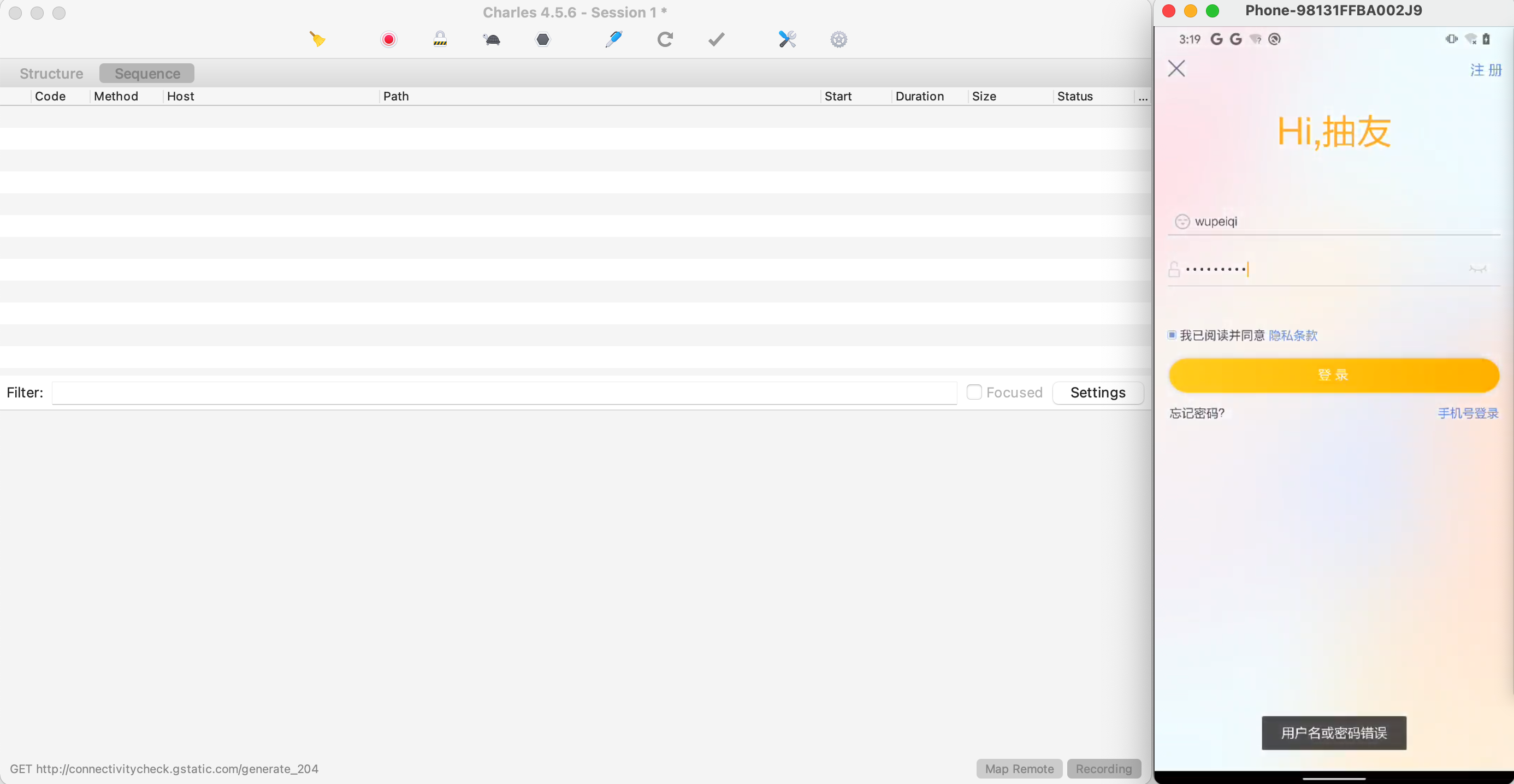

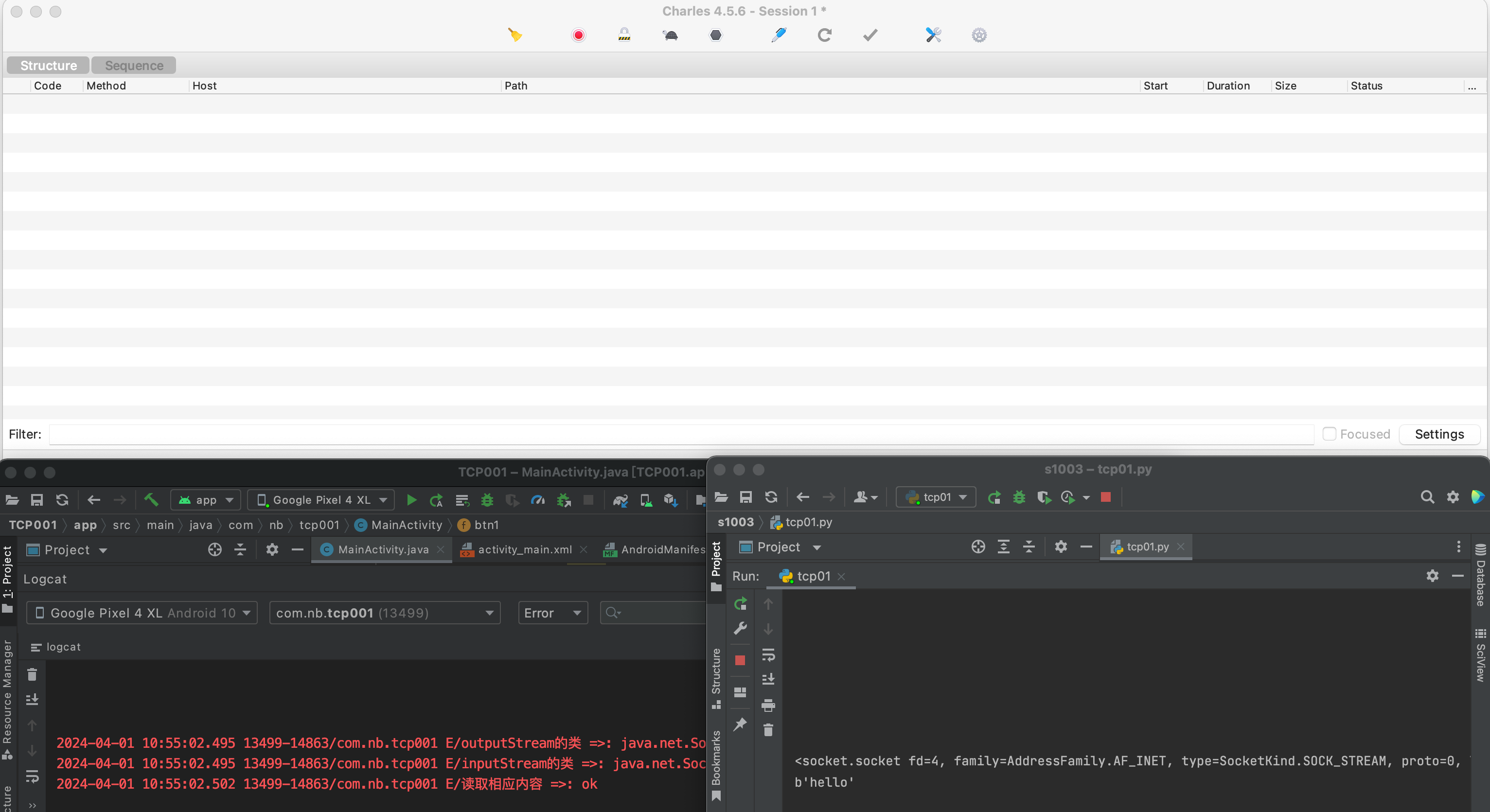

1.3 无法抓包

1.4 Hook抓包【java】

Java.perform(function () {
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");
    var HexDump = Java.use("com.android.internal.util.HexDump");

    var SocketOutputStream = Java.use('java.net.SocketOutputStream');
    SocketOutputStream.write.overload('[B').implementation = function (arr) {
        // console.log(arr); // 104,101,108,108,111
        // console.log(ByteString.of(arr).hex()); // 68656c6c6f
        // console.log(ByteString.of(arr).utf8()); // hello
        // console.log(HexDump.dumpHexString(arr))

        return this.write(arr);
    };

    var SocketInputStream = Java.use('java.net.SocketInputStream');
    SocketInputStream.read.overload('[B', 'int', 'int').implementation = function (b, off, len) {
        var res = this.read(b, off, len);

        // console.log(b);
        // console.log(ByteString.of(b).hex());
        // console.log(ByteString.of(b).utf8());
        // console.log(HexDump.dumpHexString(b, off, len))

        return res;

    };
});

// frida -UF -l  1.hook.js

1.发送请求

请求数据的写入是调用的SocketOutputStream的write方法。

1
2
3

// java.net.SocketOutputStream
OutputStream outputStream = socket.getOutputStream();
outputStream.write(sb.toString().getBytes());

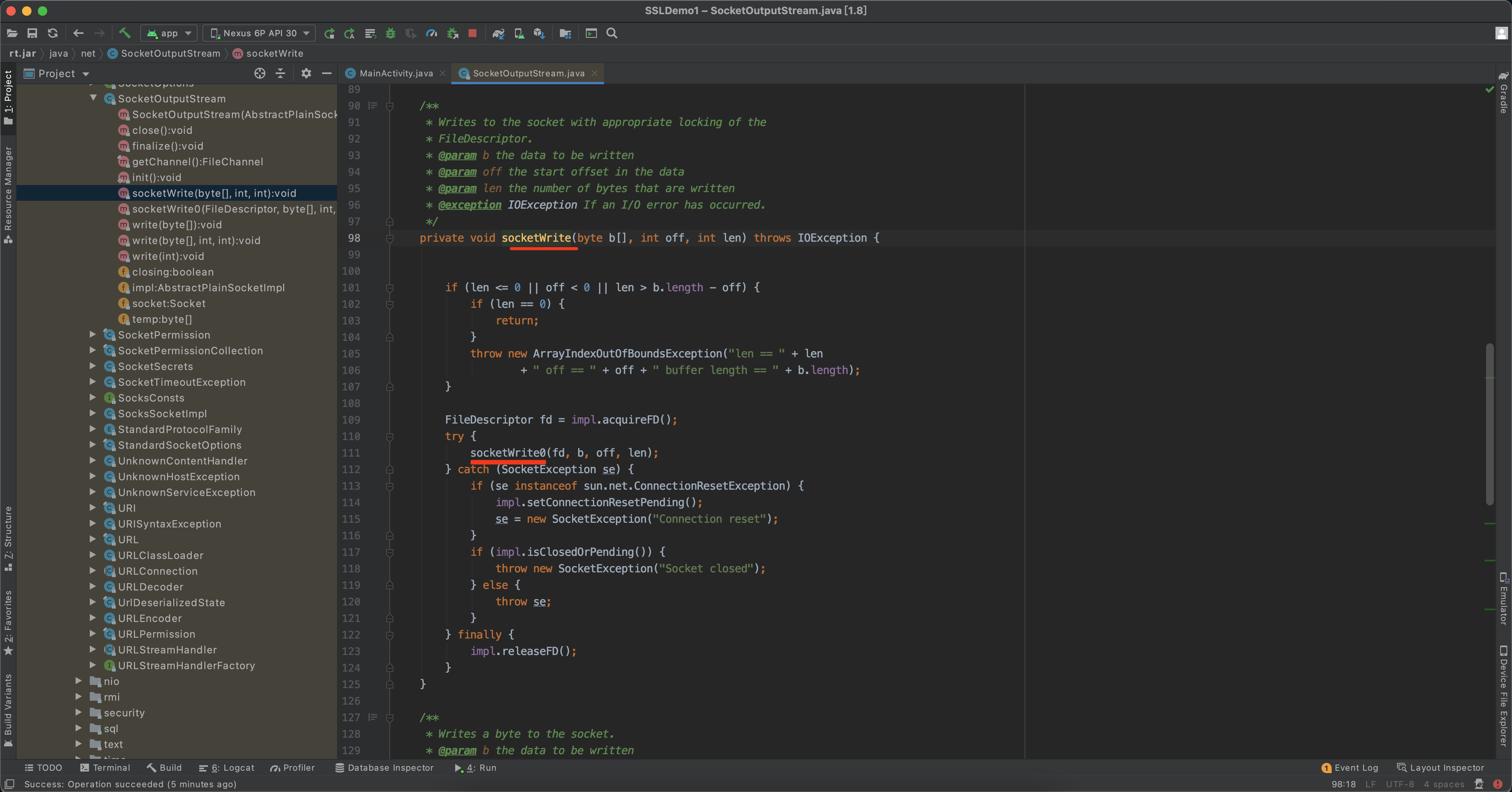

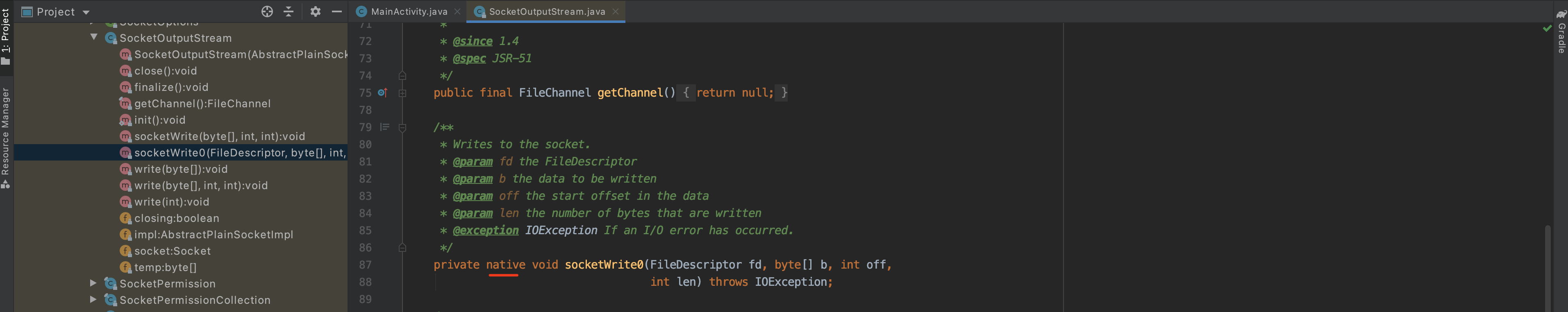

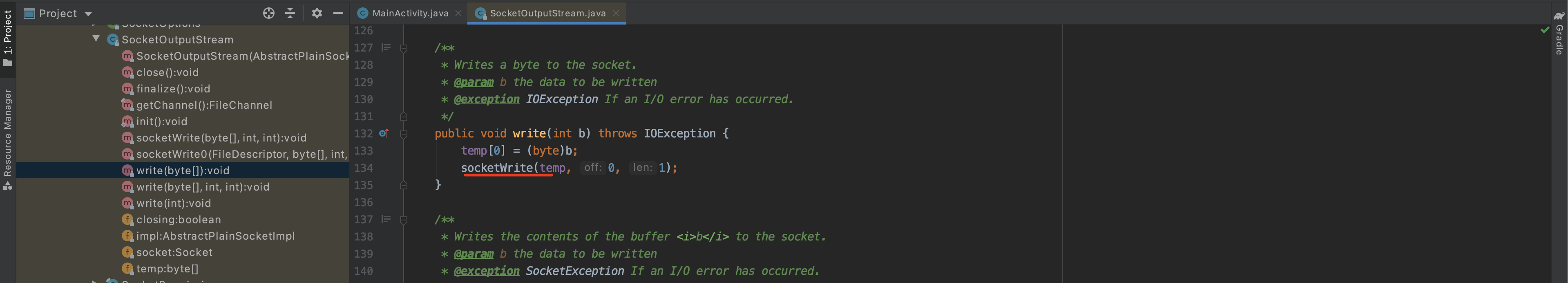

所以，底层发送的http请求的数据就是执行 java.net.SocketOutputStream 中的 socketWrite0方法。

那么，如果我们对这个方法进行Hook，是不是就可以获取到所有http请求的数据了。

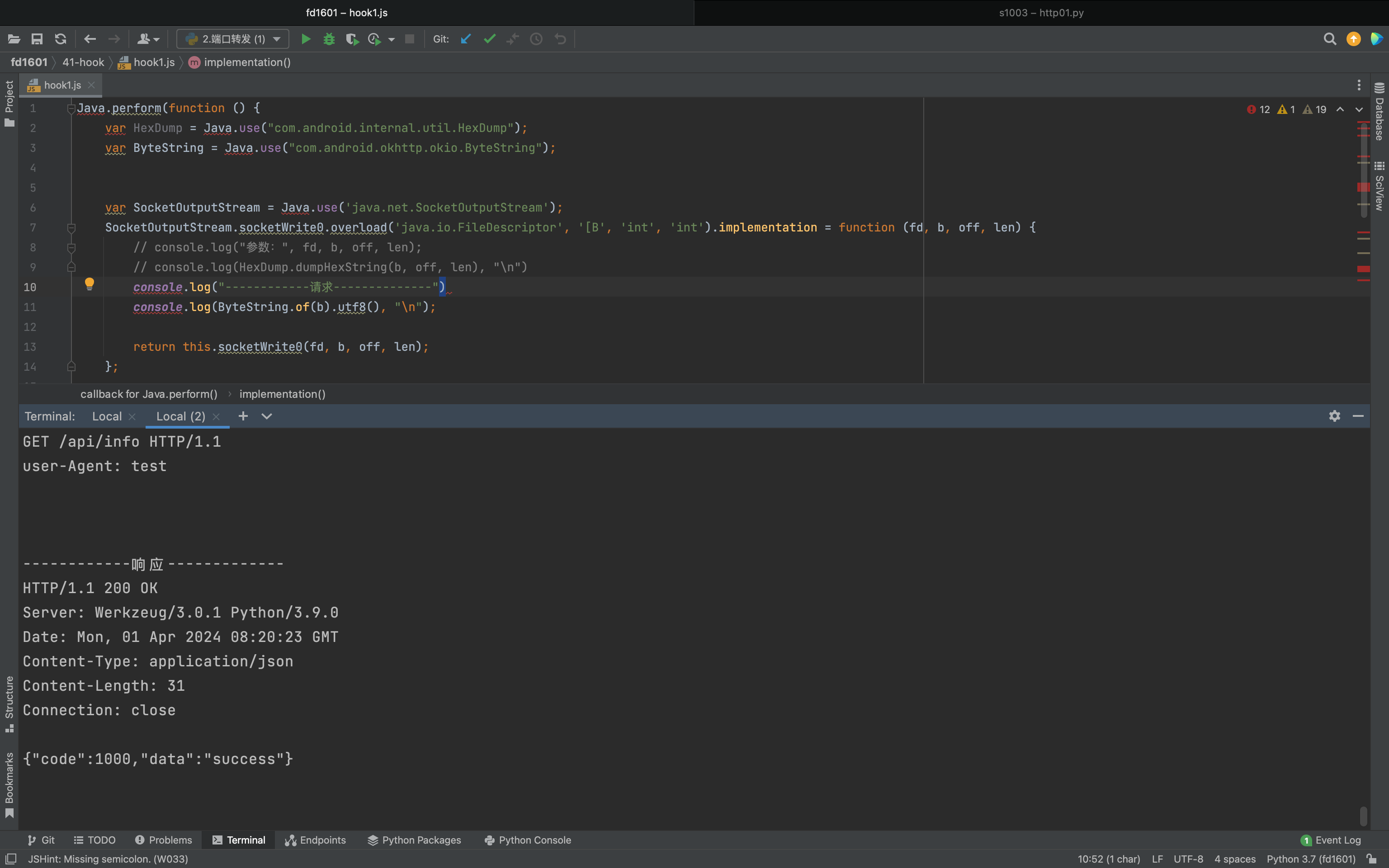

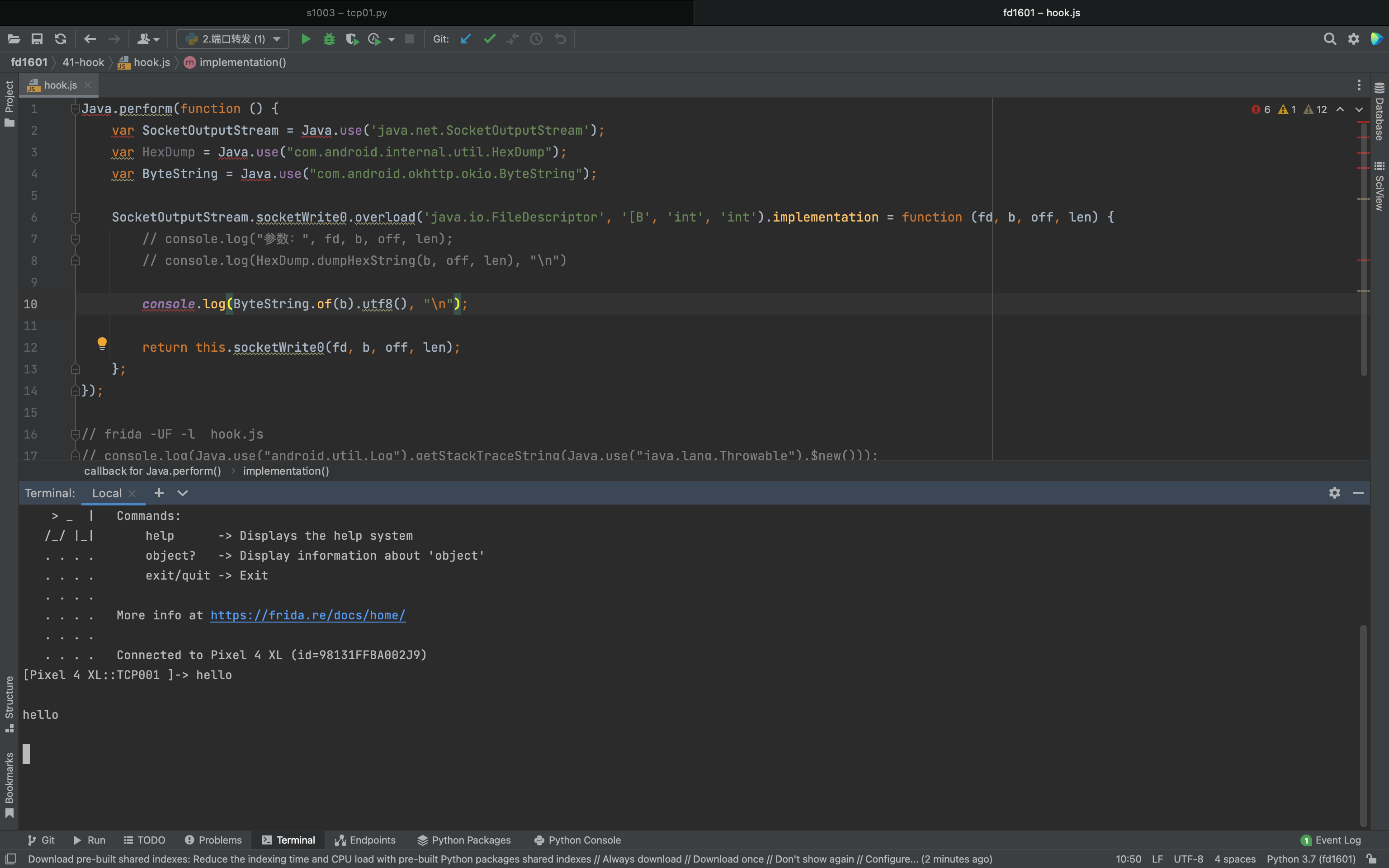

Java.perform(function () {
    var SocketOutputStream = Java.use('java.net.SocketOutputStream');
    var HexDump = Java.use("com.android.internal.util.HexDump");
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");

    SocketOutputStream.socketWrite0.overload('java.io.FileDescriptor', '[B', 'int', 'int').implementation = function (fd, b, off, len) {
        // console.log("参数：", fd, b, off, len);
        // console.log(HexDump.dumpHexString(b, off, len), "\n")

        console.log(ByteString.of(b).utf8(), "\n");

        return this.socketWrite0(fd, b, off, len);
    };
});

// frida -UF -l  hook.js
// console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));

2.获取响应

// java.net.SocketInputStream
InputStream inputStream = socket.getInputStream();
Log.e("inputStream的类 => ", inputStream.getClass().getName());
while (true) {
    byte[] buffer = new byte[1024];
    int len = inputStream.read(buffer, 0, buffer.length);
    if (len == -1) {
        break;
    }
    Log.e("读取相应内容 =>", new String(Arrays.copyOf(buffer, len)));
}

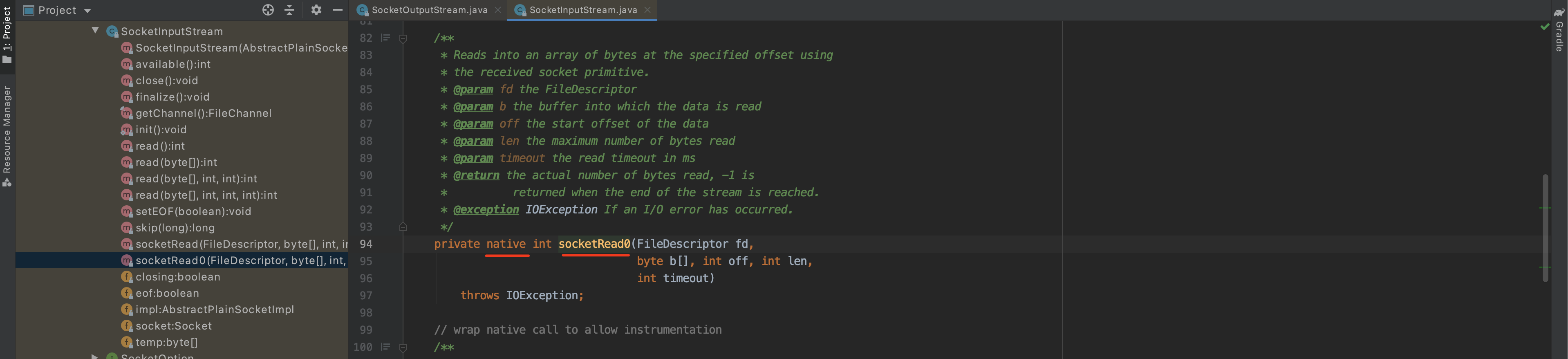

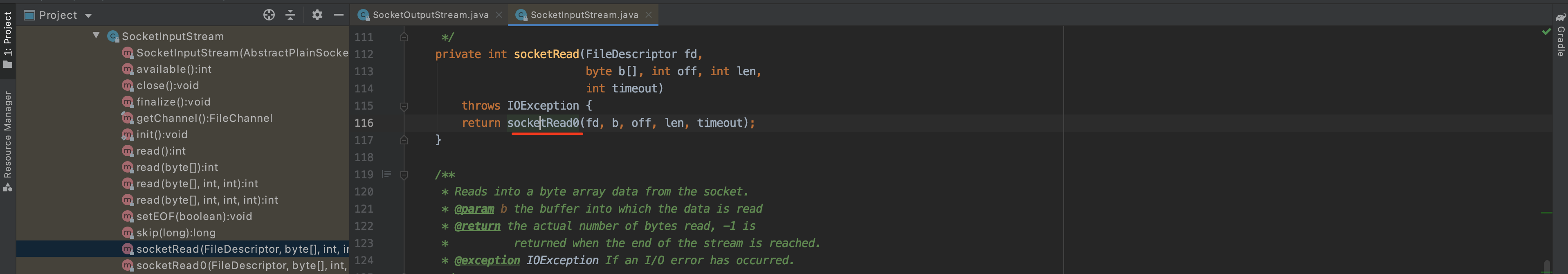

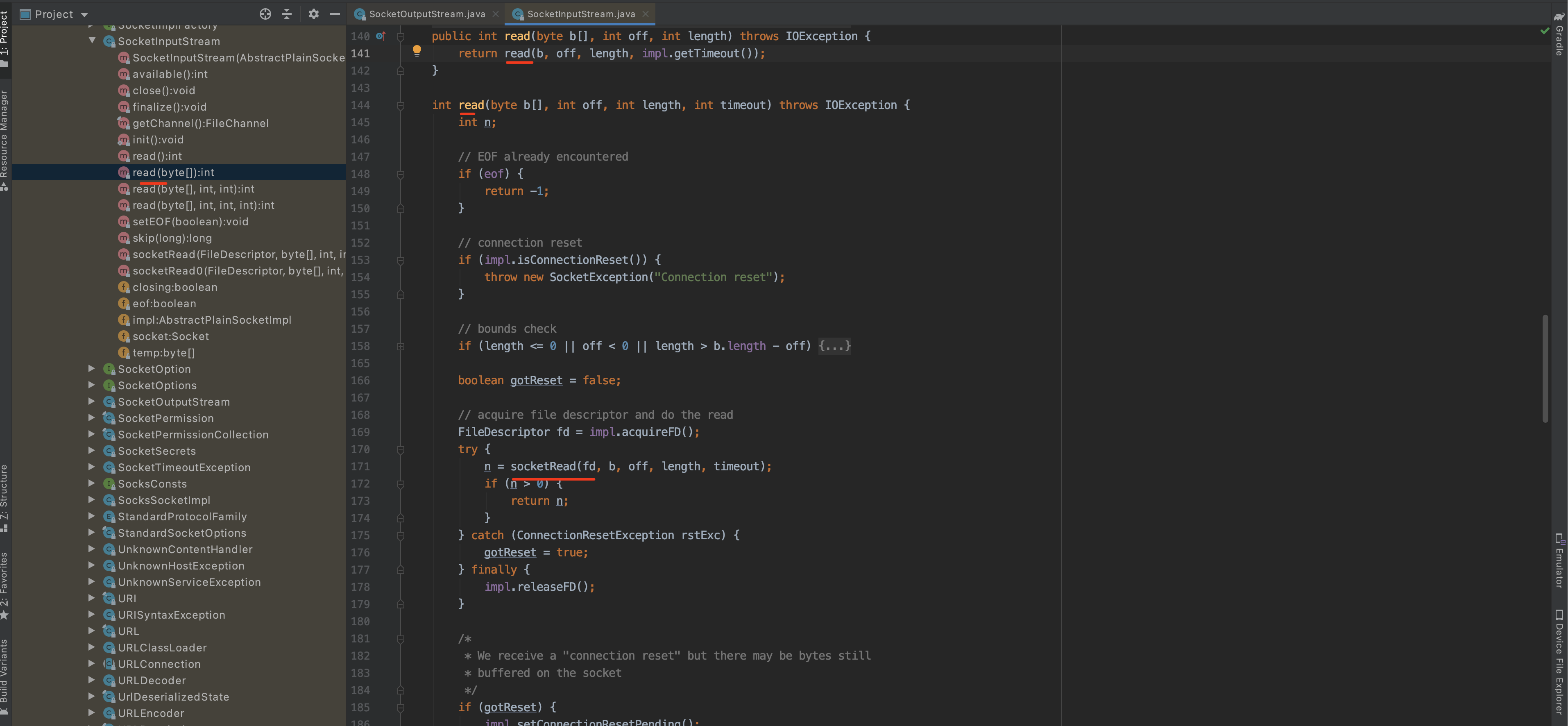

所以，底层发送的http响应的的数据就是执行 java.net.SocketInputStream 中的 socketRead0方法。

那么，如果我们对这个方法进行Hook，是不是就可以获取到所有http请求的数据了。

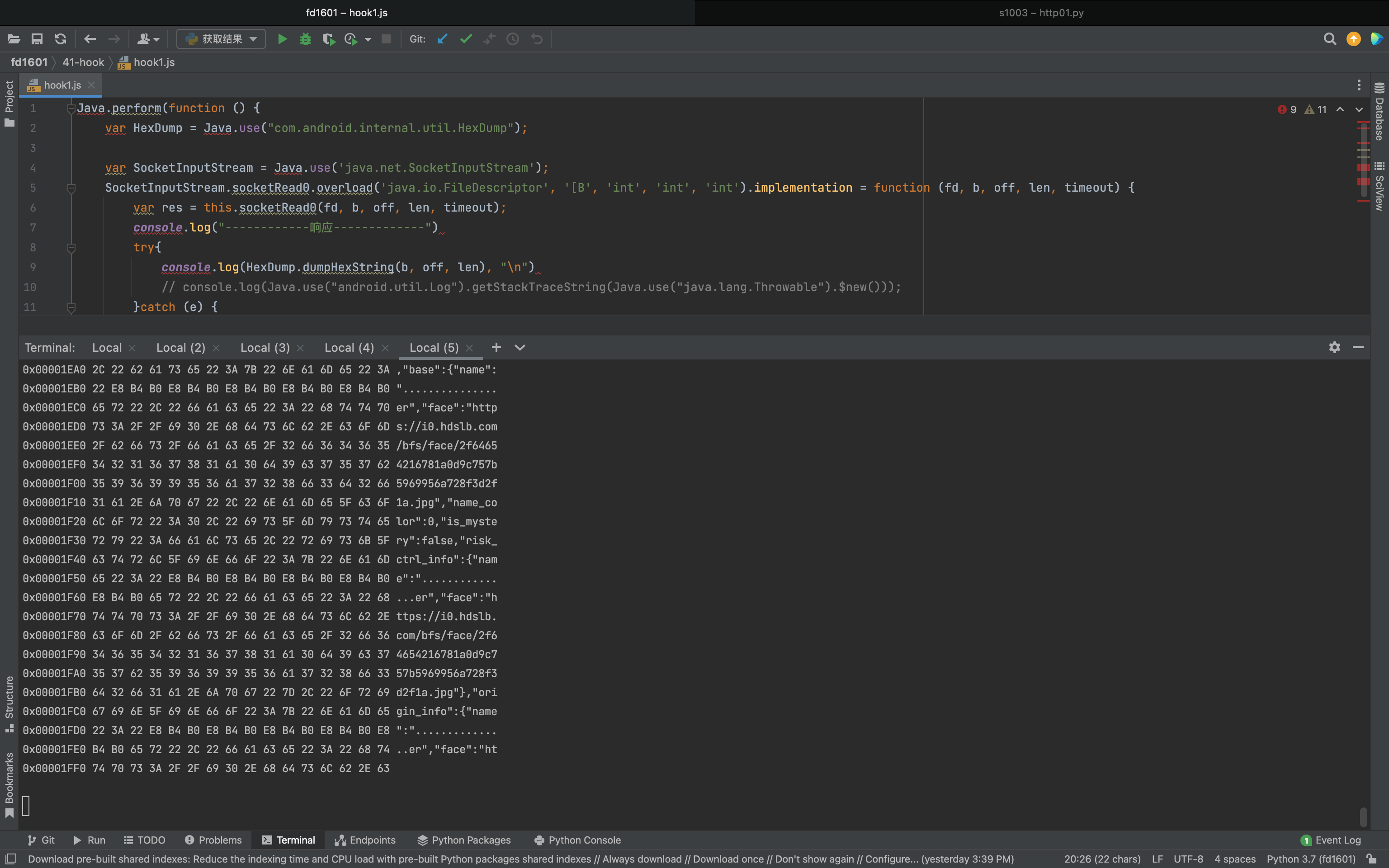

Java.perform(function () {
    var SocketInputStream = Java.use('java.net.SocketInputStream');
    var HexDump = Java.use("com.android.internal.util.HexDump");
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");

    SocketInputStream.socketRead0.overload('java.io.FileDescriptor', '[B', 'int', 'int', 'int').implementation = function (fd, b, off, len, timeout) {

        var res = this.socketRead0(fd, b, off, len, timeout);
        // console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log(ByteString.of(b).utf8(), "\n");
        return res;

    };
});

// frida -UF -l  hook.js
// console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));

1.5 Hook抓包【so】

上述的请求和写入，都是在java层面进行hook的获取，实际上真正的请求会调用so层的代码，最终将请求发送过去。

1.寻找so文件

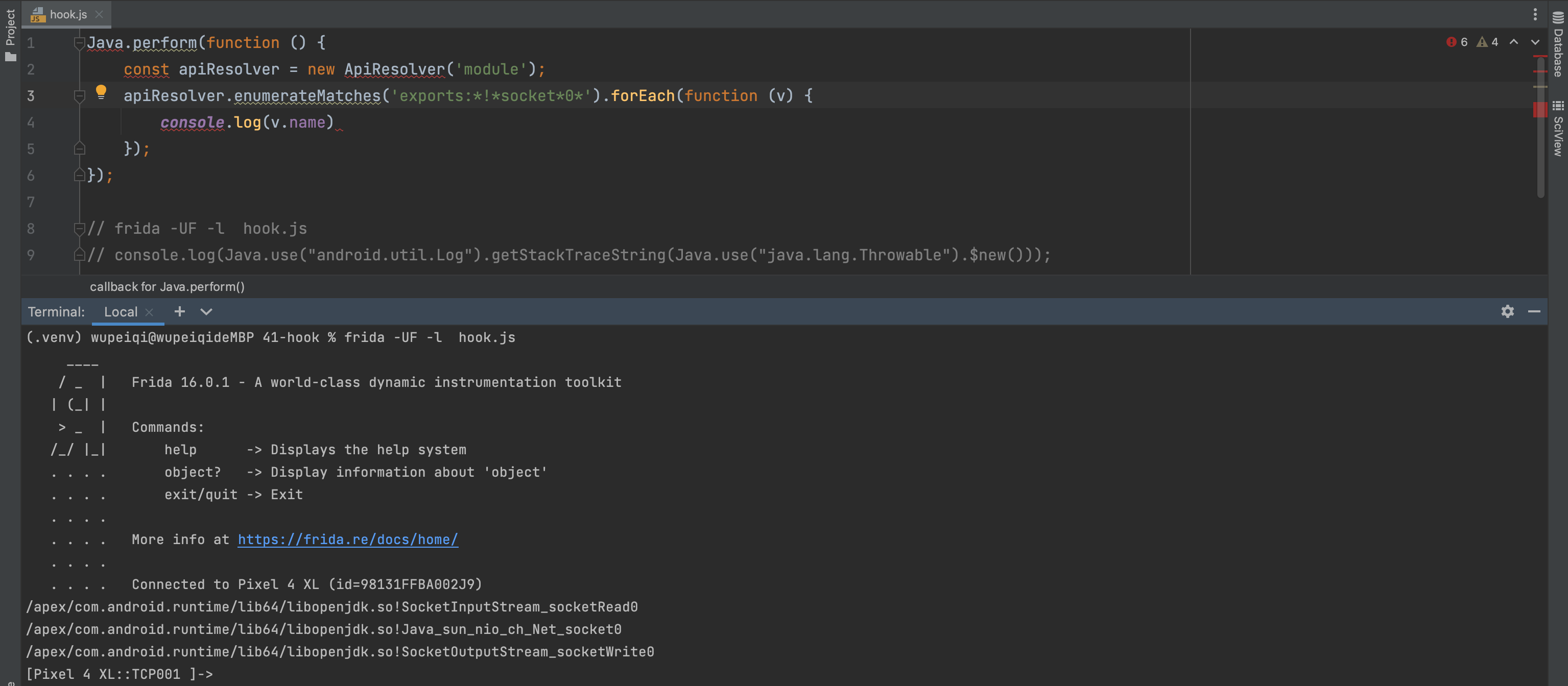

寻找socketRead0和socketWrite0的hook的脚本：

Java.perform(function () {
    const apiResolver = new ApiResolver('module');
    apiResolver.enumerateMatches('exports:*!*socket*0*').forEach(function (v) {
        console.log(v.name)
    });
});

// frida -UF -l  hook.js

1 2	/apex/com.android.runtime/lib64/libopenjdk.so!SocketInputStream_socketRead0 /apex/com.android.runtime/lib64/libopenjdk.so!SocketOutputStream_socketWrite0

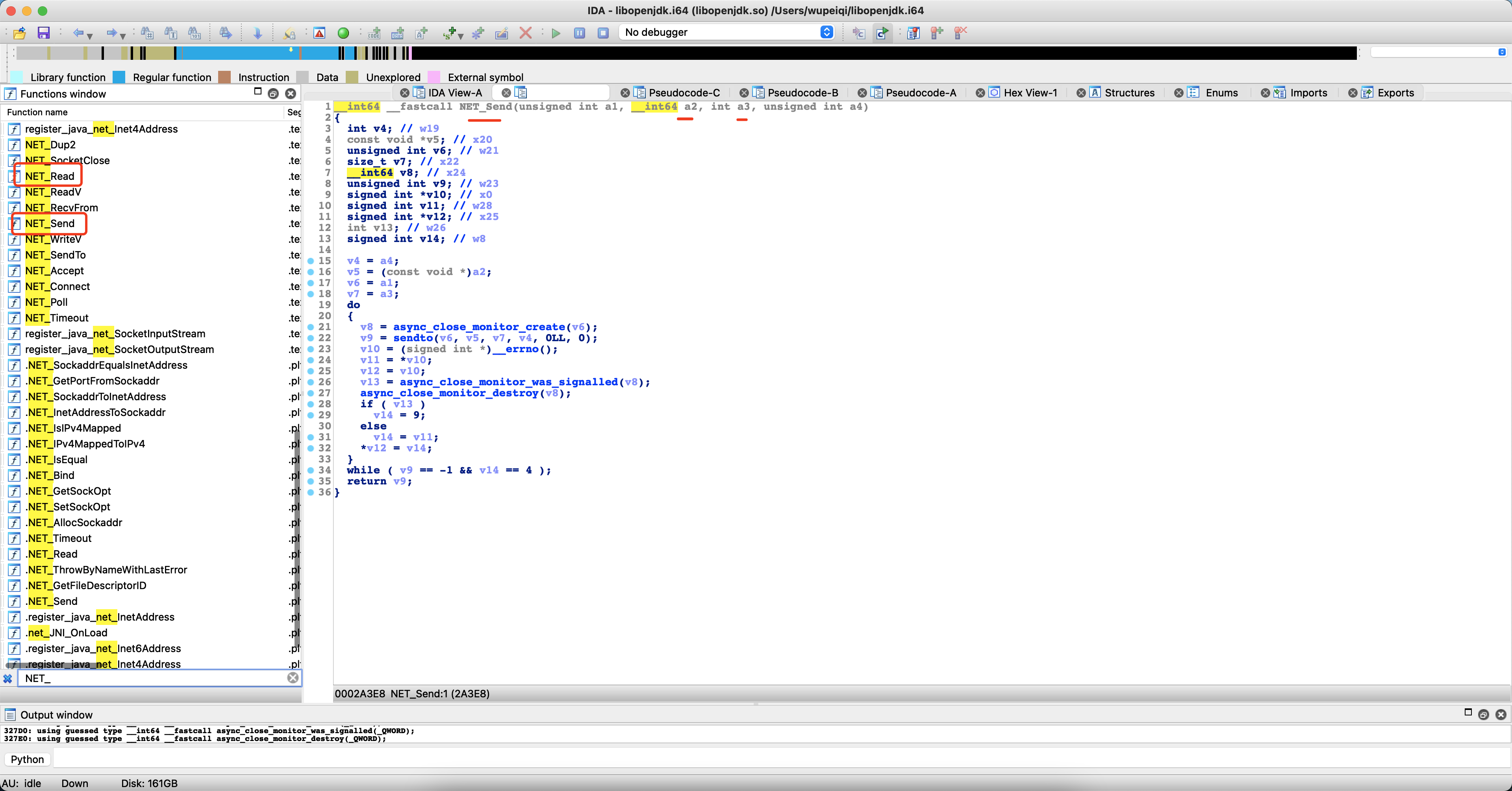

2.请求和响应

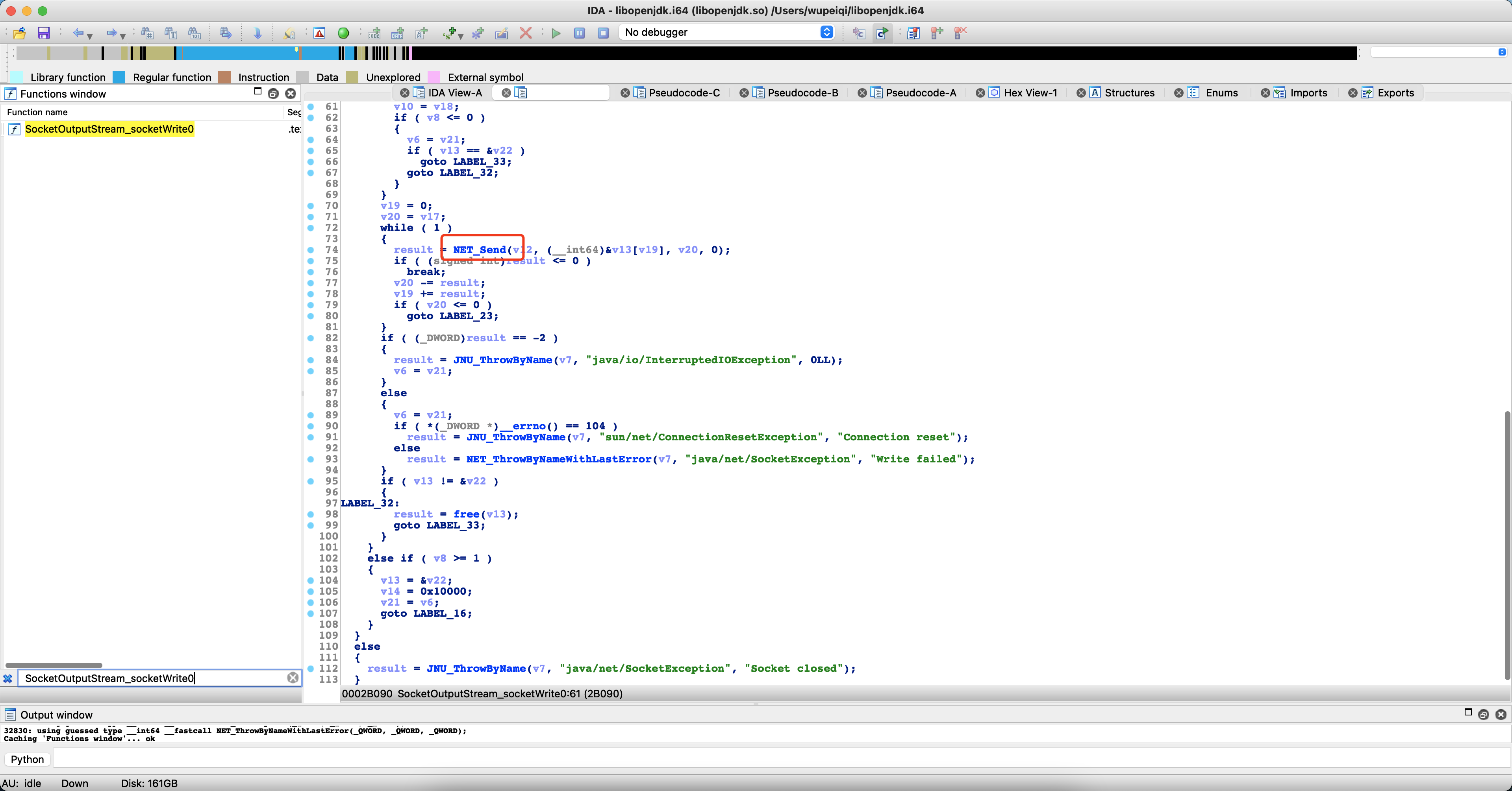

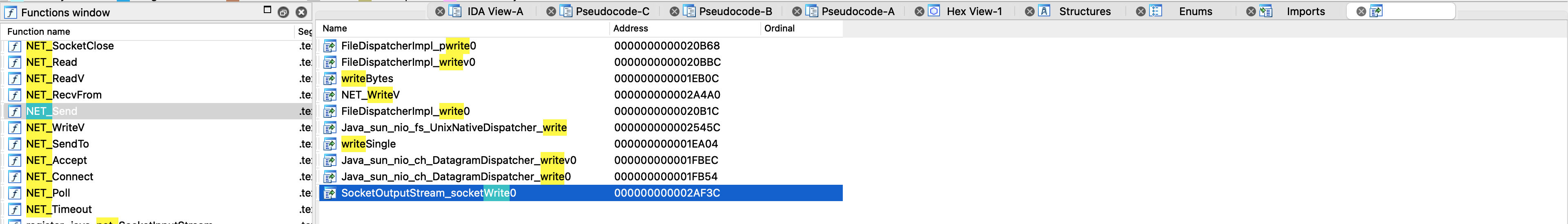

/apex/com.android.runtime/lib64/libopenjdk.so

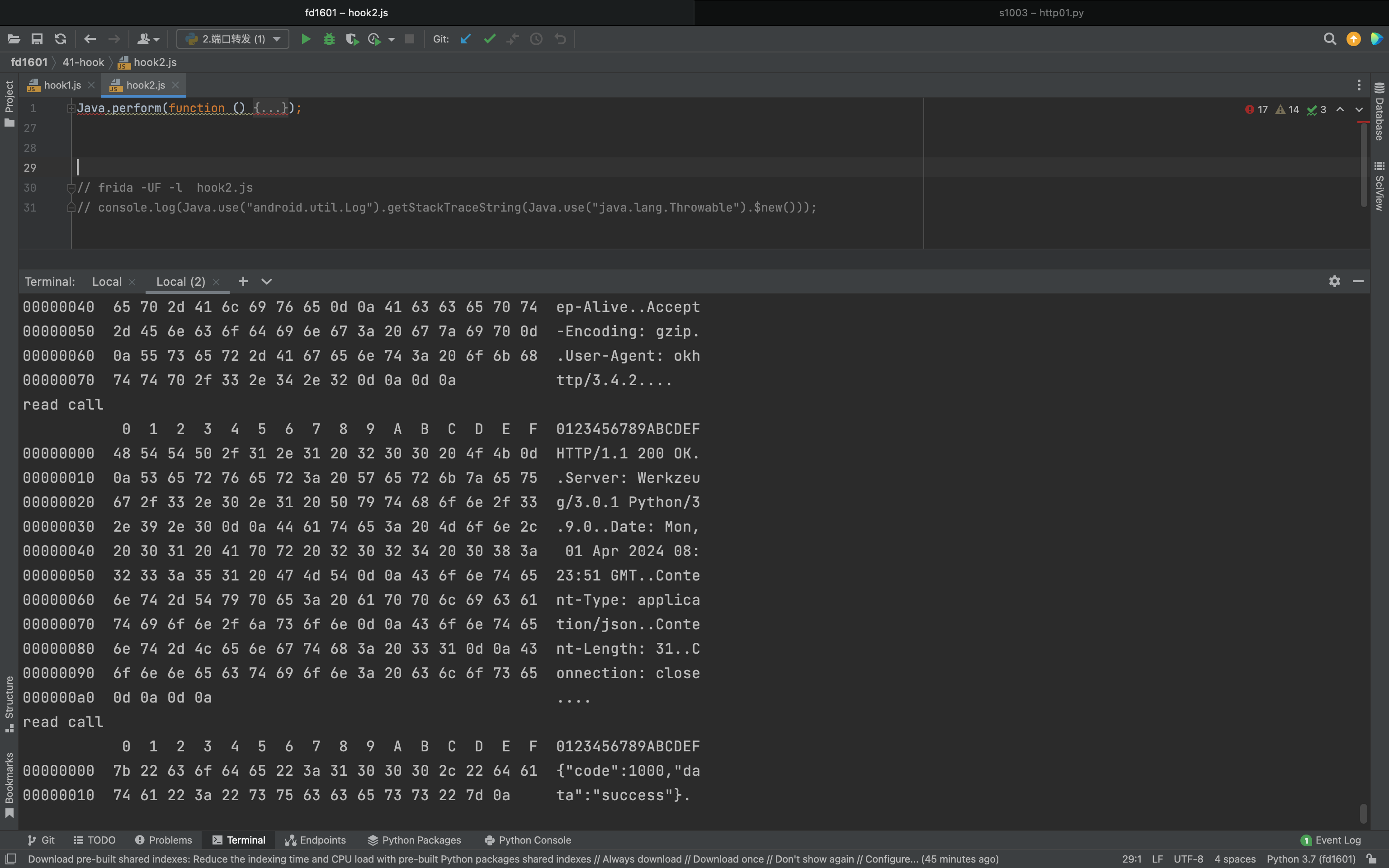

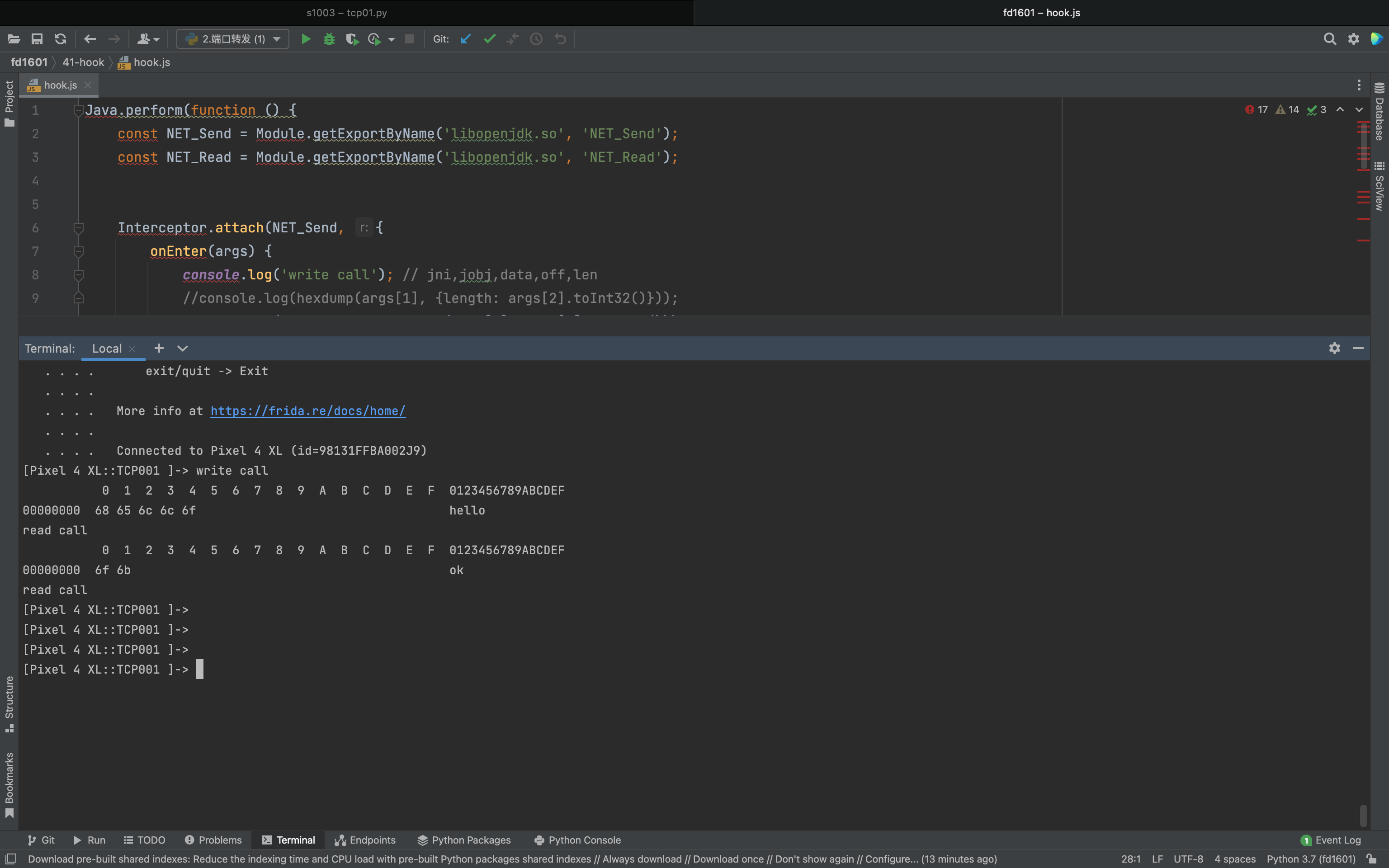

Hook获取数据：

Java.perform(function () {
    const NET_Send = Module.getExportByName('libopenjdk.so', 'NET_Send');
    const NET_Read = Module.getExportByName('libopenjdk.so', 'NET_Read');


    Interceptor.attach(NET_Send, {
        onEnter(args) {
            console.log('write call'); // jni,jobj,data,off,len
            //console.log(hexdump(args[1], {length: args[2].toInt32()}));
            console.log(Memory.readByteArray(args[1], args[2].toInt32()));
        }
    });

    Interceptor.attach(NET_Read, {
        onEnter(args) {
            console.log('read call');
            this.buf = args[1];
        },
        onLeave: function (retval) {
            retval |= 0; // Cast retval to 32-bit integer.
            if (retval <= 0) {
                return;
            }
            console.log(Memory.readByteArray(this.buf, retval));
        }
    });
});

// frida -UF -l  hook.js

2.Http请求

在app开发时，发送请求会使用okhttp3等第三发模块，但这些模块发送http请求的等调用是基于TCP实现，例如：

OkHttpClient client = new OkHttpClient.Builder().build();
Request req = new Request.Builder().url("http://www.chinatelecom.com.cn/corp/01/").build();
Call call = client.newCall(req);
try {
    Response res = call.execute();
    ResponseBody resBody = res.body();
    String dataString = resBody.string();
    Log.e("=======>", dataString);

} catch (IOException ex) {
    Log.e("----->", "请求失败");
}

基于TCP底层发送的本质：

// http://www.chinatelecom.com.cn/corp/01/
Socket socket = new Socket("www.chinatelecom.com.cn", 80);

// 1.构造请求头
StringBuilder sb = new StringBuilder();
sb.append("GET /corp/01/ HTTP/1.1\r\n");
sb.append("host: www.chinatelecom.com.cn\r\n");
sb.append("user-Agent: test\r\n");
sb.append("\r\n");

// 2.写入数据（发送数据）
// java.net.SocketOutputStream
OutputStream outputStream = socket.getOutputStream();
outputStream.write(sb.toString().getBytes());
Log.e("outputStream的类 => ", outputStream.getClass().getName());

// 3.读取数据（获取数据）
// java.net.SocketInputStream
InputStream inputStream = socket.getInputStream();
Log.e("inputStream的类 => ", inputStream.getClass().getName());

while (true) {
    byte[] buffer = new byte[1024];
    int len = inputStream.read(buffer, 0, buffer.length);
    if (len == -1) {
        break;
    }
    Log.e("读取相应内容 =>", new String(Arrays.copyOf(buffer, len)));
}

socket.close();

2.1 示例-服务端

1	pip install flask

from flask import Flask, jsonify

app = Flask(__name__)


@app.route("/api/info")
def info():
    return jsonify({"code": 1000, 'data': "success"})


if __name__ == '__main__':
    app.run(host="0.0.0.0", port=9003)

2.2 示例-客户端

示例代码：HTTP002

1
2
3

implementation 'androidx.appcompat:appcompat:1.5.1'
implementation 'com.google.android.material:material:1.6.1'
implementation "com.squareup.okhttp3:okhttp:3.4.2"

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.nb.http002">
    <uses-permission android:name="android.permission.INTERNET" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:networkSecurityConfig="@xml/network_security_config"
        android:supportsRtl="true"
        android:theme="@style/Theme.HTTP002">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <!--禁用掉明文流量请求的检查-->
    <base-config cleartextTrafficPermitted="true" />
</network-security-config>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <Button
            android:id="@+id/btn1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="发送请求1" />

        <Button
            android:id="@+id/btn2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="发送请求2" />
    </LinearLayout>
</LinearLayout>

package com.nb.http002;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.Socket;
import java.util.Arrays;

import okhttp3.Call;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;
import okhttp3.ResponseBody;

public class MainActivity extends AppCompatActivity {
    private Button btn1;
    private Button btn2;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);


        btn1 = findViewById(R.id.btn1);
        btn1.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                doRequest1();
            }
        });


        btn2 = findViewById(R.id.btn2);
        btn2.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                doRequest2();
            }
        });
    }


    private void doRequest1() {
        new Thread() {
            @Override
            public void run() {
                try {
                    OkHttpClient client = new OkHttpClient.Builder().build();

                    Request req = new Request.Builder().url("http://192.168.3.136:9003/api/info").build();
                    Call call = client.newCall(req);
                    try {
                        Response res = call.execute();
                        ResponseBody resBody = res.body();
                        String dataString = resBody.string();
                        Log.e("=======>", dataString);

                    } catch (IOException ex) {
                        Log.e("----->", "请求失败" + ex.toString());
                    }

                } catch (Exception ex) {
                    Log.e("Main", "网络请求异常" + ex);
                }
            }
        }.start();
    }

    private void doRequest2() {
        new Thread() {
            @Override
            public void run() {
                try {
                    Socket socket = new Socket("192.168.3.136", 9003);

                    // 1.构造请求头
                    StringBuilder sb = new StringBuilder();
                    sb.append("GET /api/info HTTP/1.1\r\n");
                    sb.append("user-Agent: test\r\n");
                    sb.append("\r\n");

                    // 2.写入数据（发送数据）
                    // java.net.SocketOutputStream
                    OutputStream outputStream = socket.getOutputStream();
                    outputStream.write(sb.toString().getBytes());
                    //Log.e("outputStream的类 => ", outputStream.getClass().getName());

                    // 3.读取数据（获取数据）
                    // java.net.SocketInputStream
                    InputStream inputStream = socket.getInputStream();
                    //Log.e("inputStream的类 => ", inputStream.getClass().getName());

                    while (true) {
                        byte[] buffer = new byte[1024];
                        int len = inputStream.read(buffer, 0, buffer.length);
                        if (len == -1) {
                            break;
                        }
                        Log.e("读取响应内容 =>", new String(Arrays.copyOf(buffer, len)));
                    }

                    socket.close();

                } catch (Exception ex) {
                    Log.e("Main", "网络请求异常" + ex);
                }
            }
        }.start();
    }
}

2.2 Hook抓包

Http底层就是基于上述TCP协议的方式。所以，业界基于上述TCP的方式进行抓包。

1.java层

Java.perform(function () {
    var HexDump = Java.use("com.android.internal.util.HexDump");
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");


    var SocketOutputStream = Java.use('java.net.SocketOutputStream');
    SocketOutputStream.socketWrite0.overload('java.io.FileDescriptor', '[B', 'int', 'int').implementation = function (fd, b, off, len) {
        // console.log("参数：", fd, b, off, len);
        // console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log("------------请求--------------")
        console.log(ByteString.of(b).utf8(), "\n");

        return this.socketWrite0(fd, b, off, len);
    };


    var SocketInputStream = Java.use('java.net.SocketInputStream');
    SocketInputStream.socketRead0.overload('java.io.FileDescriptor', '[B', 'int', 'int', 'int').implementation = function (fd, b, off, len, timeout) {

        var res = this.socketRead0(fd, b, off, len, timeout);

        console.log("------------响应-------------")
        // console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log(ByteString.of(b).utf8(), "\n");

        return res;

    };
});


// frida -UF -l  hook1.js
// console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));

2.so层

Java.perform(function () {
    const NET_Send = Module.getExportByName('libopenjdk.so', 'NET_Send');
    const NET_Read = Module.getExportByName('libopenjdk.so', 'NET_Read');


    Interceptor.attach(NET_Send, {
        onEnter(args) {
            console.log('write call'); // jni,jobj,data,off,len
            //console.log(hexdump(args[1], {length: args[2].toInt32()}));
            console.log(Memory.readByteArray(args[1], args[2].toInt32()));
        }
    });

    Interceptor.attach(NET_Read, {
        onEnter(args) {
            console.log('read call');
            this.buf = args[1];
        }, onLeave: function (retval) {
            retval |= 0; // Cast retval to 32-bit integer.
            if (retval <= 0) {
                return;
            }
            console.log(Memory.readByteArray(this.buf, retval));
        }
    });
});



// frida -UF -l  hook2.js

3.Https请求

HTTPS请求的底层也是基于TCP发送请求，只不过其中有加入了SSL证书相关。

所以，在基于TCP进行读写时候相关的模块不一样。

SSLSocketFactory sslSocketFactory = (SSLSocketFactory) SSLSocketFactory.getDefault();
SSLSocket socket = (SSLSocket) sslSocketFactory.createSocket("api.luffycity.com", 443);

// 1.构造请求头
StringBuilder sb = new StringBuilder();
sb.append("GET /api/v1/course/category/actual/?courseType=actual HTTP/1.1\r\n");
sb.append("host: api.luffycity.com\r\n");
sb.append("user-Agent: test\r\n");
sb.append("\r\n");

// 2.写入数据（发送数据）
// com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLOutputStream
OutputStream outputStream = socket.getOutputStream();
outputStream.write(sb.toString().getBytes());
Log.e("outputStream的类 => ", outputStream.getClass().getName());

// 3.读取数据（获取数据）
// com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLInputStream
InputStream inputStream = socket.getInputStream();
Log.e("inputStream的类 => ", inputStream.getClass().getName());

while (true) {
    byte[] buffer = new byte[1024];
    int len = inputStream.read(buffer, 0, buffer.length);
    if (len == -1) {
        break;
    }
    Log.e("读取响应内容 =>", new String(Arrays.copyOf(buffer, len)));
}

socket.close();

3.1 示例-客户端

示例：HTTPS003

1
2
3

implementation 'androidx.appcompat:appcompat:1.5.1'
implementation 'com.google.android.material:material:1.6.1'
implementation "com.squareup.okhttp3:okhttp:3.4.2"

1	<uses-permission android:name="android.permission.INTERNET" />

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <Button
            android:id="@+id/btn1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="发送请求1" />

        <Button
            android:id="@+id/btn2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="发送请求2" />
    </LinearLayout>
</LinearLayout>

package com.nb.https003;


import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.Socket;
import java.util.Arrays;

import javax.net.ssl.SSLSocket;
import javax.net.ssl.SSLSocketFactory;

import okhttp3.Call;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;
import okhttp3.ResponseBody;

public class MainActivity extends AppCompatActivity {
    private Button btn1;
    private Button btn2;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);


        btn1 = findViewById(R.id.btn1);
        btn1.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                doRequest1();
            }
        });


        btn2 = findViewById(R.id.btn2);
        btn2.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                doRequest2();
            }
        });
    }


    private void doRequest1() {
        new Thread() {
            @Override
            public void run() {
                try {
                    OkHttpClient client = new OkHttpClient.Builder().build();

                    Request req = new Request.Builder().url("https://api.luffycity.com/api/v1/course/category/actual/?courseType=actual").build();
                    Call call = client.newCall(req);
                    try {
                        Response res = call.execute();
                        ResponseBody resBody = res.body();
                        String dataString = resBody.string();
                        Log.e("=======>", dataString);

                    } catch (IOException ex) {
                        Log.e("----->", "请求失败" + ex.toString());
                    }

                } catch (Exception ex) {
                    Log.e("Main", "网络请求异常" + ex);
                }
            }
        }.start();
    }

    private void doRequest2() {
        new Thread() {
            @Override
            public void run() {
                try {
                    // https://api.luffycity.com/api/v1/course/actual/?limit=1&offset=0&category_id=9999
                    SSLSocketFactory sslSocketFactory = (SSLSocketFactory) SSLSocketFactory.getDefault();
                    SSLSocket socket = (SSLSocket) sslSocketFactory.createSocket("api.luffycity.com", 443);

                    // 1.构造请求头
                    StringBuilder sb = new StringBuilder();
                    sb.append("GET /api/v1/course/category/actual/?courseType=actual HTTP/1.1\r\n");
                    sb.append("host: api.luffycity.com\r\n");
                    sb.append("user-Agent: test\r\n");
                    sb.append("\r\n");

                    // 2.写入数据（发送数据）
                    // com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLOutputStream
                    OutputStream outputStream = socket.getOutputStream();
                    outputStream.write(sb.toString().getBytes());
                    Log.e("outputStream的类 => ", outputStream.getClass().getName());

                    // 3.读取数据（获取数据）
                    // com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLInputStream
                    InputStream inputStream = socket.getInputStream();
                    Log.e("inputStream的类 => ", inputStream.getClass().getName());

                    while (true) {
                        byte[] buffer = new byte[1024];
                        int len = inputStream.read(buffer, 0, buffer.length);
                        if (len == -1) {
                            break;
                        }
                        Log.e("读取响应内容 =>", new String(Arrays.copyOf(buffer, len)));
                    }

                    socket.close();

                } catch (Exception ex) {
                    Log.e("Main", "网络请求异常" + ex);
                }
            }
        }.start();
    }
}

3.2 Hook抓包【java】

1.发送请求

// com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLOutputStream
OutputStream outputStream = socket.getOutputStream();
outputStream.write(sb.toString().getBytes());
Log.e("outputStream的类 => ", outputStream.getClass().getName());

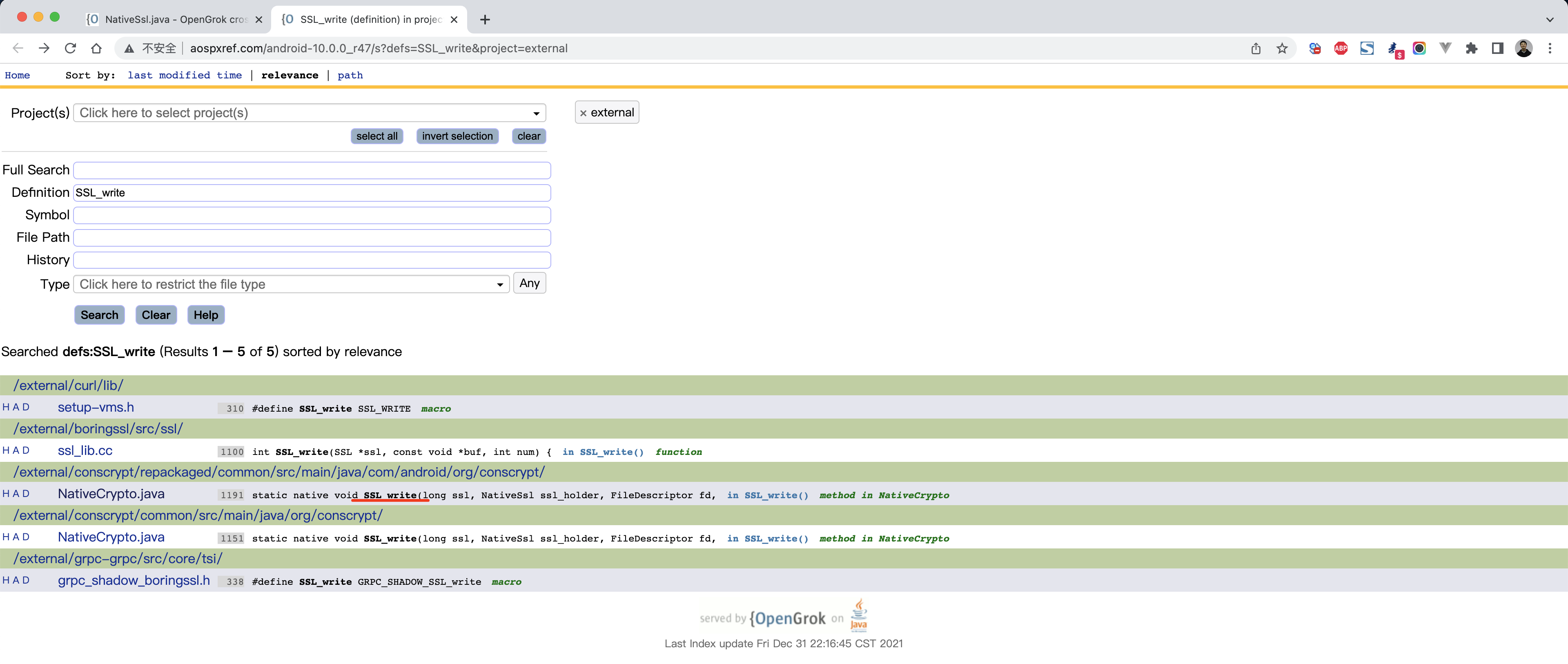

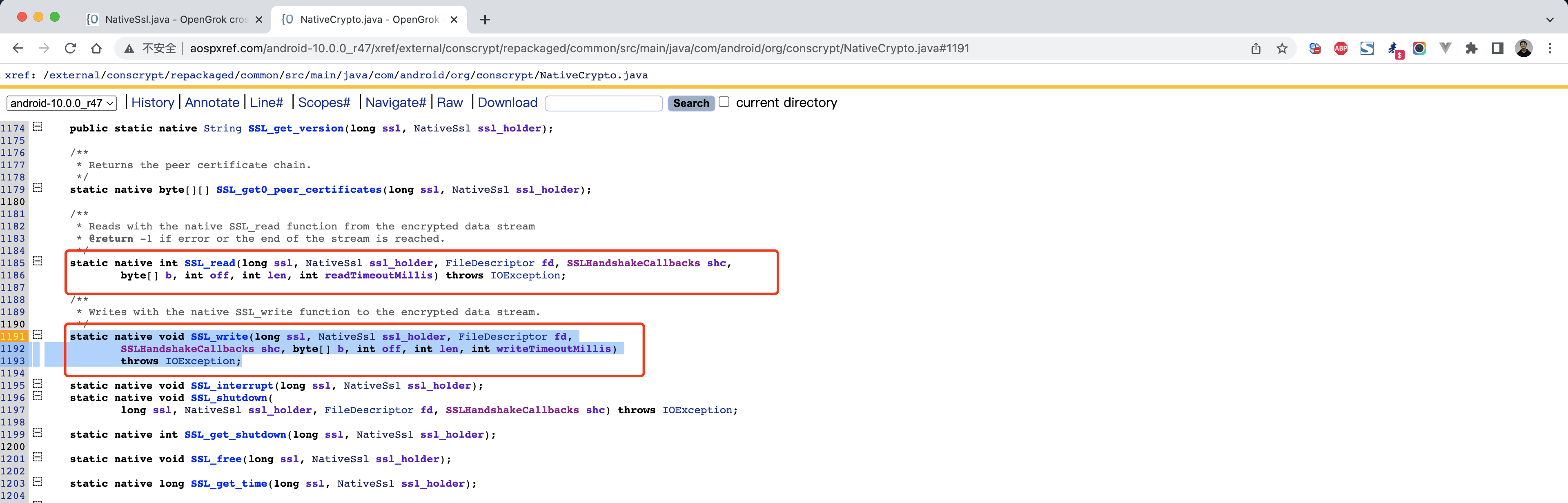

安卓源码地址：

1	http://aospxref.com/android-10.0.0_r47/xref/external/conscrypt/common/src/main/java/org/conscrypt/ConscryptFileDescriptorSocket.java

http://aospxref.com/android-10.0.0_r47/xref/external/conscrypt/repackaged/common/src/main/java/com/android/org/conscrypt/NativeCrypto.java#1185

java.lang.Throwable
        at com.android.org.conscrypt.NativeCrypto.SSL_write(Native Method)
        at com.android.org.conscrypt.NativeSsl.write(NativeSsl.java:426)
        at com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLOutputStream.write(ConscryptFileDescriptorSocket.java:626)
        at java.io.OutputStream.write(OutputStream.java:75)
        at com.nb.ssldemo2.MainActivity$2.run(MainActivity.java:55)

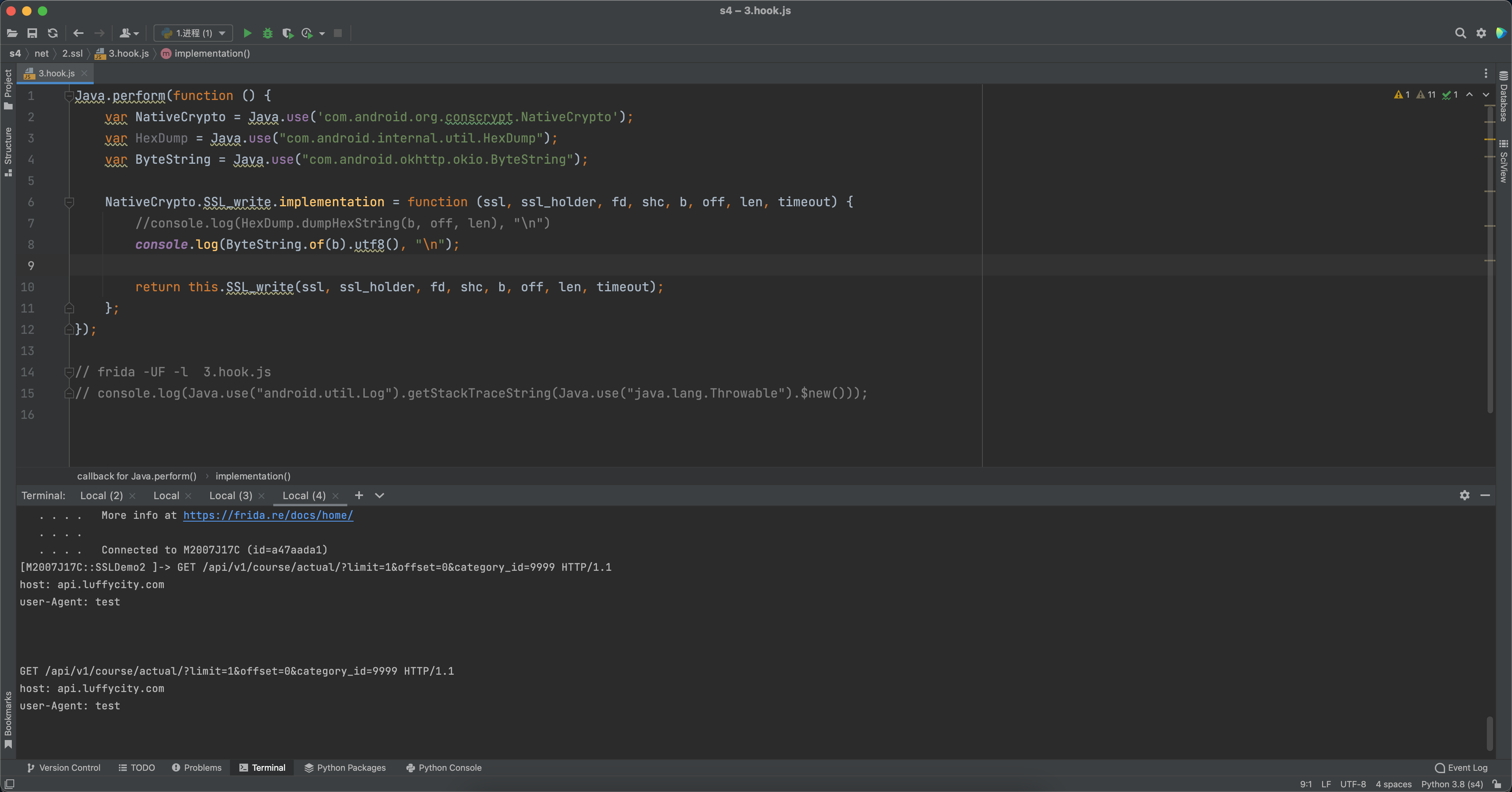

直接hook来进行抓包：

Java.perform(function () {
    var NativeCrypto = Java.use('com.android.org.conscrypt.NativeCrypto');
    var HexDump = Java.use("com.android.internal.util.HexDump");
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");

    NativeCrypto.SSL_write.implementation = function (ssl, ssl_holder, fd, shc, b, off, len, timeout) {
        //console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log(ByteString.of(b).utf8(), "\n");

        return this.SSL_write(ssl, ssl_holder, fd, shc, b, off, len, timeout);
    };
});

// frida -UF -l  3.hook.js
// console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));

2.响应获取

// com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLInputStream
InputStream inputStream = socket.getInputStream();
Log.e("inputStream的类 => ", inputStream.getClass().getName());

while (true) {
    byte[] buffer = new byte[1024];
    int len = inputStream.read(buffer, 0, buffer.length);
    if (len == -1) {
        break;
    }
    Log.e("读取相应内容 =>", new String(Arrays.copyOf(buffer, len)));
}

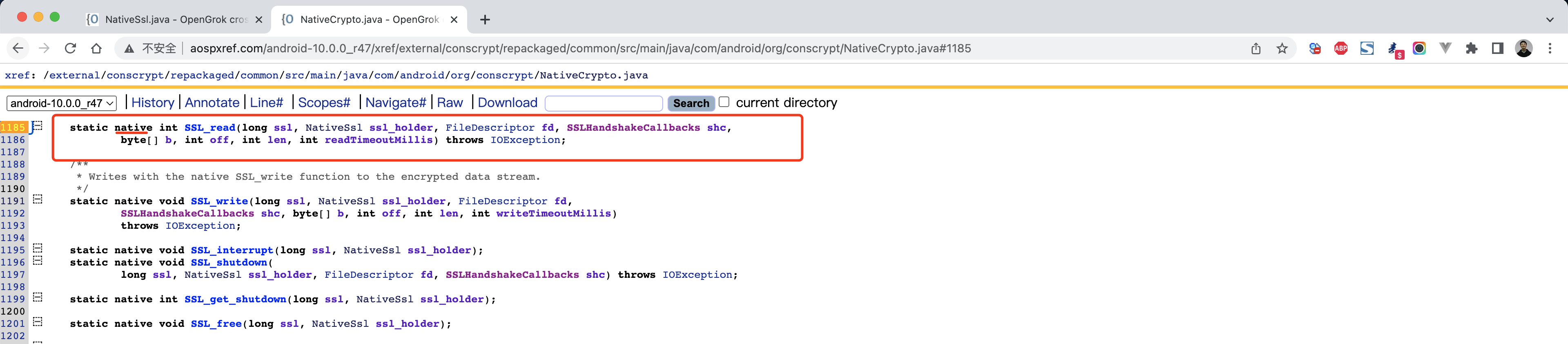

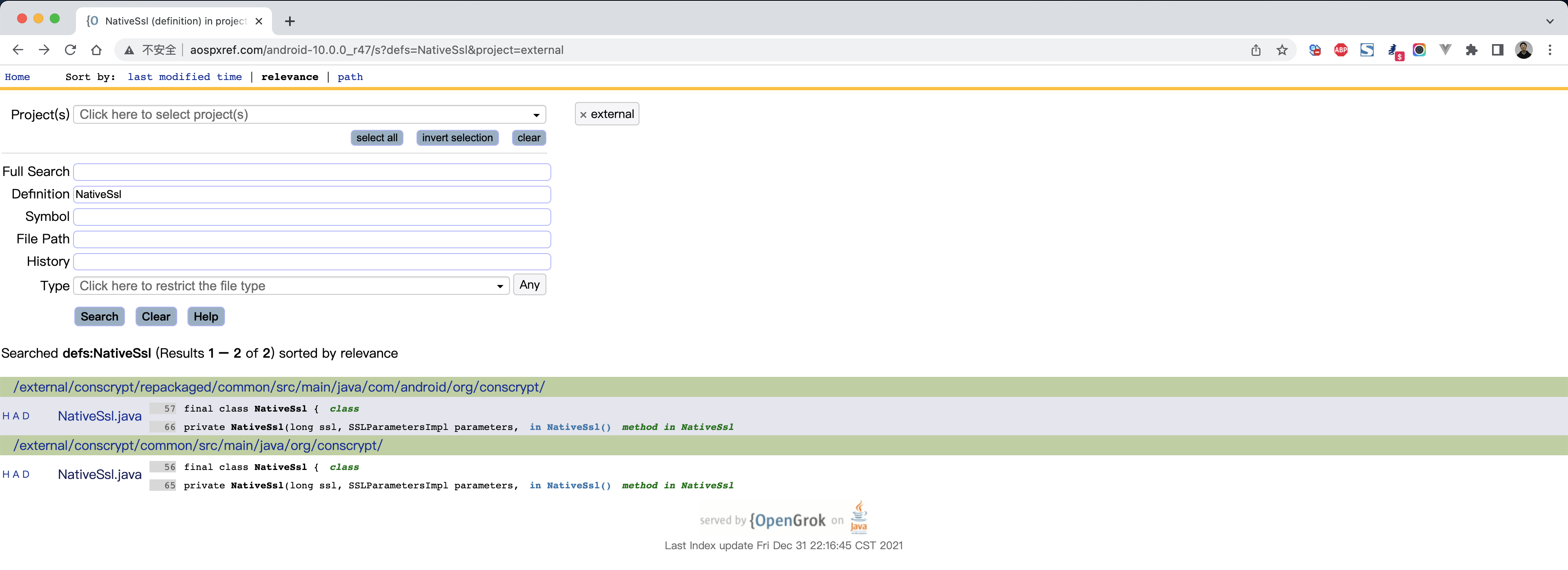

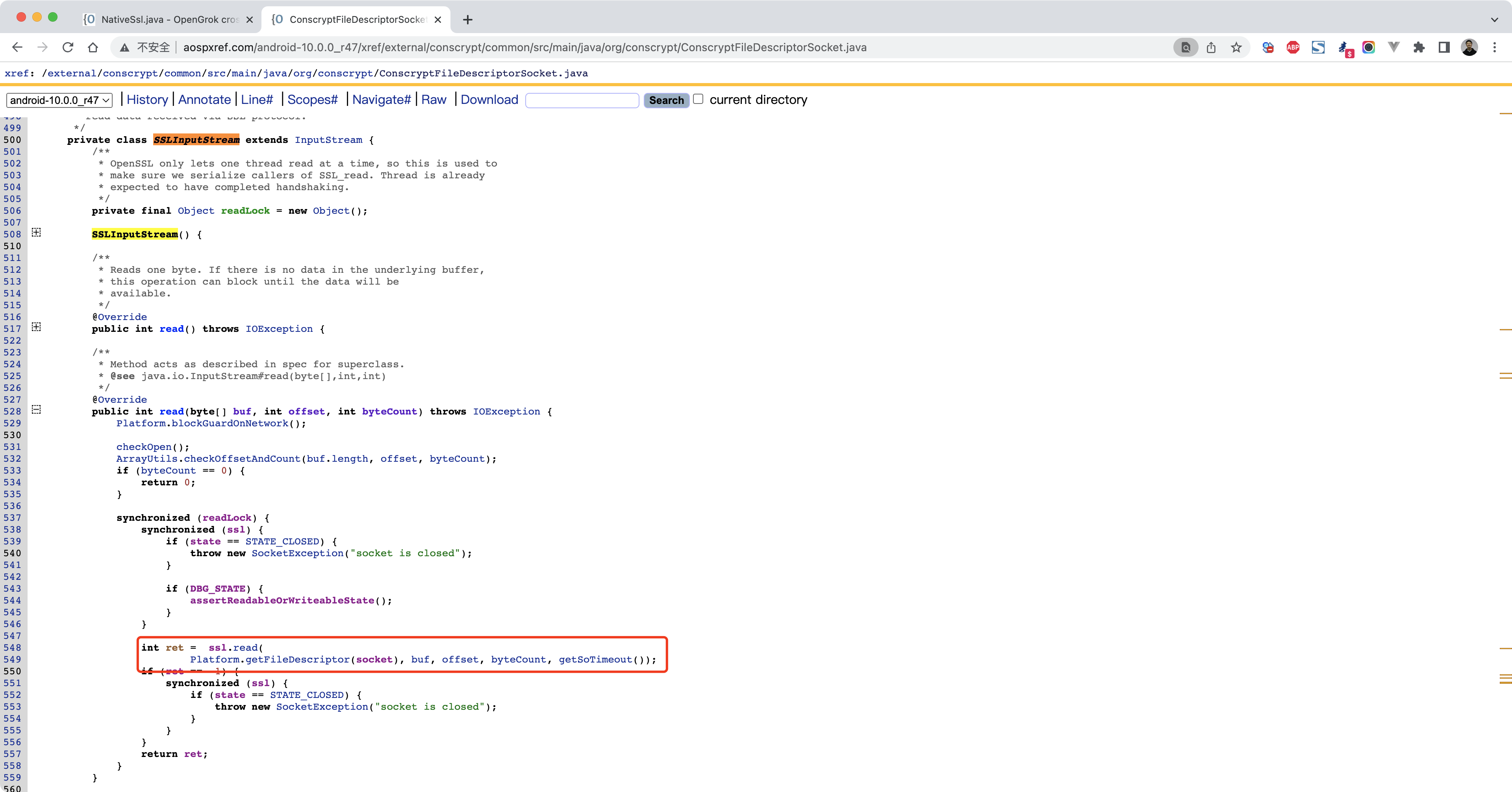

安卓源码地址：

1	http://aospxref.com/android-10.0.0_r47/xref/external/conscrypt/common/src/main/java/org/conscrypt/ConscryptFileDescriptorSocket.java

http://aospxref.com/android-10.0.0_r47/xref/external/conscrypt/repackaged/common/src/main/java/com/android/org/conscrypt/NativeCrypto.java#1185

java.lang.Throwable
        at com.android.org.conscrypt.NativeCrypto.SSL_read(Native Method)
        at com.android.org.conscrypt.NativeSsl.read(NativeSsl.java:411)
        at com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLInputStream.read(ConscryptFileDescriptorSocket.java:549)
        at com.nb.ssldemo2.MainActivity$2.run(MainActivity.java:65)

直接hook来进行抓包：

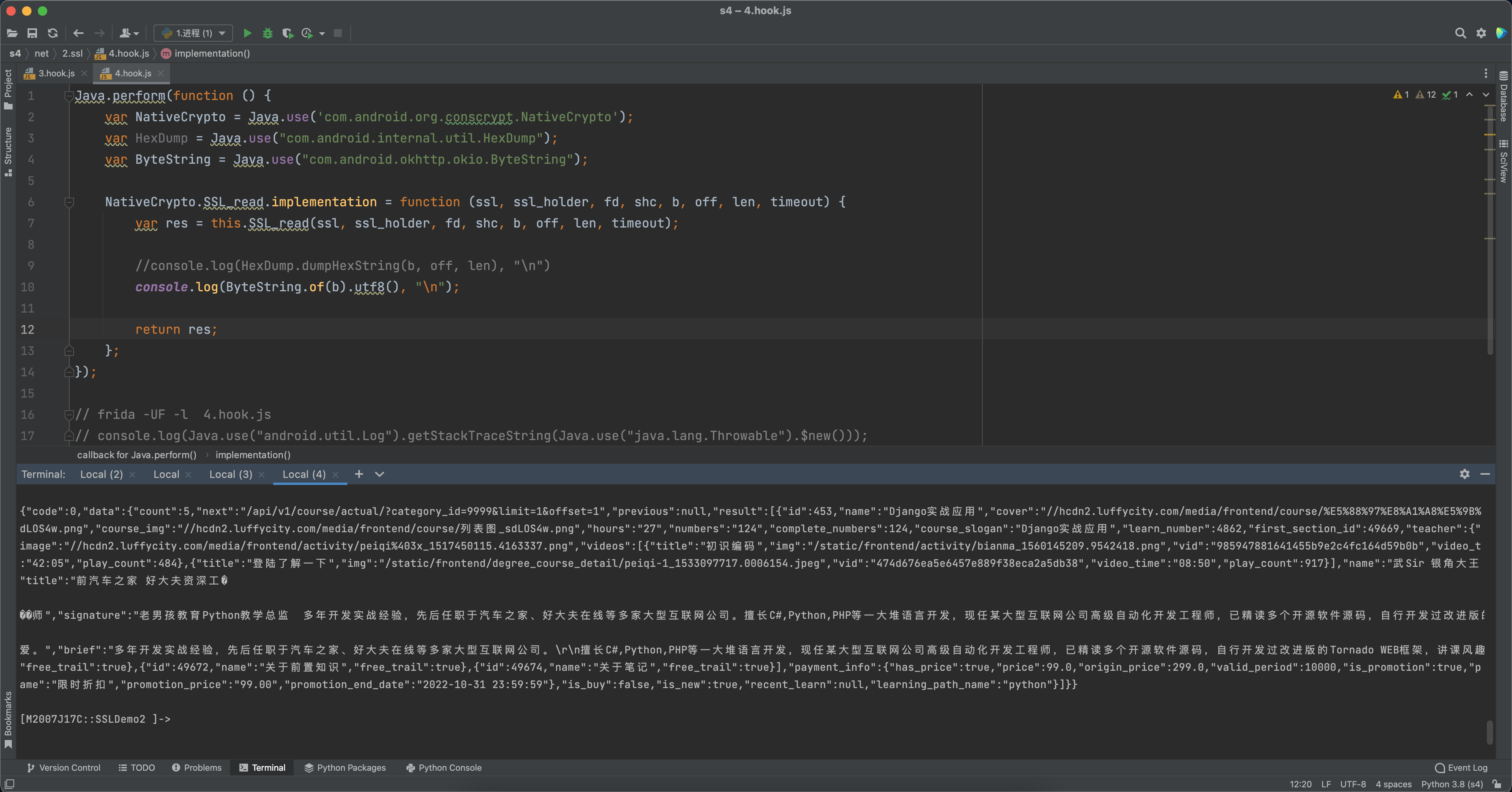

Java.perform(function () {
    var NativeCrypto = Java.use('com.android.org.conscrypt.NativeCrypto');
    var HexDump = Java.use("com.android.internal.util.HexDump");
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");

    NativeCrypto.SSL_read.implementation = function (ssl, ssl_holder, fd, shc, b, off, len, timeout) {
        var res = this.SSL_read(ssl, ssl_holder, fd, shc, b, off, len, timeout);

        //console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log(ByteString.of(b).utf8(), "\n");

        return res;
    };
});

// frida -UF -l  4.hook.js
// console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));

3.3 Hook抓包【so】

上述的请求和写入，都是在java层面进行hook的获取，实际上真正的请求会调用so层的代码，最终将请求发送过去。

1.寻找so文件

一般情况下底层是基于openssl将https请求发送出去，而openssl基于的是libssl.so的文件。

寻找SSL_write和SSL_read的hook的脚本：

Java.perform(function () {
    const apiResolver = new ApiResolver('module');
    // 包含：libttboringssl.so 或 libssl.so
    // 'exports:*lib*ssl*!SSL_*'
    apiResolver.enumerateMatches('exports:*lib*ssl*!SSL_*').forEach(function (v) {
        if (v.name.indexOf('SSL_write') > 0) {
            // SSL_write = v.address;
            console.log(v.name);
        } else if (v.name.indexOf('SSL_read') > 0) {
            // SSL_read = v.address;
            console.log(v.name);
        }
    });
});

2.请求和响应

Java.perform(function () {
    const SSL_write = Module.getExportByName('libssl.so', 'SSL_write');
    const SSL_read = Module.getExportByName('libssl.so', 'SSL_read');

    Interceptor.attach(SSL_write, {
        onEnter(args) {
            console.log('write call');
            //console.log(args[0]); // ssl
            //console.log(args[1]); // buffer
            //console.log(args[2]); // len
            //console.log(hexdump(args[1], {length: args[2].toInt32()}));
            console.log(Memory.readByteArray(args[1], parseInt(args[2])));
        }
    });

    Interceptor.attach(SSL_read, {
        onEnter(args) {
            console.log('read call');
            this.buf = args[1];
        }, onLeave: function (retval) {
            retval |= 0; // Cast retval to 32-bit integer.
            if (retval <= 0) {
                return;
            }
            console.log(Memory.readByteArray(this.buf, retval));
        }
    });
});

// frida -UF -l  7.hook.js
// frida -U -f com.nb.ssldemo2 -l 7.hook.js --no-pause

4 其他-案例

1.抽屉新热榜

版本：v3.5.8

1.无法抓包

登录页面，无法抓包。

2.NO_PROXY

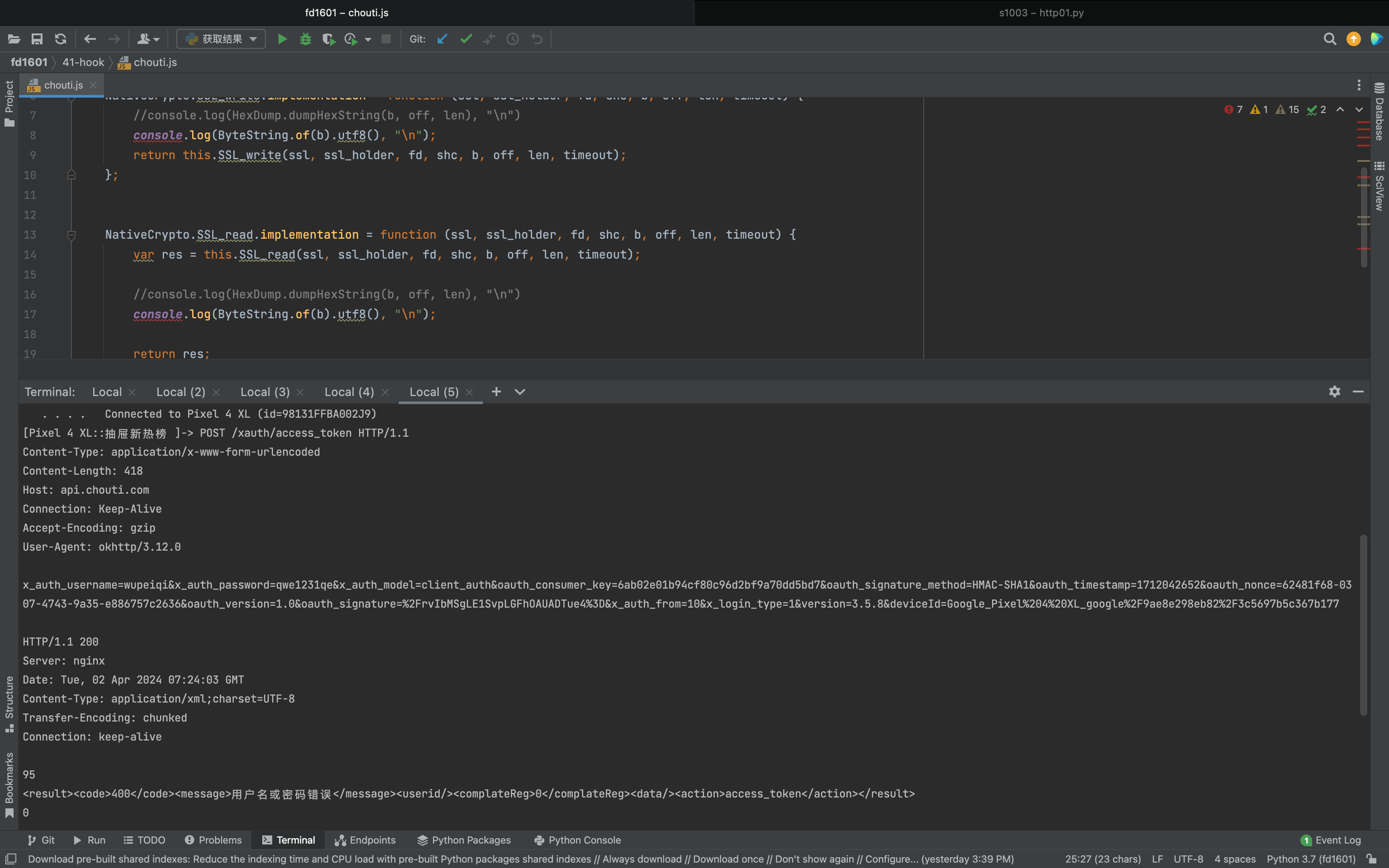

3.底层抓包

如果是发送的https请求，底层会执行：NativeCrypto.SSL_write 和 NativeCrypto.SSL_read

Java.perform(function () {
    var NativeCrypto = Java.use('com.android.org.conscrypt.NativeCrypto');
    var HexDump = Java.use("com.android.internal.util.HexDump");
    var ByteString = Java.use("com.android.okhttp.okio.ByteString");

    NativeCrypto.SSL_write.implementation = function (ssl, ssl_holder, fd, shc, b, off, len, timeout) {
        //console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log(ByteString.of(b).utf8(), "\n");
        return this.SSL_write(ssl, ssl_holder, fd, shc, b, off, len, timeout);
    };

    NativeCrypto.SSL_read.implementation = function (ssl, ssl_holder, fd, shc, b, off, len, timeout) {
        var res = this.SSL_read(ssl, ssl_holder, fd, shc, b, off, len, timeout);

        //console.log(HexDump.dumpHexString(b, off, len), "\n")
        console.log(ByteString.of(b).utf8(), "\n");

        return res;
    };
});

2.B站

2.1 无法抓包

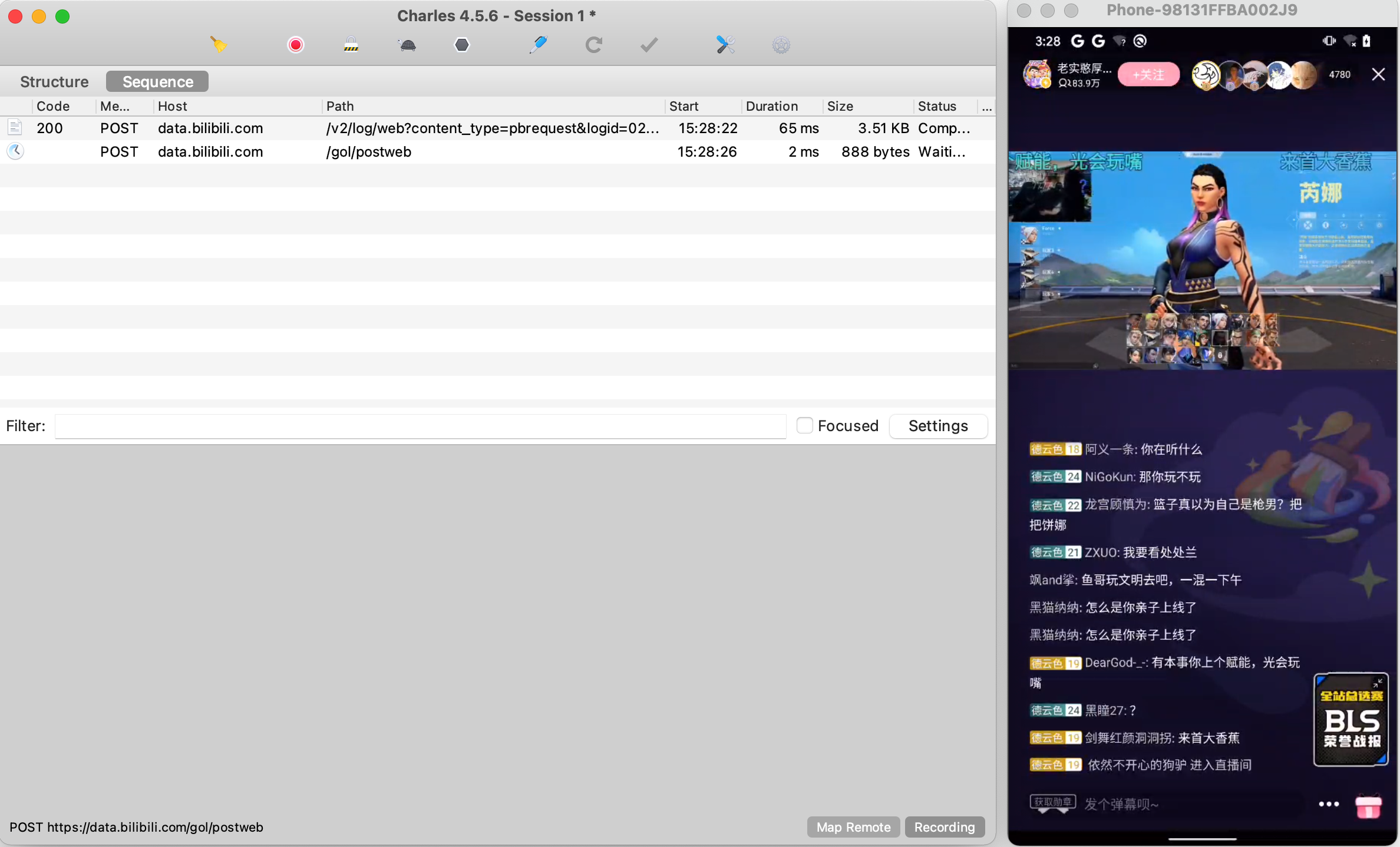

直播间弹幕页面，Charles抓不到包。

2.2 猜测，是否TCP？

在SocketInputStream中读取内容，发现有数据不断返回，应该是TCP请求返回的内容。

Java.perform(function () {
    var HexDump = Java.use("com.android.internal.util.HexDump");

    var SocketInputStream = Java.use('java.net.SocketInputStream');
    SocketInputStream.socketRead0.overload('java.io.FileDescriptor', '[B', 'int', 'int', 'int').implementation = function (fd, b, off, len, timeout) {
        var res = this.socketRead0(fd, b, off, len, timeout);
        console.log("------------响应-------------")
        try{
            console.log(HexDump.dumpHexString(b, off, len), "\n")
            // console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
        }catch (e) {
            console.log(e, "\n");
        }
        return res;
    };
});

// frida -UF -l  hook1.js

java.lang.Throwable
        at java.net.SocketInputStream.socketRead0(Native Method)
        at java.net.SocketInputStream.socketRead(SocketInputStream.java:119)
        at java.net.SocketInputStream.read(SocketInputStream.java:176)
        at java.net.SocketInputStream.read(SocketInputStream.java:144)
        at okio.l$b.j5(BL:4)
        at okio.a$b.j5(BL:2)
        at okio.q.request(BL:3)
        at okio.q.c4(BL:1)
        at okio.q.readInt(BL:1)
        at com.bilibili.bililive.infra.socket.core.codec.reader.a.t(BL:1) 【看这里】
        at com.bilibili.bililive.infra.socket.core.codec.reader.a.s(BL:1)
        at com.bilibili.bililive.infra.socketclient.SocketClient.J(BL:2)

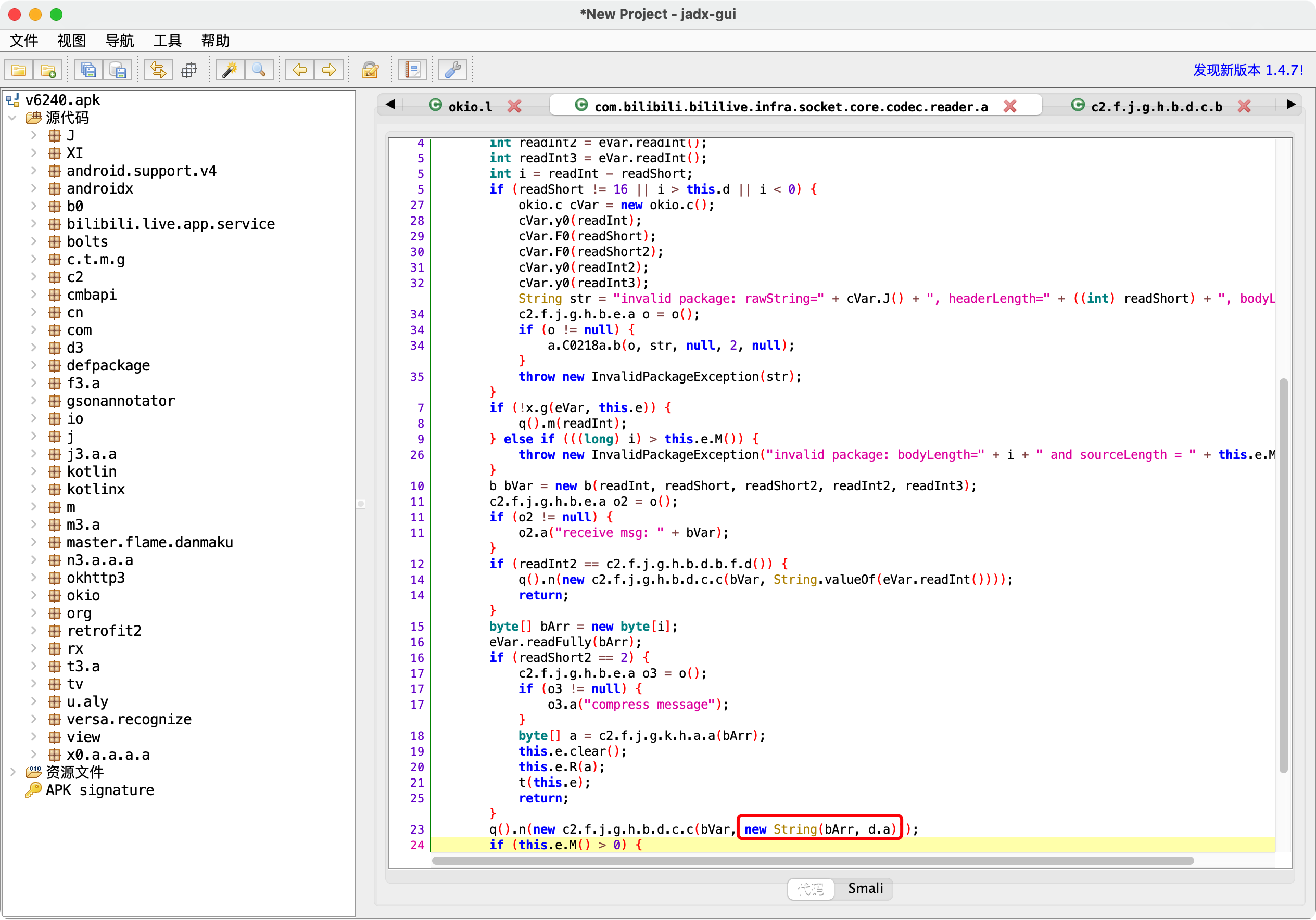

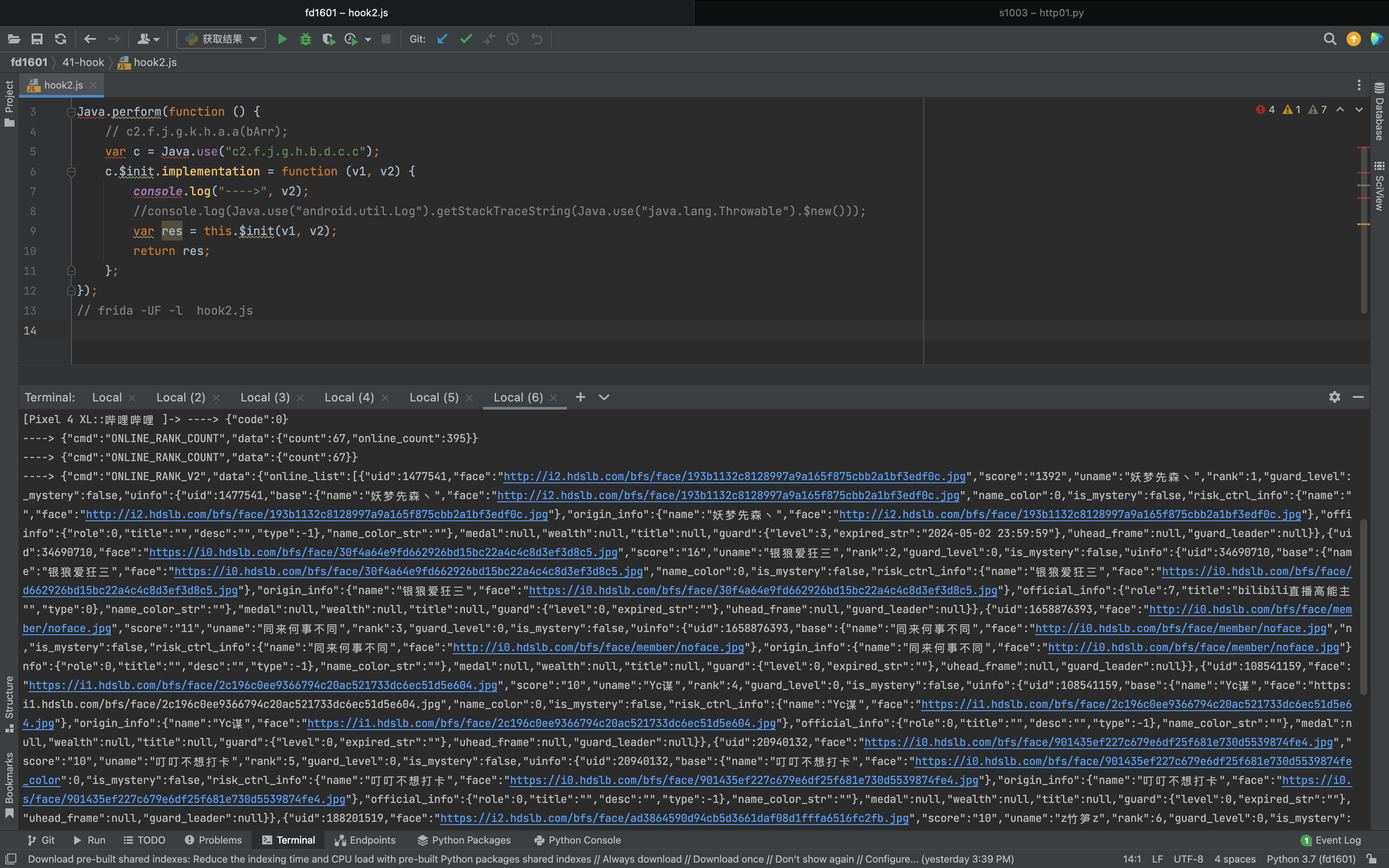

基于Hook响应内容：

Java.perform(function () {
    // c2.f.j.g.k.h.a.a(bArr);
    var c = Java.use("c2.f.j.g.h.b.d.c.c");
    c.$init.implementation = function (v1, v2) {
        console.log("---->", v2);
        //console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
        var res = this.$init(v1, v2);
        return res;
    };
});
// frida -UF -l  hook2.js

2.3 猜测，socket连接

如果是TCP请求，那应该会有socket对象的常见去连接远程服务器。

Socket socket = new Socket("192.168.43.252", 9002);
或
Socket socket = new Socket();
InetAddress serverAddress = InetAddress.getByName("192.168.43.252");
SocketAddress address = new InetSocketAddress(serverAddress, 8080);
socket.connect(address,10000)

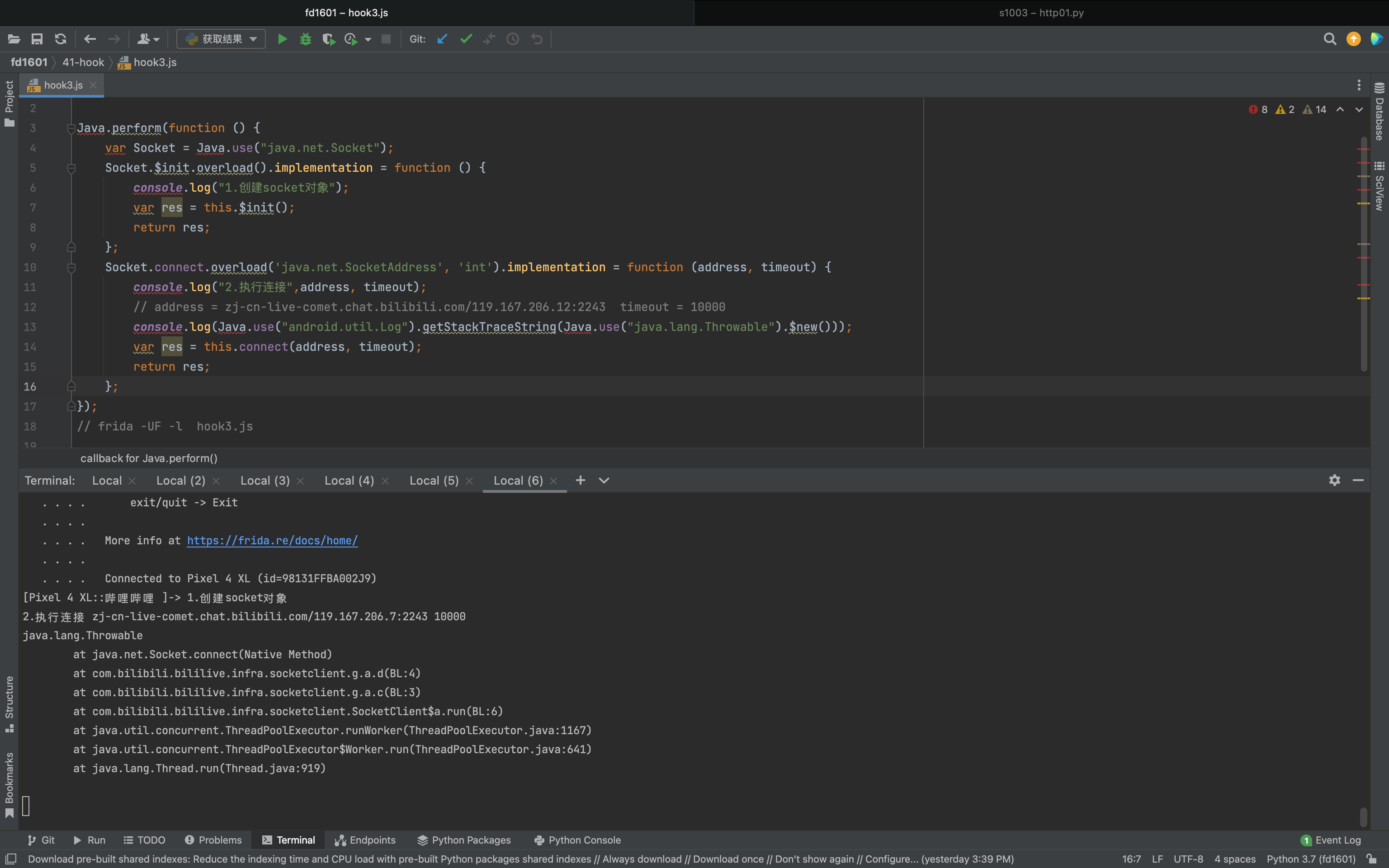

所以，可以尝试编写Hook脚本去获取IP地址和端口等信息。

Java.perform(function () {
    var Socket = Java.use("java.net.Socket");
    Socket.$init.overload().implementation = function () {
        console.log("1.创建socket对象");
        var res = this.$init();
        return res;
    };
    Socket.connect.overload('java.net.SocketAddress', 'int').implementation = function (address, timeout) {
        console.log("2.执行连接",address, timeout);
        // address = zj-cn-live-comet.chat.bilibili.com/119.167.206.12:2243  timeout = 10000
        console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
        var res = this.connect(address, timeout);
        return res;
    };
});
// frida -UF -l  hook3.js

java.lang.Throwable
        at java.net.Socket.connect(Native Method)
        at com.bilibili.bililive.infra.socketclient.g.a.d(BL:4)
        at com.bilibili.bililive.infra.socketclient.g.a.c(BL:3)
        at com.bilibili.bililive.infra.socketclient.SocketClient$a.run(BL:6)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
        at java.lang.Thread.run(Thread.java:919)

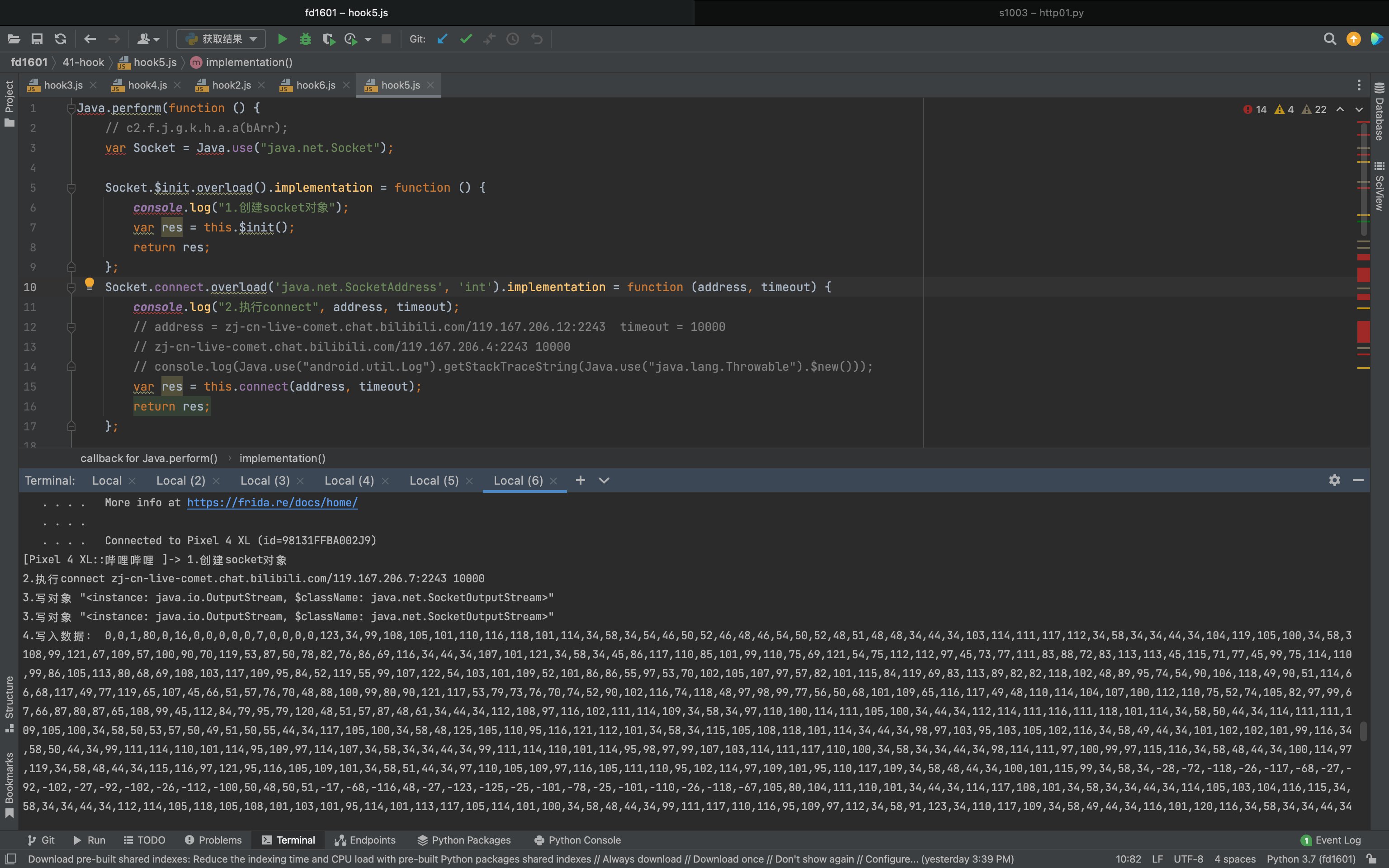

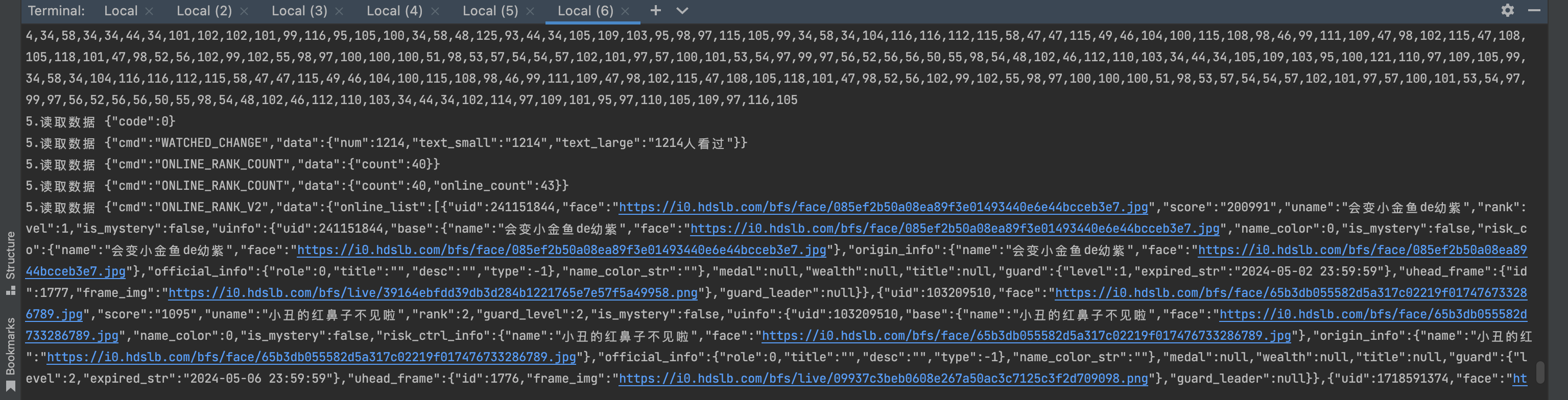

2.4 猜测，发送数据

当连接成功后，手机端会向后端发送请求（告诉后端进入的是那个直播间），然后后端才会源源不断的返回数据。

Java.perform(function () {
    // c2.f.j.g.k.h.a.a(bArr);
    var Socket = Java.use("java.net.Socket");

    Socket.$init.overload().implementation = function () {
        console.log("1.创建socket对象");
        var res = this.$init();
        return res;
    };

    Socket.connect.overload('java.net.SocketAddress', 'int').implementation = function (address, timeout) {
        console.log("2.执行connect", address, timeout);
        // address = zj-cn-live-comet.chat.bilibili.com/119.167.206.12:2243  timeout = 10000
        // console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
        var res = this.connect(address, timeout);
        return res;
    };


    Socket.getOutputStream.implementation = function () {
        var res = this.getOutputStream();
        console.log("3.写对象", JSON.stringify(res))
        return res;
    }

    var SocketOutputStream = Java.use("java.net.SocketOutputStream");
    SocketOutputStream.write.overload('[B', 'int', 'int').implementation = function (v1, v2, v3) {
        console.log("4.写入数据：", v1)
        // console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
        var res = this.write(v1, v2, v3);
        return res;
    }


    var c = Java.use("c2.f.j.g.h.b.d.c.c");
    c.$init.implementation = function (v1, v2) {
        console.log("5.读取数据", v2);
        //console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()));
        var res = this.$init(v1, v2);
        return res;
    };

});
// frida -UF -l  hook5.js

接下来，根据写入数据时的调用栈，找到数据加密的算法。

java.lang.Throwable
        at java.net.SocketOutputStream.write(Native Method)
        at okio.l$a.A3(BL:5)
        at okio.a$a.A3(BL:6)
        at okio.p.flush(BL:3)
        at com.bilibili.bililive.infra.socketclient.f.b(BL:2)
        at com.bilibili.bililive.infra.socketclient.f.c(BL:2) 【看这里】
        at com.bilibili.bililive.infra.socketclient.SocketClient$b.run(BL:3)
        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:462)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:301)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
        at java.lang.Thread.run(Thread.java:919)

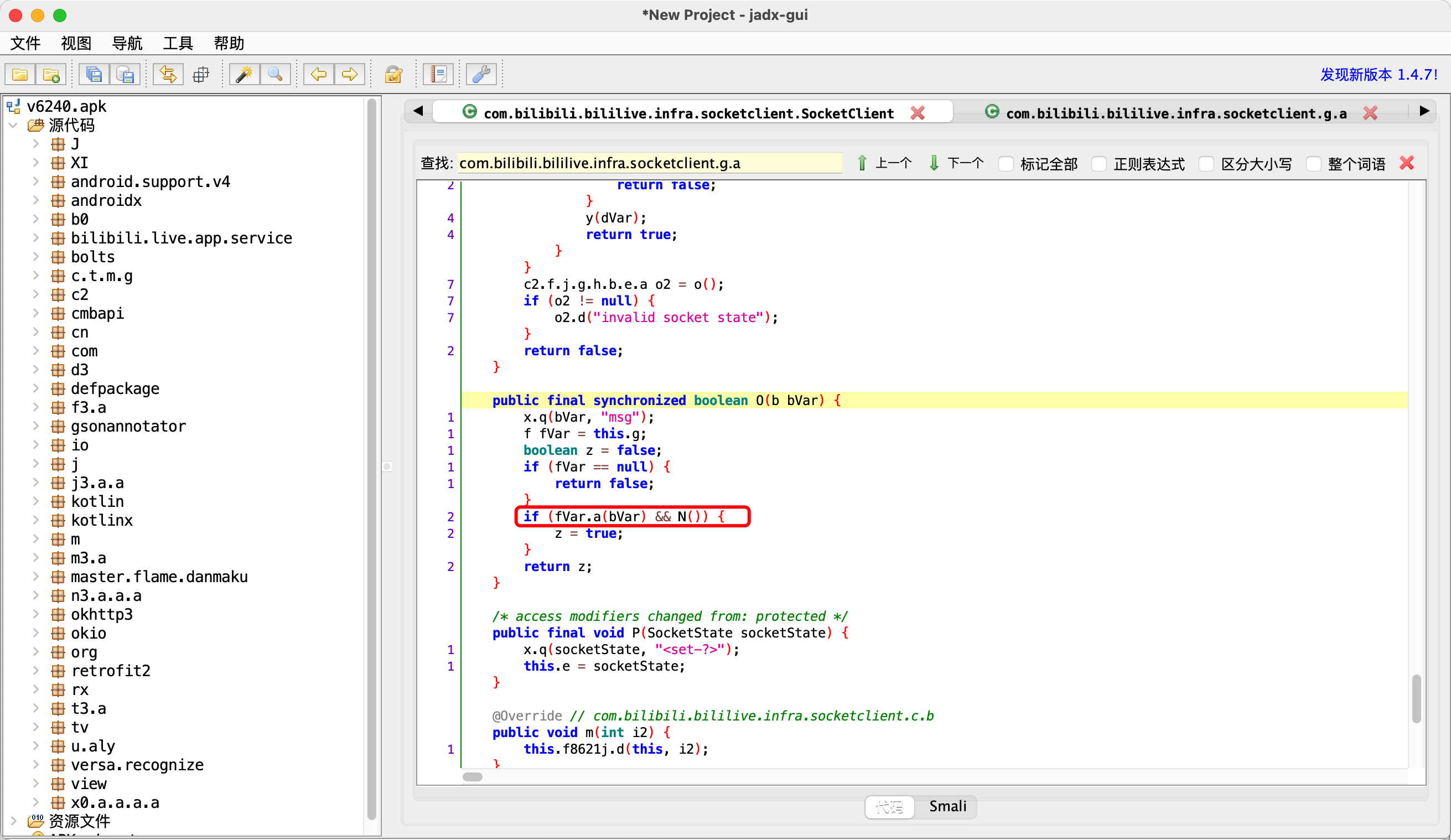

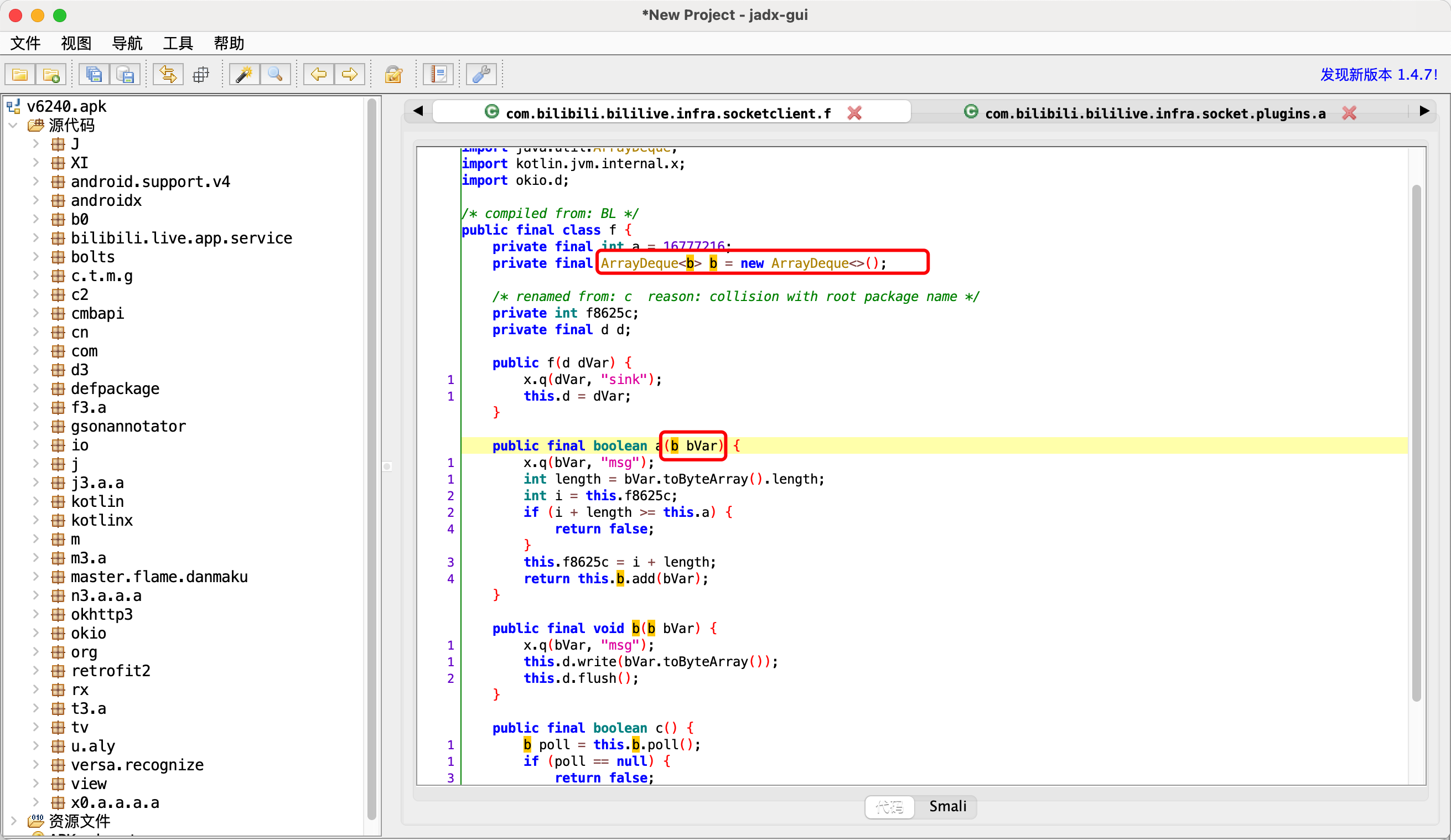

上图a函数的调用栈
java.lang.Throwable
        at com.bilibili.bililive.infra.socketclient.f.a(Native Method)
        at com.bilibili.bililive.infra.socketclient.SocketClient.O(BL:2)  【看这里】
        at com.bilibili.bililive.infra.socket.plugins.a.f(BL:2)
        at c2.f.j.g.h.b.c.f(BL:4)
        at com.bilibili.bililive.infra.socketclient.SocketClient.K(BL:4)
        at com.bilibili.bililive.infra.socketclient.SocketClient.z(BL:8)
        at com.bilibili.bililive.infra.socketclient.SocketClient.q(BL:1)
        at com.bilibili.bililive.infra.socketclient.SocketClient$a$a.c(BL:1)
        at com.bilibili.bililive.infra.socketclient.g.a.c(BL:6)
        at com.bilibili.bililive.infra.socketclient.SocketClient$a.run(BL:6)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
        at java.lang.Thread.run(Thread.java:919)

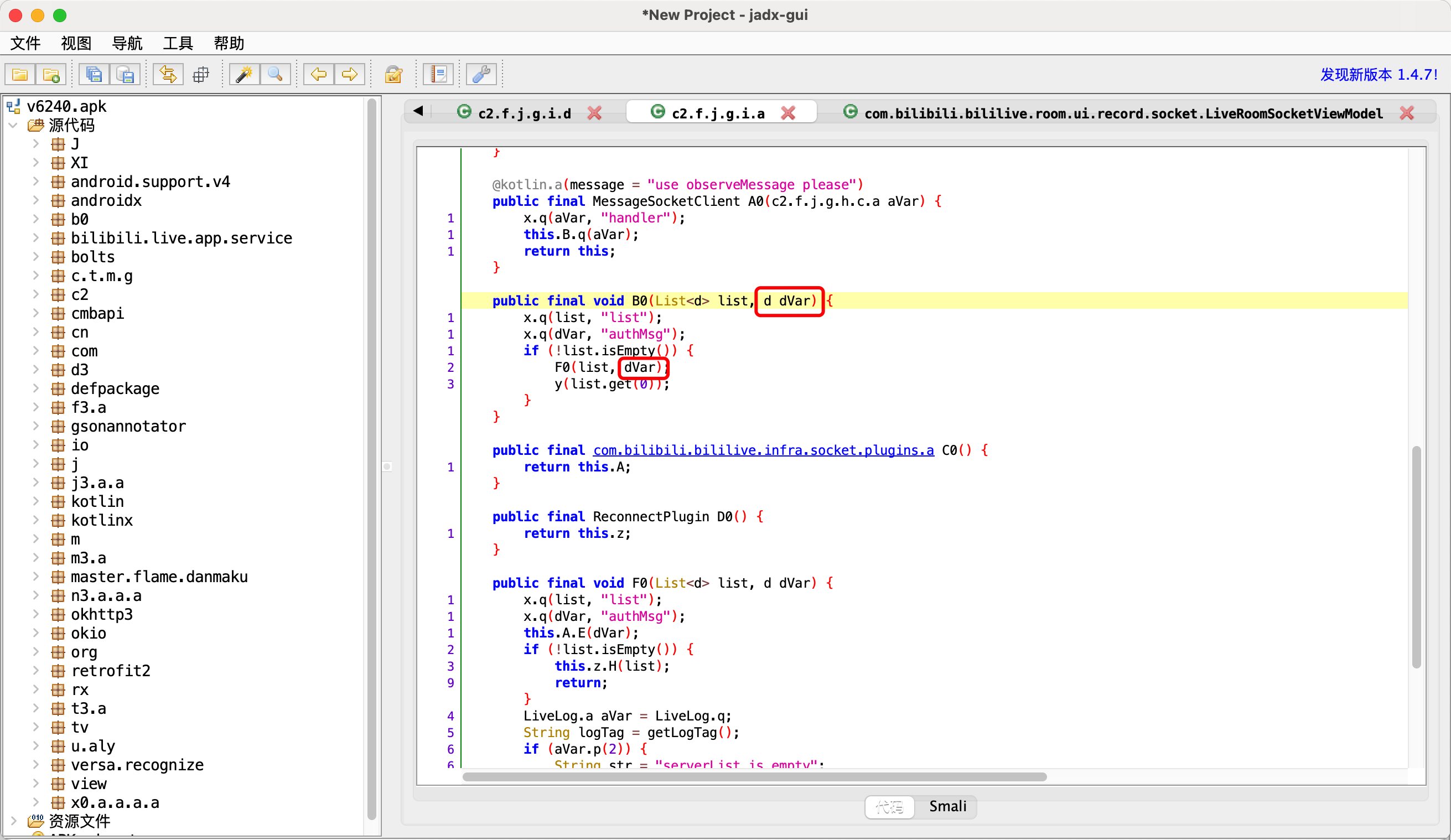

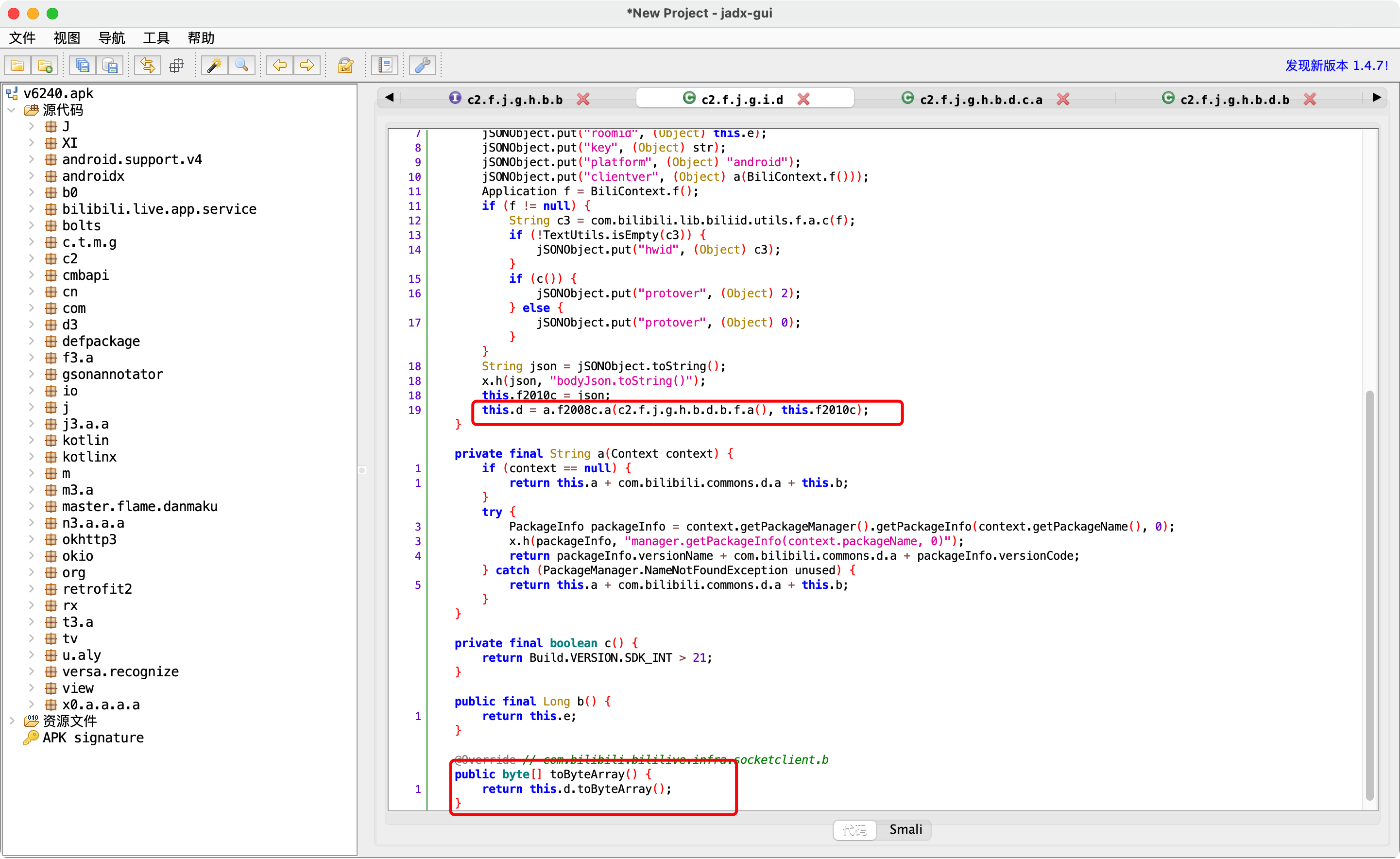

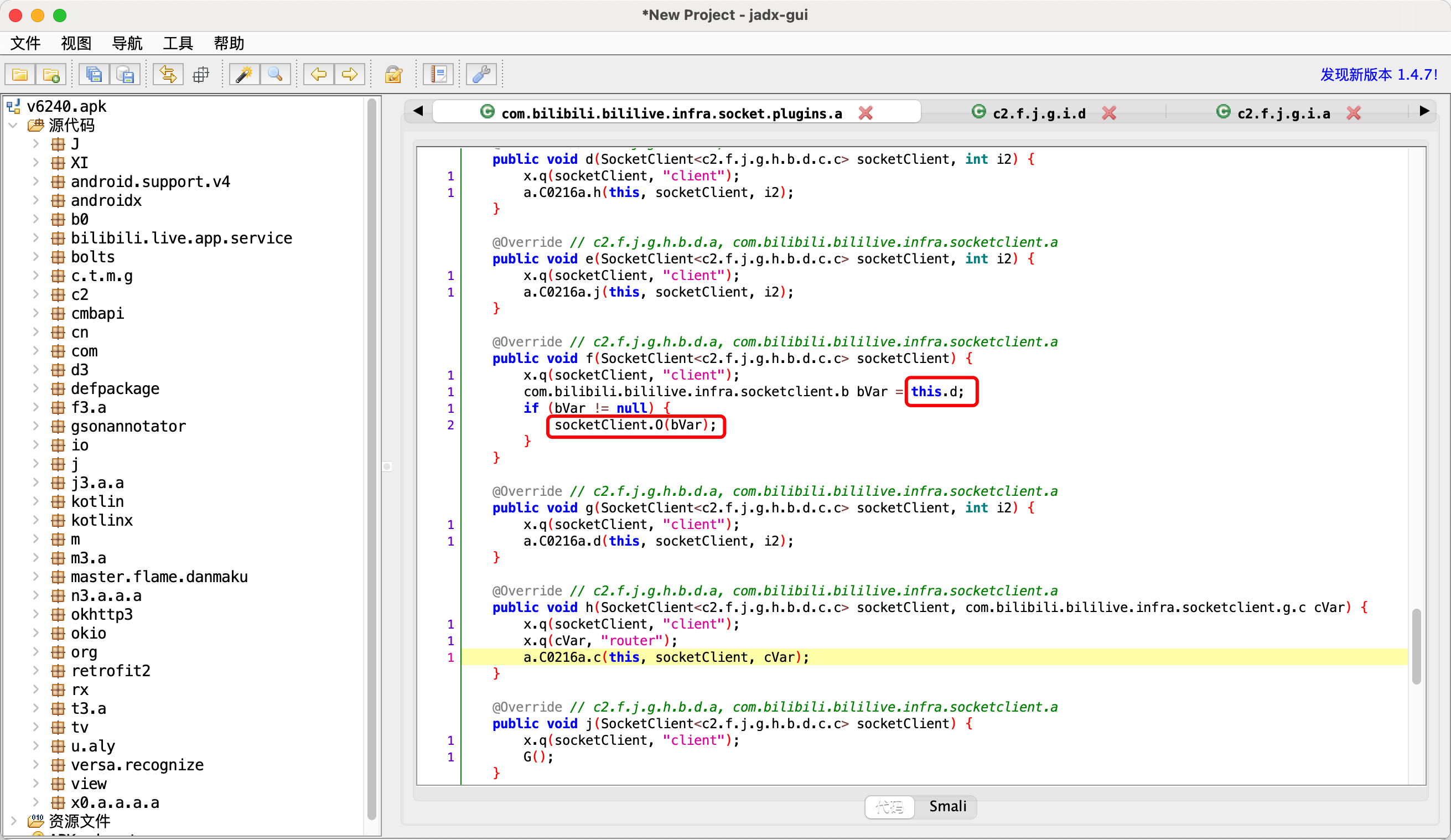

1.bVar类型

可以Hook找到bVar到底是谁的对象？

1	"<instance: com.bilibili.bililive.infra.socketclient.b, $className: c2.f.j.g.i.d>"

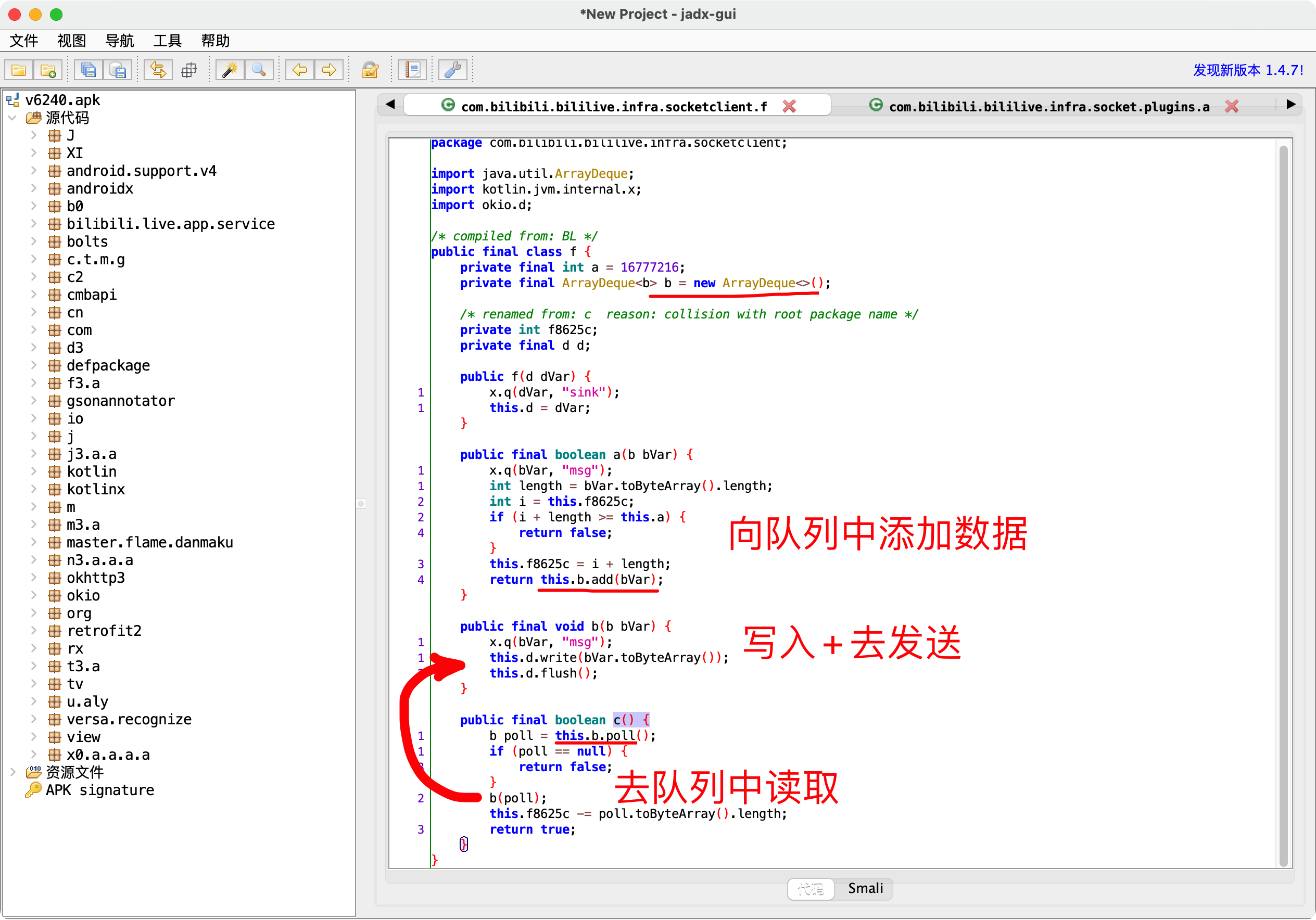

2.fvar.a

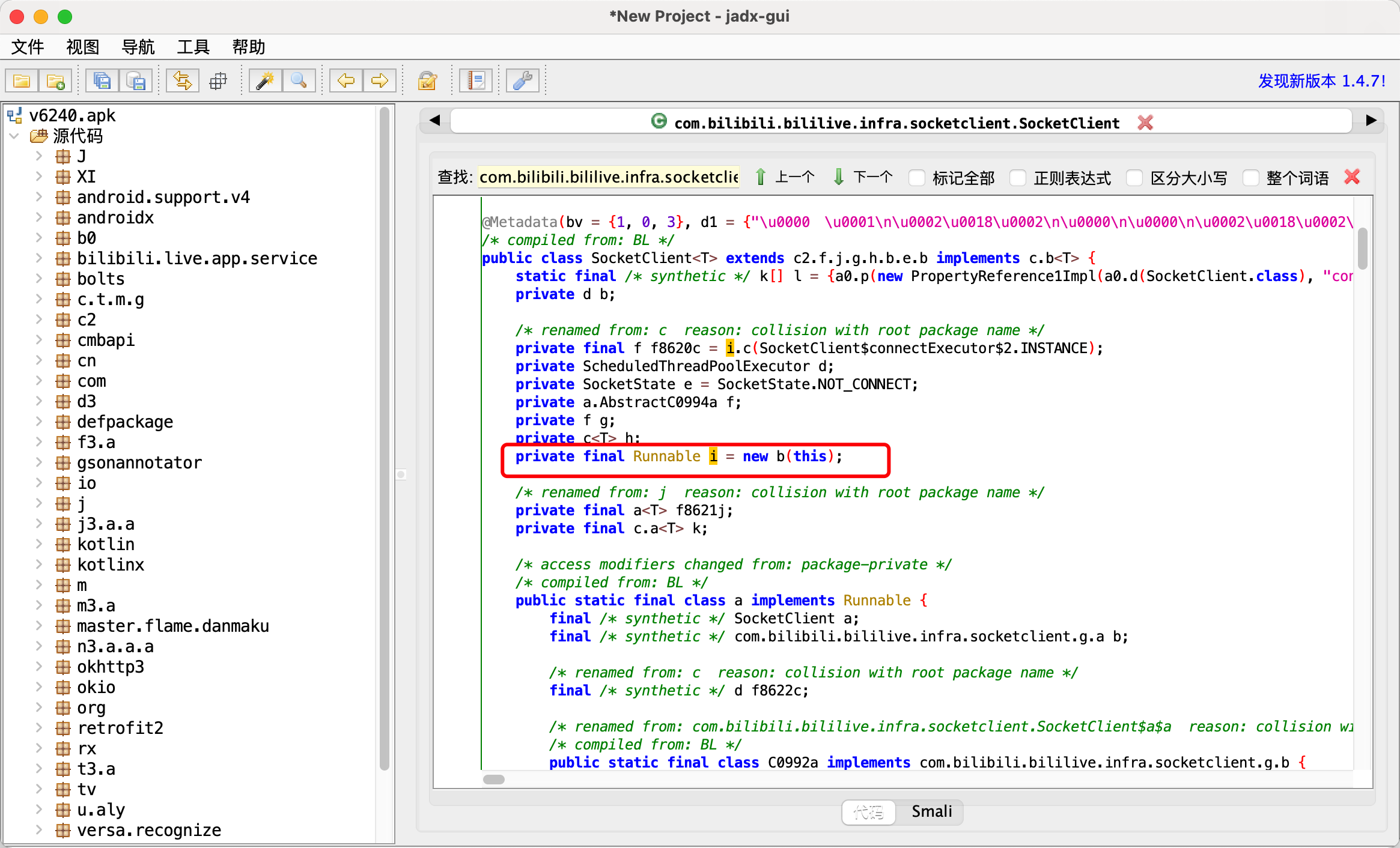

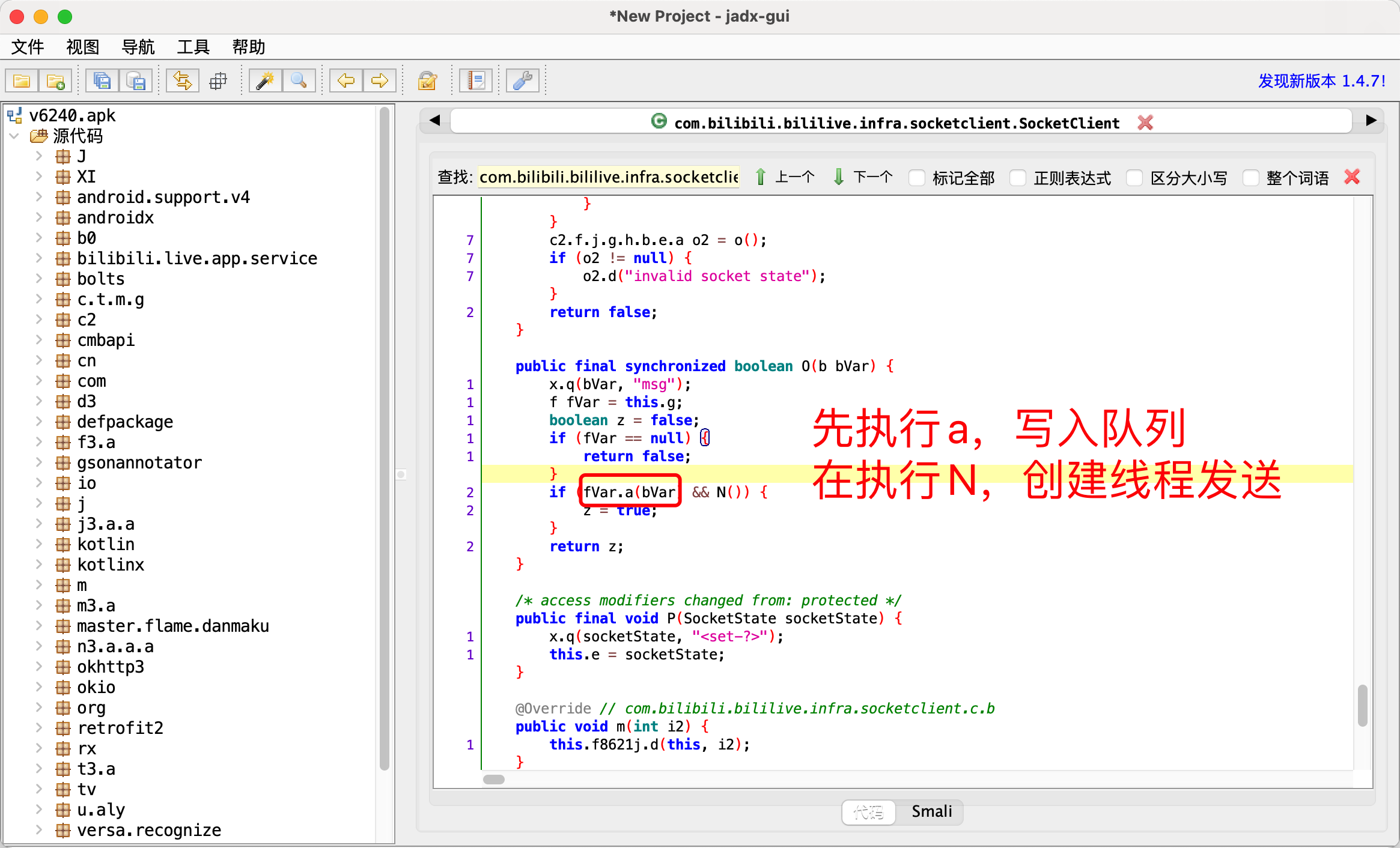

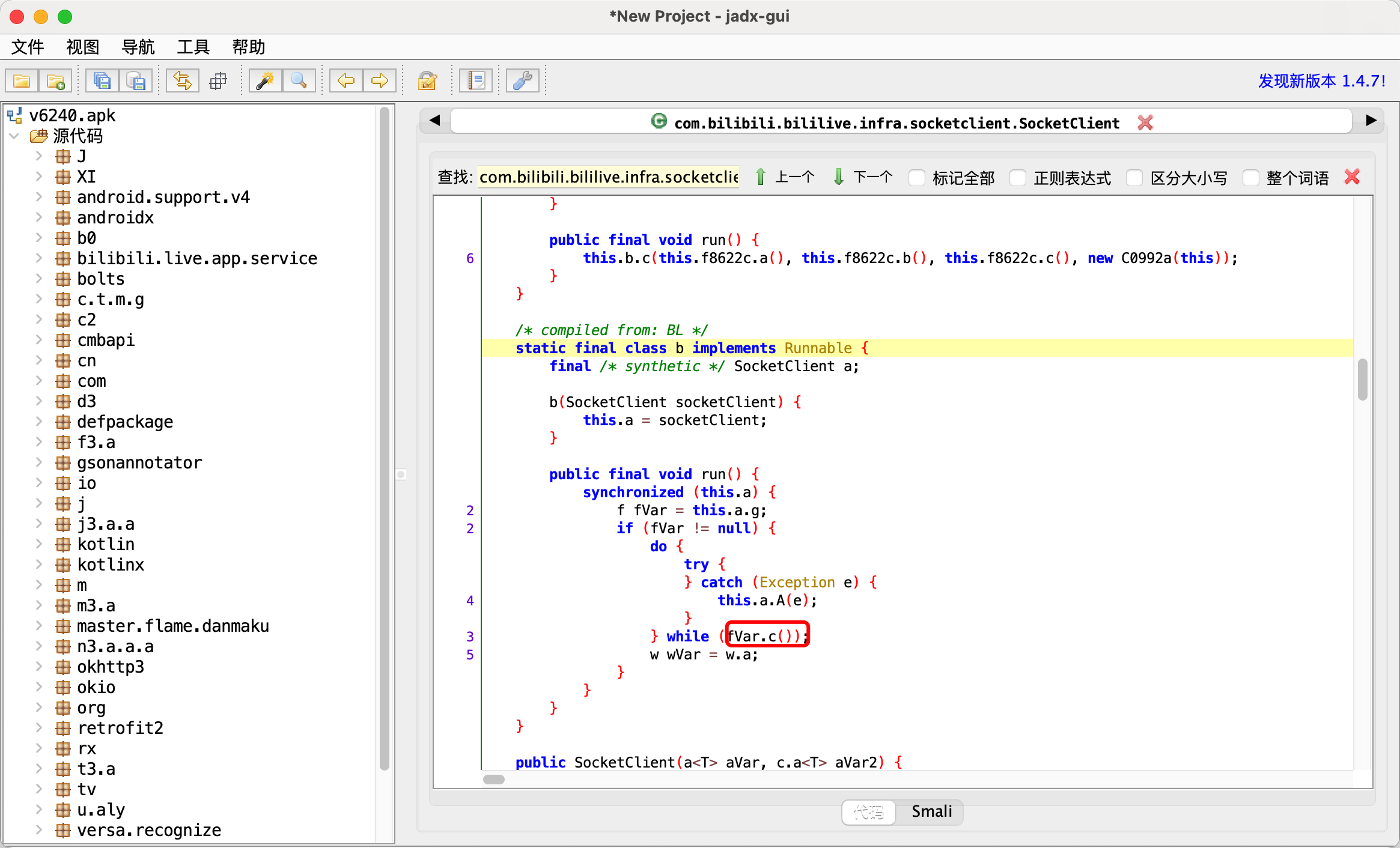

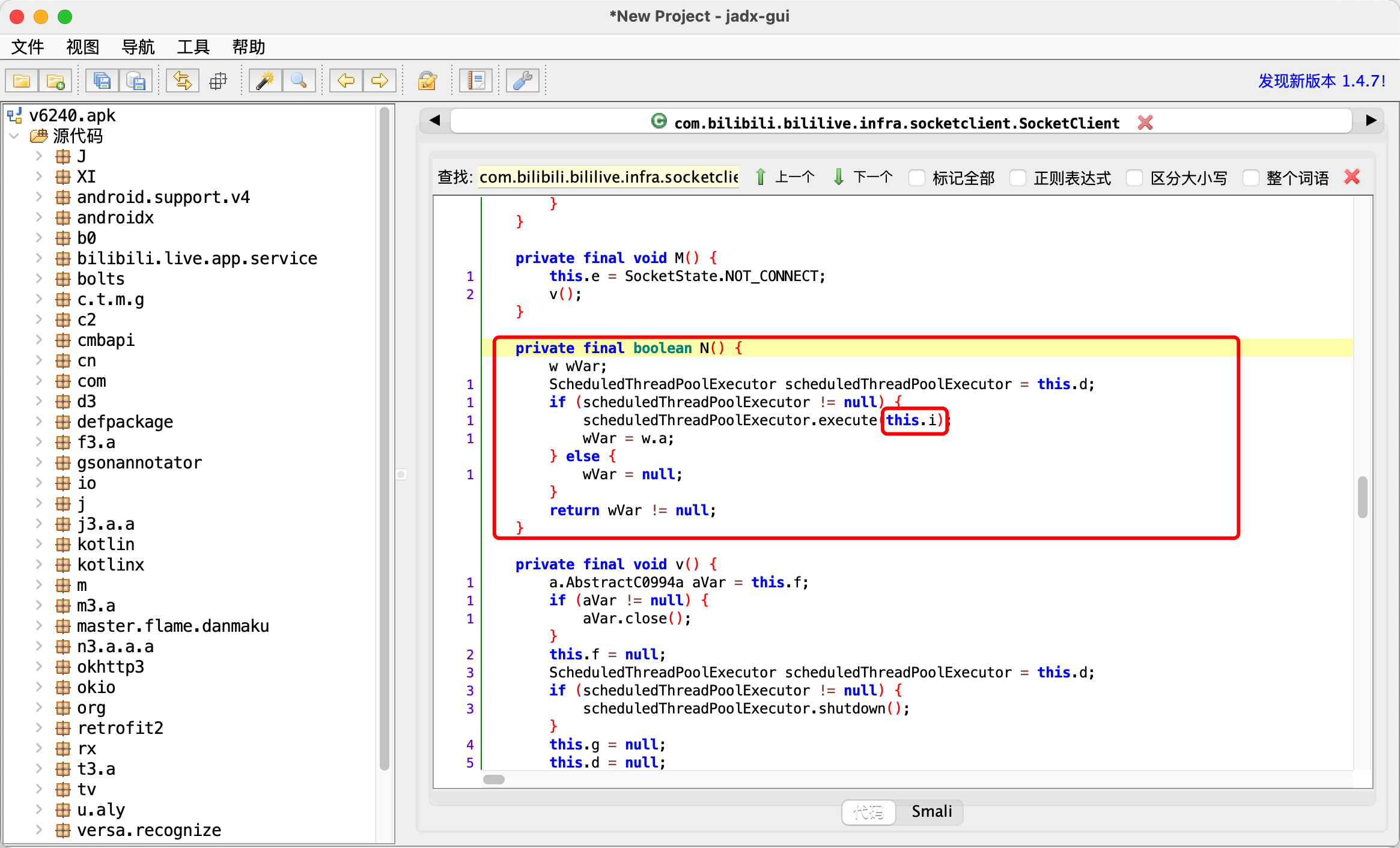

3.N相关

java.lang.Throwable
        at java.net.SocketOutputStream.write(Native Method)
        at okio.l$a.A3(BL:5)
        at okio.a$a.A3(BL:6)
        at okio.p.flush(BL:3)
        at com.bilibili.bililive.infra.socketclient.f.b(BL:2)
        at com.bilibili.bililive.infra.socketclient.f.c(BL:2) 【看这里】
        at com.bilibili.bililive.infra.socketclient.SocketClient$b.run(BL:3)
        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:462)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:301)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
        at java.lang.Thread.run(Thread.java:919)

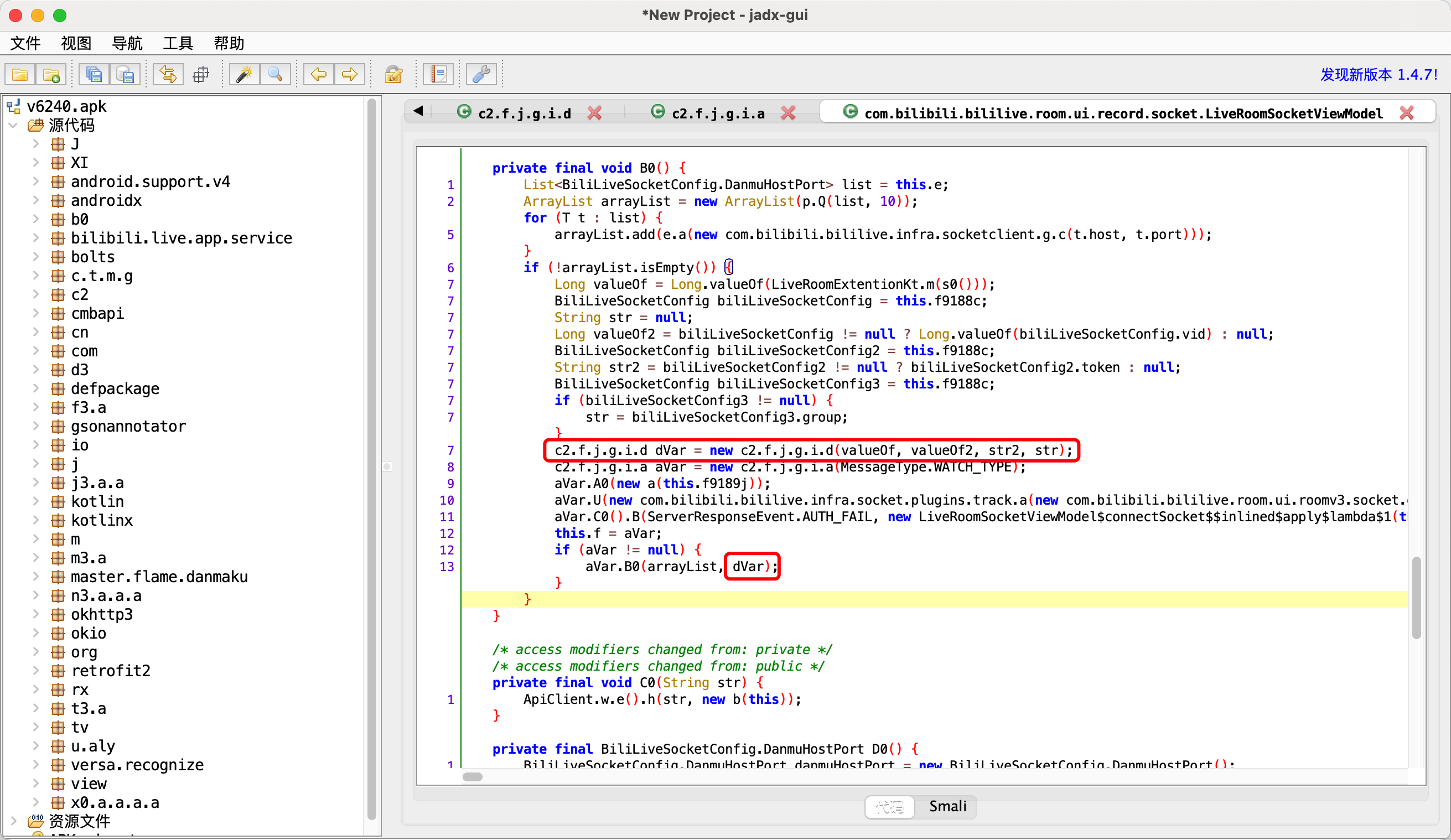

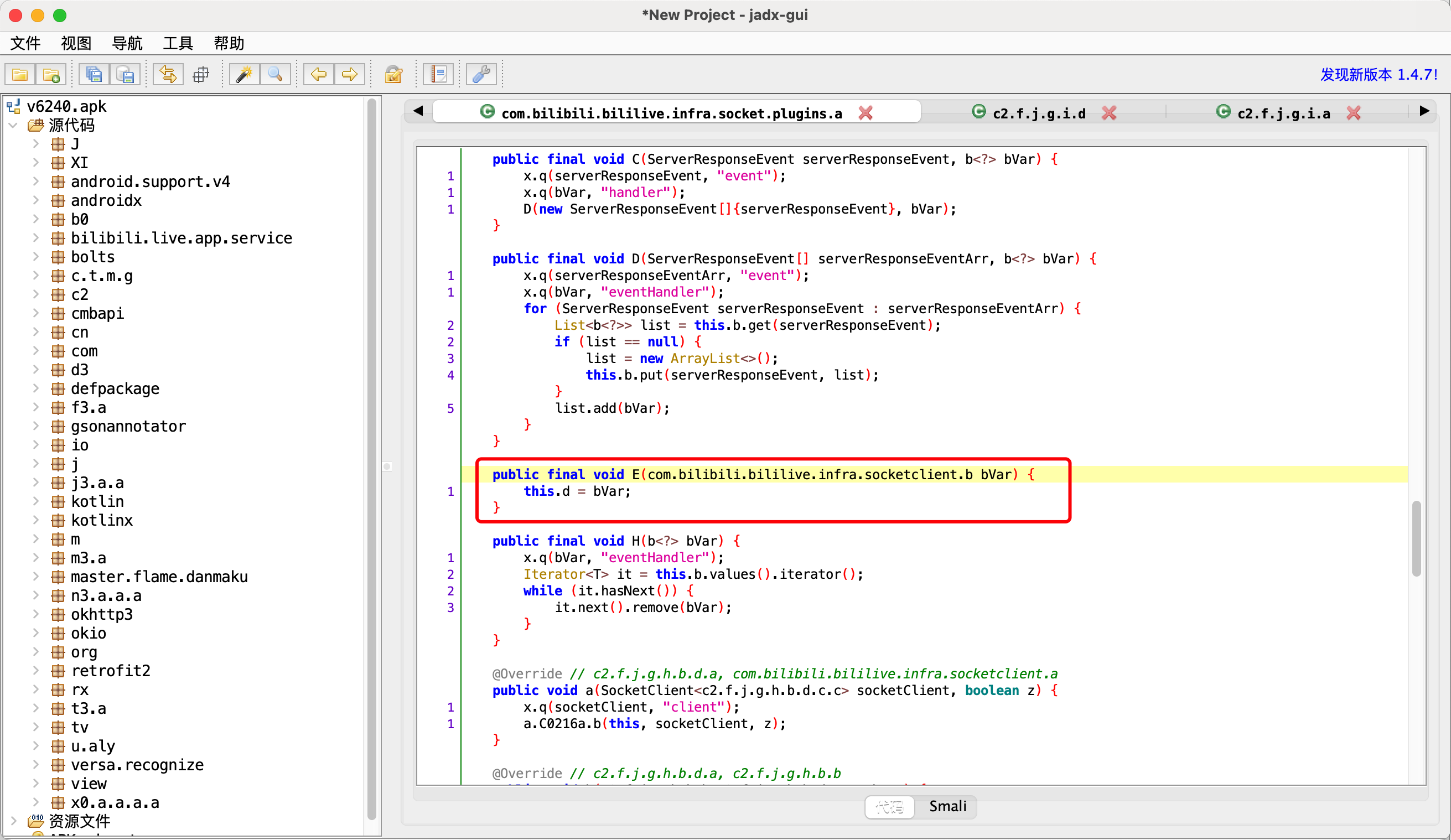

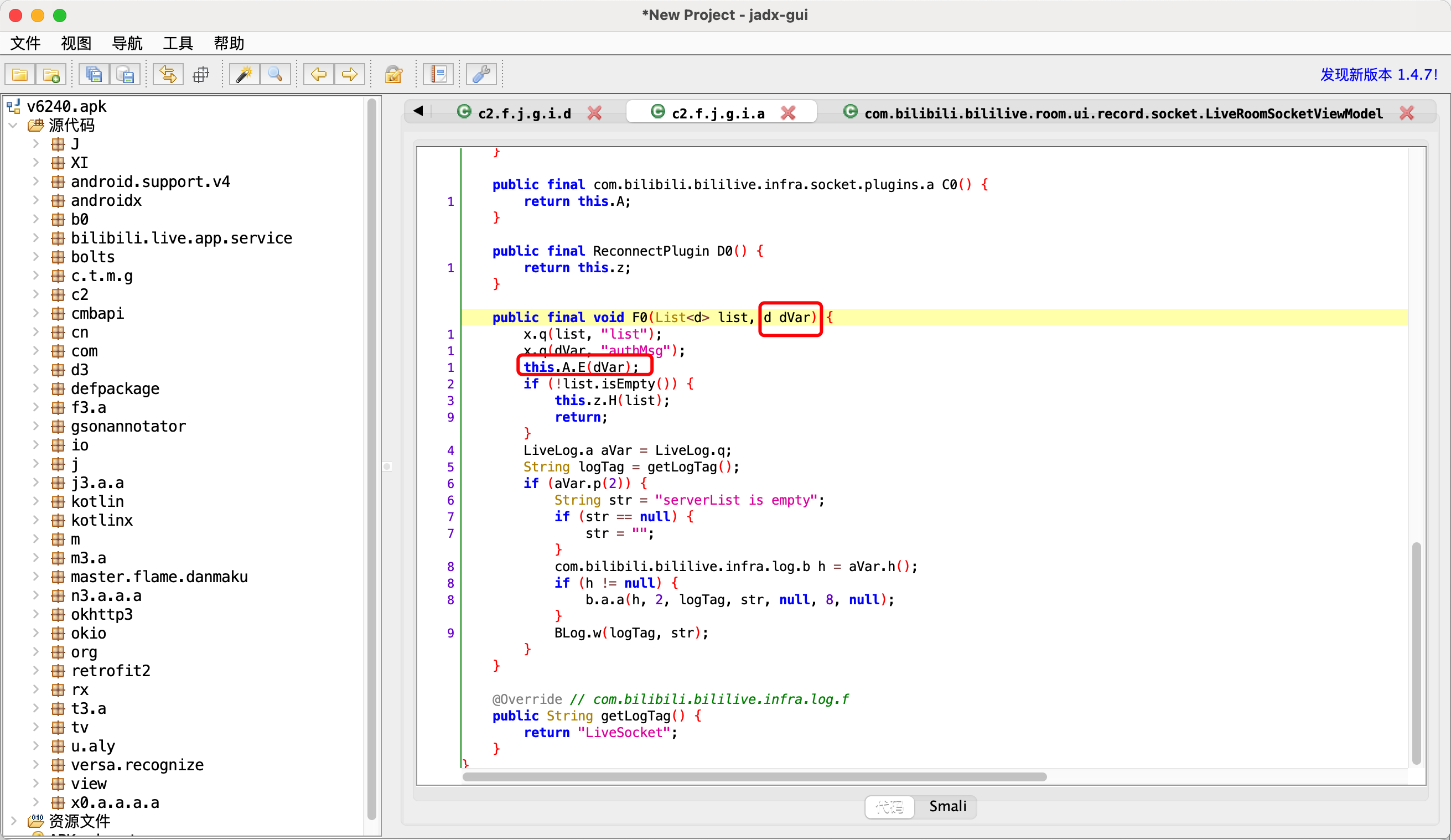

4.谁创建了bVar

5 笔记

抓包-底层通信相关

今日概要：
    - TCP协议，安卓开发
    - Http协议，安卓开发
    - Https协议，安卓开发
    - 案例：抽屉+B站

1.关于TCP和Http协议

2.TCP安卓开发：app和后端

    2.1 Python后端

    2.2 安卓客户端

    2.3 别人家的APP
        安卓手机   TCP            后端 基于Charlse无法抓包
        安卓手机   http/https     后端（charlse）

    2.4 如何抓包：基于Hook进行抓包

        发送消息：
            OutputStream outputStream = socket.getOutputStream();
            outputStream.write("hello".getBytes());

            - 你的Hook脚本：java.io.OutputStream.write方法【错误】
            - 真正Hook脚本：java.net.SocketOutputStream.write方法

        接受返回值：
            InputStream inputStream = socket.getInputStream();
            byte[] buffer = new byte[1024];
            int len = inputStream.read(buffer, 0, buffer.length);

            - 你的Hook脚本：java.io.InputStream.read方法【错误】
            - 真正Hook脚本：java.net.SocketInputStream.read方法

        问题：Hook是固定的吗？
        问题：获取IP和端口

    2.5 深入的Hook脚本（java层）
        - 真正Hook脚本：java.net.SocketOutputStream.write方法
            - socketWrite
            - socketWrite0
              private native void socketWrite0(FileDescriptor fd, byte[] b, int off,int len) throws IOException;
            - libopenjdk.so
                - SocketOutputStream_socketWrite0
                - NET_Send

        - 真正Hook脚本：java.net.SocketInputStream.read方法
            - socketRead
            - socketRead0
               private native int socketRead0(FileDescriptor fd,byte b[], int off, int len,int timeout)
           - libopenjdk.so
               - SocketInputStream_socketRead0
               - NET_Read

    2.6 深入的Hook脚本（so层）

        private native void socketWrite0(FileDescriptor fd, byte[] b, int off,int len) throws IOException;
        private native int socketRead0(FileDescriptor fd,byte b[], int off, int len,int timeout)

        1.在那个so文件中
            Java.perform(function () {
                const apiResolver = new ApiResolver('module');

                apiResolver.enumerateMatches('exports:*!*socket*0*').forEach(function (v) {
                    console.log(v.name)
                });
            });

            /apex/com.android.runtime/lib64/libopenjdk.so!SocketInputStream_socketRead0
            /apex/com.android.runtime/lib64/libopenjdk.so!SocketOutputStream_socketWrite0

        2.ida打开so

3.HTTP安卓开发：app和后端

    3.1 后端

    3.2 app端（okhttp3、底层）

    3.3 架设没有charlse等工具

4.HTTPS安卓开发：app + 后端路飞学城

    4.1 安卓端（HTTPS003）
        - 基于okhttp3发送https请求
        - 基于底层TCP协议，Socket是模块+SSL

    4.2 假如charlse不存在了，如何抓包？

    4.3 Hook抓包
        - 发送
            com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLOutputStream.write
            com.android.org.conscrypt.NativeCrypto.SSL_write 【native】

        - 获取
            com.android.org.conscrypt.ConscryptFileDescriptorSocket$SSLInputStream.read
            com.android.org.conscrypt.NativeCrypto.SSL_read 【 native】

    4.4 Hook抓包深入

小结：
    - TCP、Http、Https协议
    - TCP协议请求 -> 固定Hook脚本
    - Http和Https抓包
        - 基于工具
        - 基于源码和Hook【tcp=http固定】【https固定】

5.案例

    5.1 抽屉新热榜 v3.5.8
        - 登录页面
        - 手机代理 & charles抓包 -> 无法抓包

        解决方案：
            - NO_PROXY，可以抓包。【https】
            - 底层Hook抓包x

    5.3 B站APP v6.24.0
        - 手机代理 & charles抓包
            - 页面加载、登录
            - 直播页面

        - 猜想：实时显示
            - http或https，无状态短连接。
            - TCP协议，不断开连接实时展示。

        - 验证猜想：TCP请求（Hook脚本）

__END__

底层通信和其他

1.TCP请求

1.1 示例-服务端

1.2 示例-客户端

1.3 无法抓包

1.4 Hook抓包【java】

1.发送请求

2.获取响应

1.5 Hook抓包【so】

1.寻找so文件

2.请求和响应

2.Http请求

2.1 示例-服务端

2.2 示例-客户端

2.2 Hook抓包

1.java层

2.so层

3.Https请求

3.1 示例-客户端

3.2 Hook抓包【java】

1.发送请求

2.响应获取

3.3 Hook抓包【so】

1.寻找so文件

2.请求和响应

4 其他-案例

1.抽屉新热榜

1.无法抓包

2.NO_PROXY

3.底层抓包

2.B站

2.1 无法抓包

2.2 猜测，是否TCP？

2.3 猜测，socket连接

2.4 猜测，发送数据

1.bVar类型

2.fvar.a

3.N相关

4.谁创建了bVar

5 笔记
