今日内容

1 今日目标

1
2
3
4

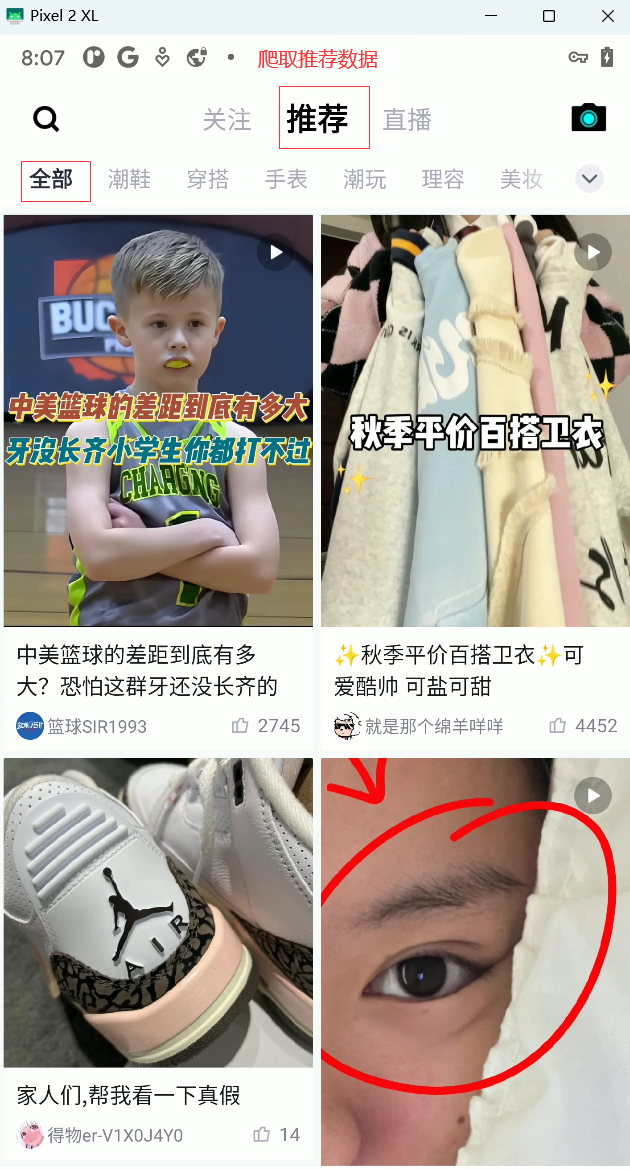

# 采集得物首页推荐信息
# 版本
	-4.74.5版本
    -在咱们软件中

image-20240517171722277

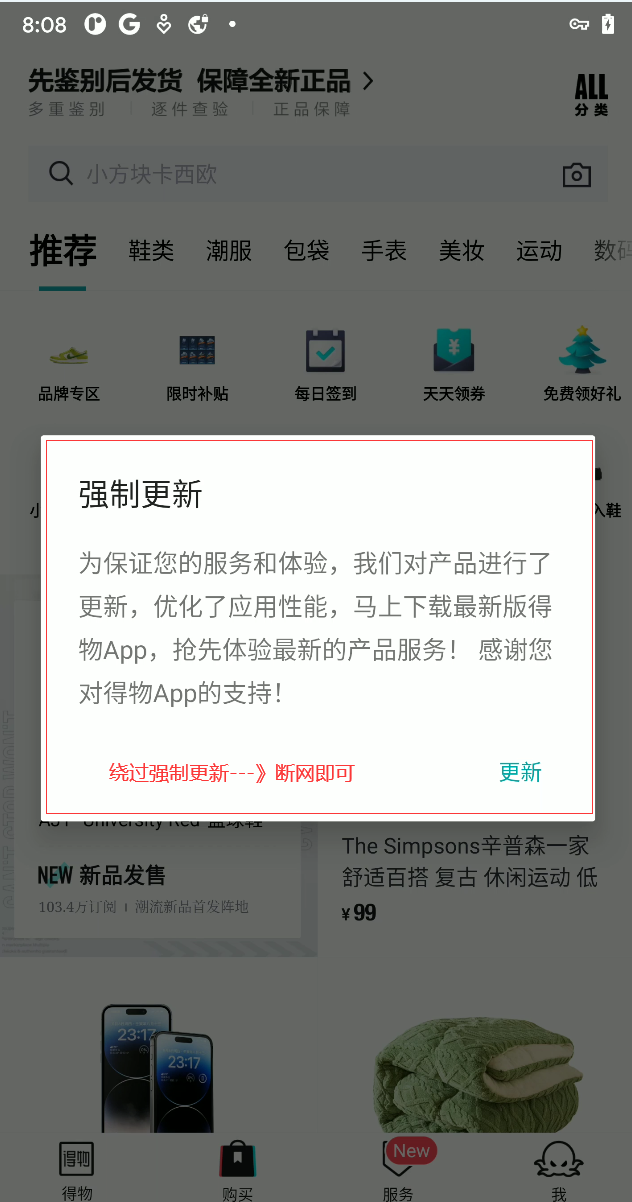

2 绕过强制更新

1
# 先断网----》打开app---》联网---》绕过了

image-20240517171735054

3 抓包分析

3.1 使用 SocksDroid抓包

1
2
3
4
5
6
7
8
9
10
11
12
13

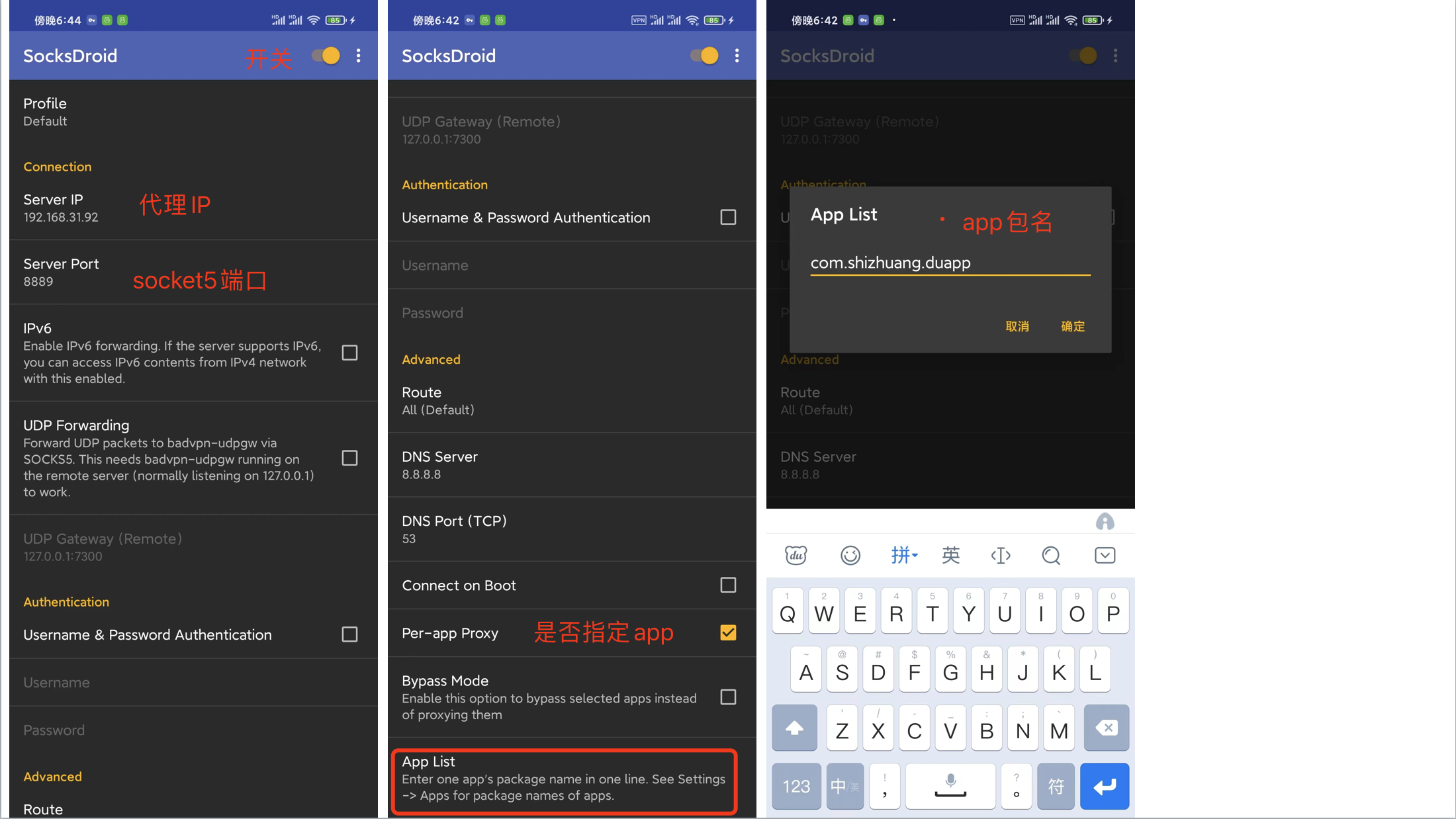

# 1 该app不允许使用代理，我们使用SocksDroid抓包
# 2 操作步骤：
	- 删除手机系统代理
    - 打开app，右上角滑块打开

# 3 地址如下：https://app.dewu.com/sns-rec/v1/recommend/all/feed
	-地址：https://app.dewu.com/sns-rec/v1/recommend/all/feed
    -请求方式：get
    -请求头：
    	-X-Auth-Token：必须带
    -请求参数：
    	-newSign：这个接口不需要带，学习破解它，后续别的接口需要带

image-20240517171750686

image-20240517171758364

4 反编译破解-newSign

4.1 反编译搜索newSign

1
2
3
4
5

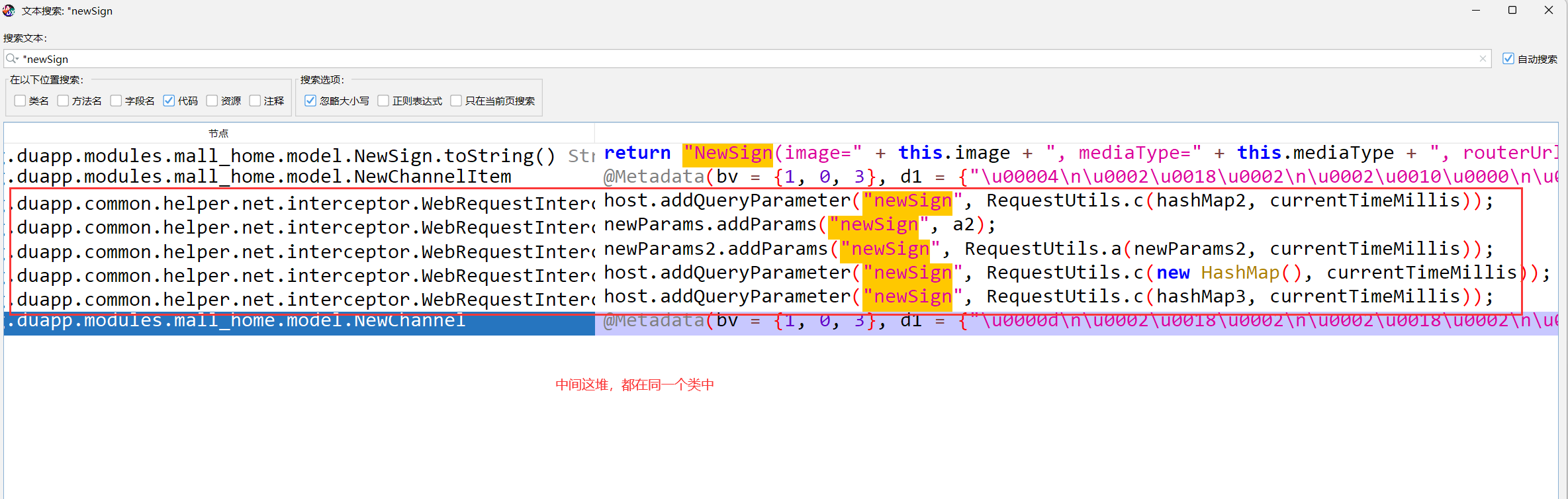

# 1 把app拖入 jadx中，反编译，搜索     "newSign
# 2 搜出8个，但实际上只有5个有效，5个都在同一个类中---》随便点一个进去看--》hook验证

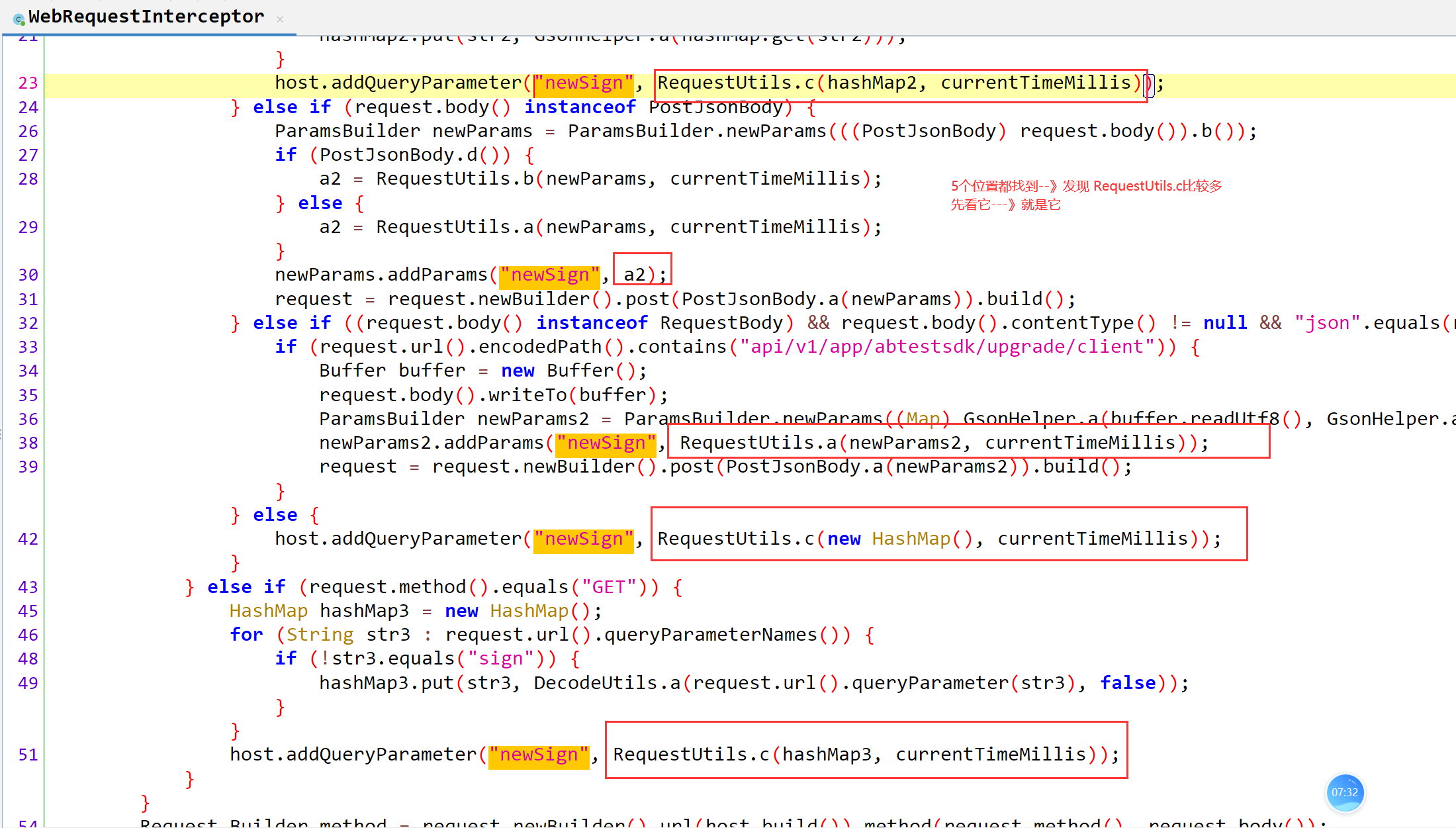

# 3 发现它是写在拦截器中---》所有请求，都会带这个newSign
# 4 最终调用了RequestUtils.c
# 5 hook一下 RequestUtils.c， 确认有没有走

image-20240517171807865

image-20240517171819303

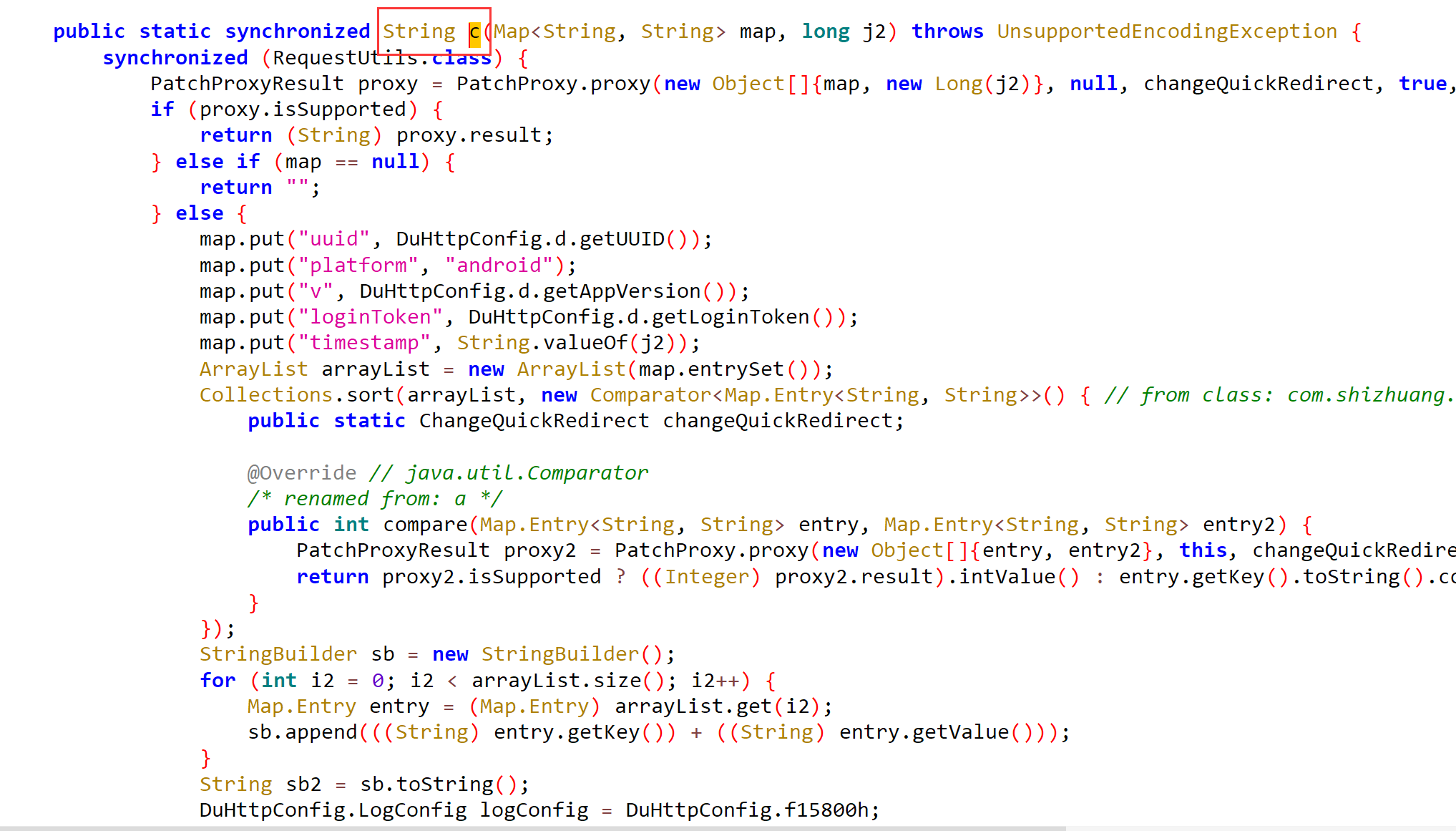

4.2 Hook确认位置->RequestUtils.c

image-20240517171827345

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
import frida
import sys

rdev = frida.get_remote_device()
session = rdev.attach("得物(毒)")

scr = """
Java.perform(function () {
    var RequestUtils = Java.use("com.shizhuang.duapp.common.utils.RequestUtils");
    RequestUtils.c.implementation = function(map,j){
        console.log("----------------------------------------");
        console.log('1.参数字典为：',map); // 此处直接打印map，发现打印的是对象，我们需要转换一下
        console.log('1.参数字典为：',JSON.stringify(map));  // 查看一下类型 ：<instance: java.util.Map, $className: java.util.HashMap>，把HashMap值取出来，做个转换，如下
        var Map = Java.use('java.util.HashMap');
        var obj = Java.cast(map, Map);
        console.log('1.参数字典为：',obj.toString());
        var res = this.c(map,j);
        console.log("4.newSign结果：", res);
        return res;
    }
});
"""
script = session.create_script(scr)


def on_message(message, data):
    print(message, data)


script.on("message", on_message)

script.load()
sys.stdin.read()


'''
1.参数字典为： [object Object]
2.参数字典为,查看类型： "<instance: java.util.Map, $className: java.util.HashMap>"
3.参数字典为，字符串：
{abValue=1, deliveryProjectId=0, abRectagFengge=0, abType=social_brand_strategy_v454, limit=20, lastId=, abRecReason=0, abVideoCover=2}
4.newSign结果： 63954a47f978df83dc52b8c66e7c2f19

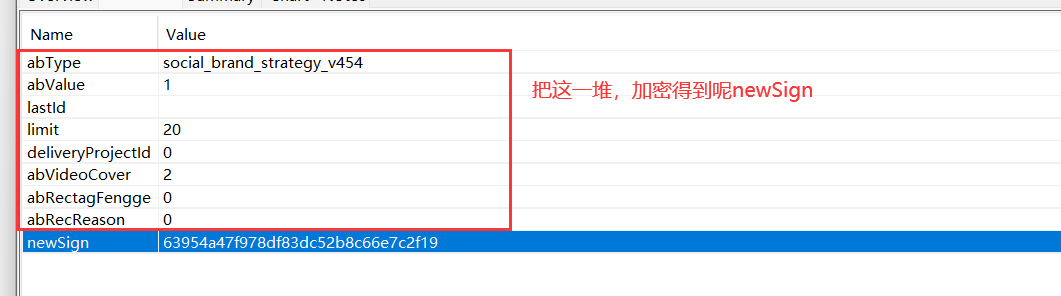

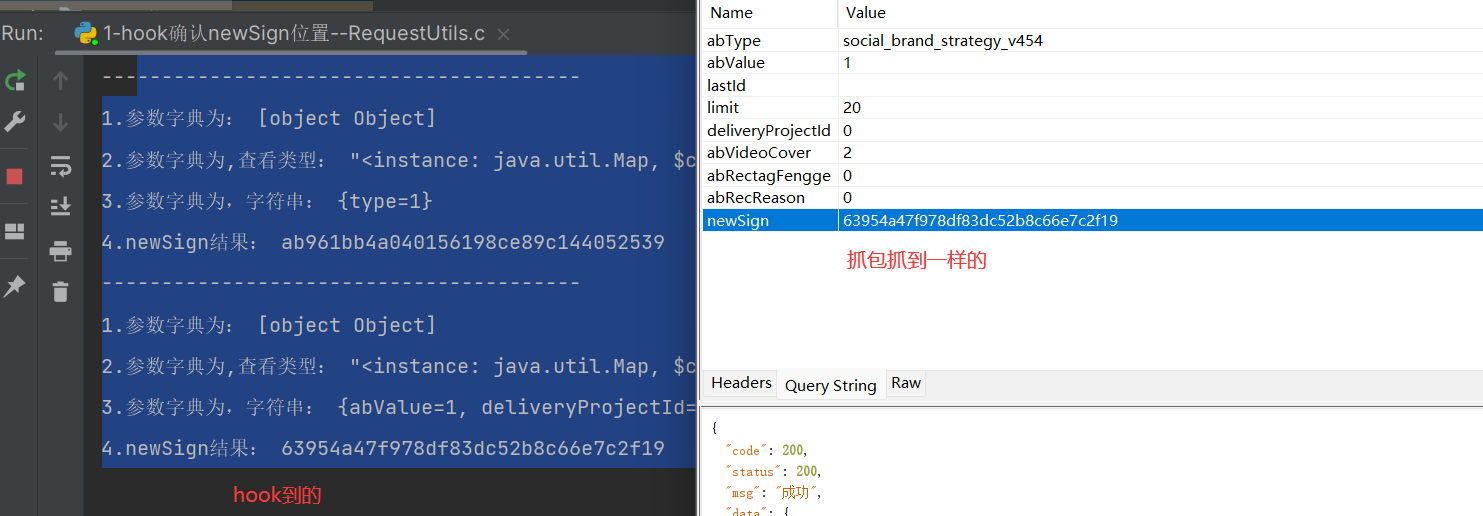

### 拿到newSign和 抓包抓包的newSign比较发现是一样的，确定位置
'''

# 把请求参数---》使用某种加密方式，做了加密

image-20240517171837376

image-20240517171844783

4.3 分析RequestUtils.c代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

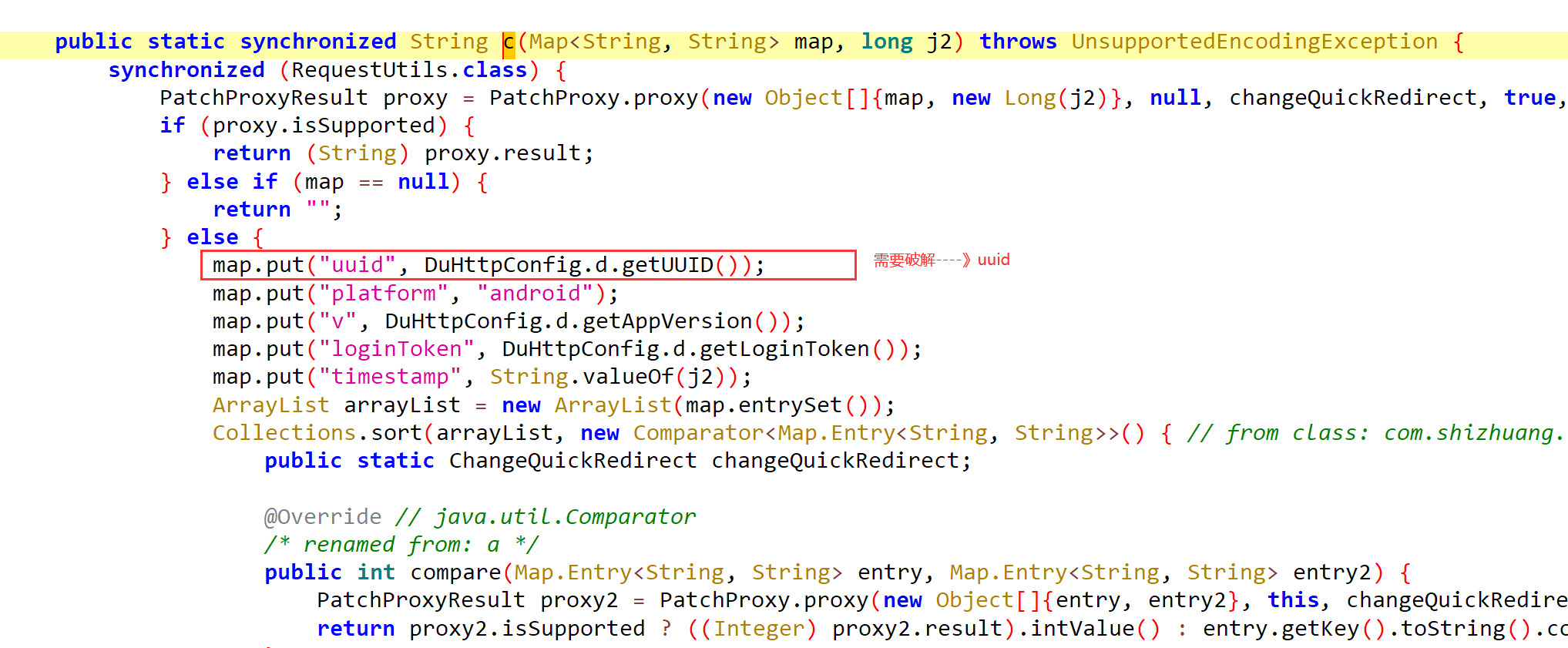

    public static synchronized String c(Map<String, String> map, long j2) throws UnsupportedEncodingException {
        synchronized (RequestUtils.class) {
            PatchProxyResult proxy = PatchProxy.proxy(new Object[]{map, new Long(j2)}, null, changeQuickRedirect, true, 6612, new Class[]{Map.class, Long.TYPE}, String.class);
            if (proxy.isSupported) {
                return (String) proxy.result;
            } else if (map == null) {
                return "";
            } else {
                //1 刚刚hook，map不是null的，是有值的
                // {abValue=1, deliveryProjectId=0, abRectagFengge=0, abType=social_brand_strategy_v454, limit=20, lastId=, abRecReason=0, abVideoCover=2}
                // uuid,platform,v,loginToken,timestamp
                map.put("uuid", DuHttpConfig.d.getUUID());
                map.put("platform", "android");
                map.put("v", DuHttpConfig.d.getAppVersion());
                map.put("loginToken", DuHttpConfig.d.getLoginToken());
                map.put("timestamp", String.valueOf(j2));
                //2 把map转成ArrayList，做了排序 [key=value,key2=value2]
                ArrayList arrayList = new ArrayList(map.entrySet());
                // 排序
                Collections.sort(arrayList, new Comparator<Map.Entry<String, String>>() {
                    public static ChangeQuickRedirect changeQuickRedirect;

                    @Override
                    public int compare(Map.Entry<String, String> entry, Map.Entry<String, String> entry2) {
                        PatchProxyResult proxy2 = PatchProxy.proxy(new Object[]{entry, entry2}, this, changeQuickRedirect, false, 6618, new Class[]{Map.Entry.class, Map.Entry.class}, Integer.TYPE);
                        return proxy2.isSupported ? ((Integer) proxy2.result).intValue() : entry.getKey().toString().compareTo(entry2.getKey());
                    }
                });
                // 3 拼接字符串---》循环arrayList--》拼接到字符串中
                StringBuilder sb = new StringBuilder();
                for (int i2 = 0; i2 < arrayList.size(); i2++) {
                    Map.Entry entry = (Map.Entry) arrayList.get(i2);
                    // 把key和value拼到字符串中了
                    // abValue1deliveryProjectId0...
                    sb.append(((String) entry.getKey()) + ((String) entry.getValue()));
                }
                // 转成字符串
                String sb2 = sb.toString();
                DuHttpConfig.LogConfig logConfig = DuHttpConfig.f15800h;
                String str = f16243a;
                logConfig.d(str, "StringToSign " + sb2);
                // 4 执行了AESEncrypt.encode 把sb2，拼接后的字符串做了加密
                // 5 执行了a做了加密--》md5
                return a(AESEncrypt.encode(DuHttpConfig.f15796c, sb2));
            }
        }
    }



/* 总结：
1 参数拼接
// 把uuid，platform，v，loginToken，timestamp放入map中
map.put("uuid", DuHttpConfig.d.getUUID());
map.put("platform", "android");
map.put("v", DuHttpConfig.d.getAppVersion());
map.put("loginToken", DuHttpConfig.d.getLoginToken());
map.put("timestamp", String.valueOf(j2));
2 把map转成 ArrayList并进行排序
ArrayList arrayList = new ArrayList(map.entrySet());
Collections.sort(arrayList, new Comparator<Map.Entry<String, String>>()

3 构建字符串
StringBuilder sb = new StringBuilder();
for (int i2 = 0; i2 < arrayList.size(); i2++) {
	sb.append(((String) entry.getKey()) + ((String) entry.getValue()));
}

4 执行 AESEncrypt.encode 加密
AESEncrypt.encode(DuHttpConfig.f15796c, sb2)

5 把加密后的结果使用a，做运算，a是md5
a(AESEncrypt.encode(DuHttpConfig.f15796c, sb2));
*/

4.3.1 a方法就是md5

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
// md5 正常就是直接加密，麻烦一点的就是 加点盐，如果没有update别的就没有加盐
// 如果不放心，hook a，拿到参数，和返回，自己使用python来验证即可
public static String a(String str) {
        PatchProxyResult proxy = PatchProxy.proxy(new Object[]{str}, null, changeQuickRedirect, true, 6616, new Class[]{String.class}, String.class);
        if (proxy.isSupported) {
            return (String) proxy.result;
        }
        try {
            MessageDigest messageDigest = MessageDigest.getInstance("MD5");
            messageDigest.update(str.getBytes());
            byte[] digest = messageDigest.digest();
            StringBuilder sb = new StringBuilder();
            for (byte b2 : digest) {
                String hexString = Integer.toHexString(b2 & 255);
                while (hexString.length() < 2) {
                    hexString = "0" + hexString;
                }
                sb.append(hexString);
            }
            return sb.toString();
        } catch (NoSuchAlgorithmException e2) {
            e2.printStackTrace();
            return "";
        }
    }

4.3.2 分析AESEncrypt.encode

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# 1 AESEncrypt.encode(DuHttpConfig.f15796c, sb2)
# 2 双击点进去
	public class AESEncrypt {
        static {
           System.loadLibrary("JNIEncrypt"); # libJNIEncrypt.so
        }
     public static String encode(Object obj, String str) {
        # 调用getByteValues 获得字符串
        # byteValues=011001
        String byteValues = getByteValues();
        StringBuilder sb = new StringBuilder(byteValues.length());
        # 定义了一个字符串，根据byteValues的值，拼接字符串，相对于对字符串取反
        for (int i2 = 0; i2 < byteValues.length(); i2++) {
            if (byteValues.charAt(i2) == '0') {
                sb.append('1');
            } else {
                sb.append('0');
            }
        }
        # sb.toString=100110
        # str.getBytes() 待加密的字符串
        return encodeByte(str.getBytes(), sb.toString());
    }
    public static native String getByteValues(); # Native方法--》c实现的--》目前不知道
    # 传入了 待加密的字符串转成byte数组，和 01010101字符串
    # 用c写的
	public static native String encodeByte(byte[] bArr, String str);# Native方法--》c实现的

    }

4.3.3 hook–>encode确认位置是否正确

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
import frida
import sys

rdev = frida.get_remote_device()
session = rdev.attach("得物(毒)")


# AESEncrypt 类下有俩 encode方法，重载的方法---》参数不同---》咱们要hook的是两个参数的---》还有个一个参数的
# hook脚本，需要额外处理
# 需要写 overload(参数签名)---》记住了，以后hook重载方法，都这么多写一个 overload

scr = """
Java.perform(function () {
    var AESEncrypt = Java.use("com.duapp.aesjni.AESEncrypt");
    AESEncrypt.encode.overload('java.lang.Object', 'java.lang.String').implementation = function(obj,str){
        console.log('传入参数：',str);
        var res = this.encode(obj,str);
        console.log('返回值是：',res);
        return res;
    }
});
"""



script = session.create_script(scr)
def on_message(message, data):
    print(message, data)
script.on("message", on_message)
script.load()
sys.stdin.read()


'''

传入参数：
{abValue=1, deliveryProjectId=0, abRectagFengge=0, abType=social_brand_strategy_v454, limit=20, lastId=, abRecReason=0, abVideoCover=2}+uuid+logintype+timestamp

abRecReason0abRectagFengge0abTypesocial_brand_strategy_v454abValue1abVideoCover2deliveryProjectId0lastIdlimit20loginTokenplatformandroidtimestamp1704201024023uuidee13885e68d76ed4v4.74.5

abRecReason 0
abRectagFengge 0
abTypesocial_brand_strategy_v454abValue1abVideoCover2deliveryProjectId0
lastId
limit 20
loginToken
platform android
timestamp 1704201024023
uuid ee13885e68d76ed4
v 4.74.5

返回值是： VwGEkNCFuNTmwD6w19ogqRI5VLum7q2QP6Z4TaJLKn3cvS7y81d64hsABQvdu03vdj76OpM/O2awG8h9UpcJb7mTLuTReeaHVgQgd6kvRikIdeR4xJw0+TRbBSp2lMcQMGn2O4/9BKR+RkYgwOUZd4MFCaYlia6t5gNc3rbNTJjA6aJyja63+nAcybbrLaS0yLy0ESLQSJ5zJcVwQ/vpxoOdr2wdQssTtUlmTMEAneS62ogrdRykXvjd49za9AEW

'''

4.3.4 继续分析AESEncrypt.encode

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class AESEncrypt {
    static {
        System.loadLibrary("JNIEncrypt"); # libJNIEncrypt.so
    }
    public static String encode(Object obj, String str) {
        // 1 调用getByteValues 获得字符串
        // 假设是 byteValues=011001
        String byteValues = getByteValues();
        StringBuilder sb = new StringBuilder(byteValues.length());
       // 2 定义了一个字符串，根据byteValues的值，拼接字符串，相对于对字符串取反
            for (int i2 = 0; i2 < byteValues.length(); i2++) {
                if (byteValues.charAt(i2) == '0') {
                    sb.append('1');
                } else {
                    sb.append('0');
                }
            }
           // 3 sb.toString=100110
           // 4 str.getBytes() 待加密的字符串
            return encodeByte(str.getBytes(), sb.toString());
    }
    //Native方法--》c实现的--》目前不知道
    public static native String getByteValues();
    //传入了 待加密的字符串转成byte数组，和 01010101字符串
    //用c写的
    //Native方法--》c实现的
    public static native String encodeByte(byte[] bArr, String str);#
}

// 去 libJNIEncrypt.so 中读两个位置
	-getByteValues：// 没有参数，直接返回了字符串,这种情况下，大规律字符串是固定的，通过hook确认值是否是固定，如果是固定，不用读了，直接用即可，如果不固定，需要去读
    -encodeByte

4.3.5 hook-getByteValues查看返回值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
import frida
import sys

rdev = frida.get_remote_device()
session = rdev.attach("得物(毒)")

scr = """
Java.perform(function () {
    var AESEncrypt = Java.use("com.duapp.aesjni.AESEncrypt");
    AESEncrypt.getByteValues.implementation = function(){
        var res = this.getByteValues();
        console.log('getByteValues返回值是：',res);
        return res;
    }
});
"""
script = session.create_script(scr)


def on_message(message, data):
    print(message, data)


script.on("message", on_message)

script.load()
sys.stdin.read()

'''
getByteValues返回值是固定的：
101001011101110101101101111100111000110100010101010111010001000101100101010010010101110111010011101001011101110101100101001100110000110100011101010111011011001101001101011101010100001101000011
'''

4.3.6 读encodeByte–Native方法–so

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

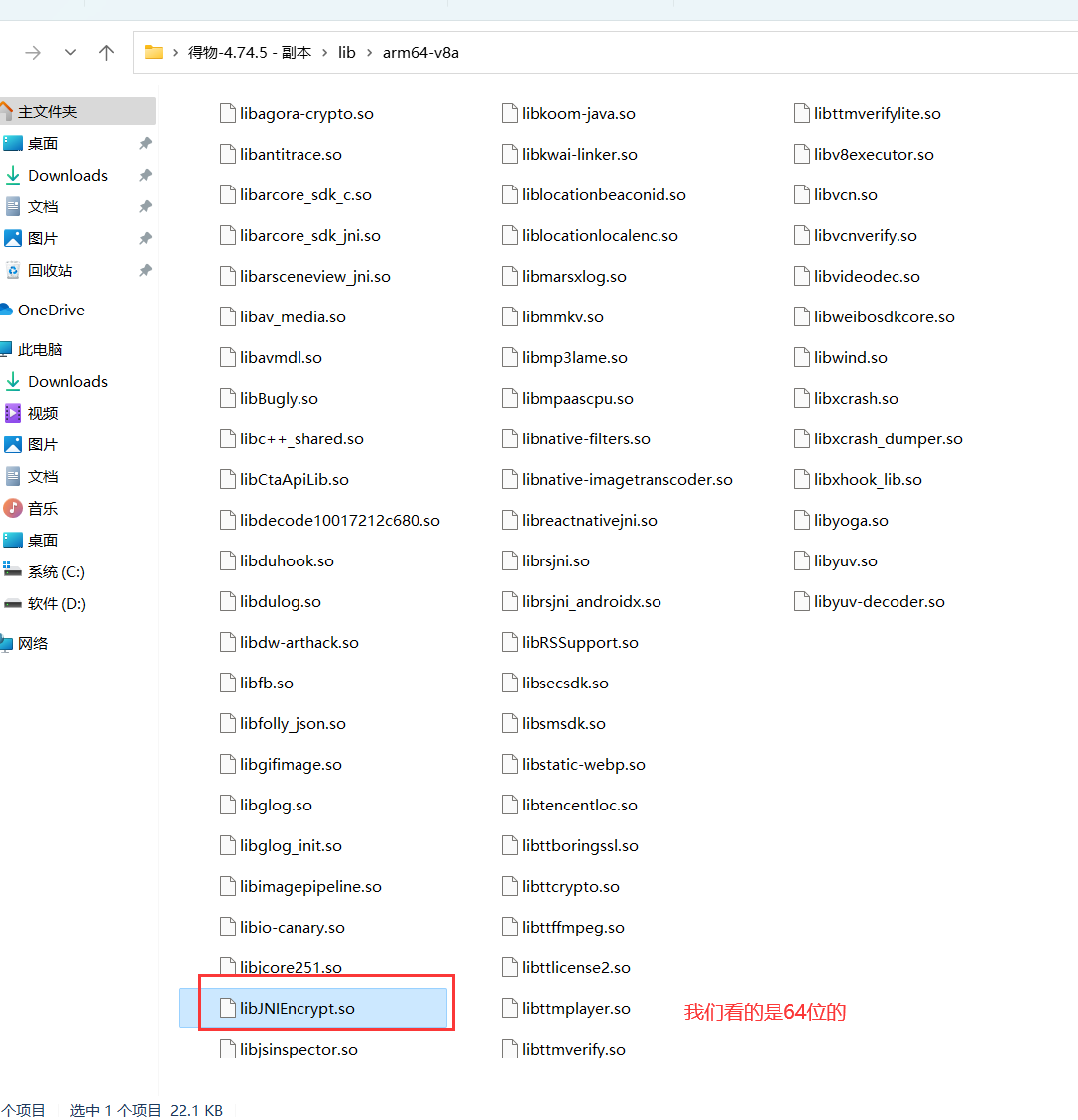

# 1 libJNIEncrypt.so 解压缩apk---libs中找出---》看是静态还是动态注册
	-静态注册：java_包名_类名_方法名
    -动态注册：JNI_OnLoad中找对应关系

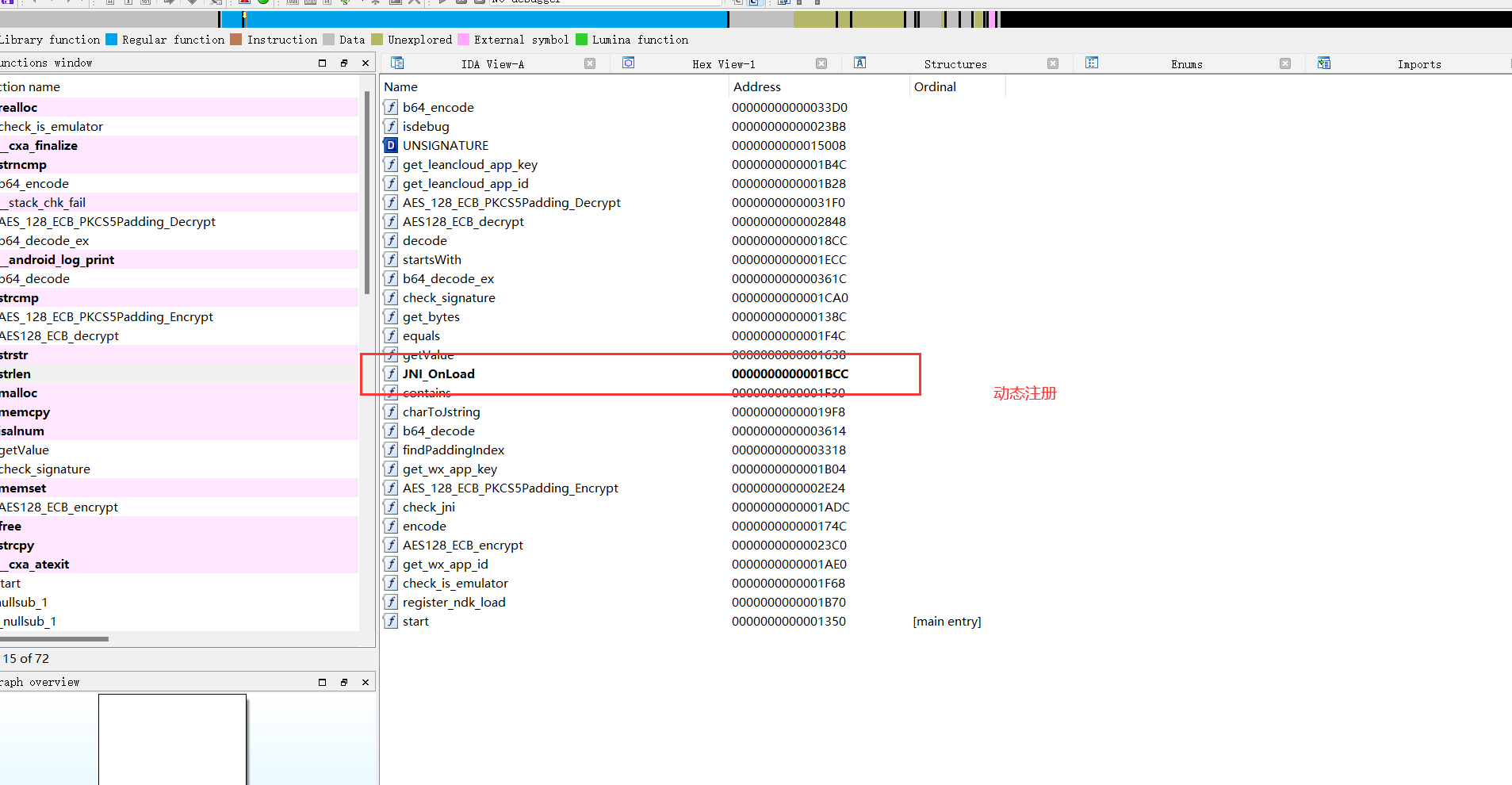

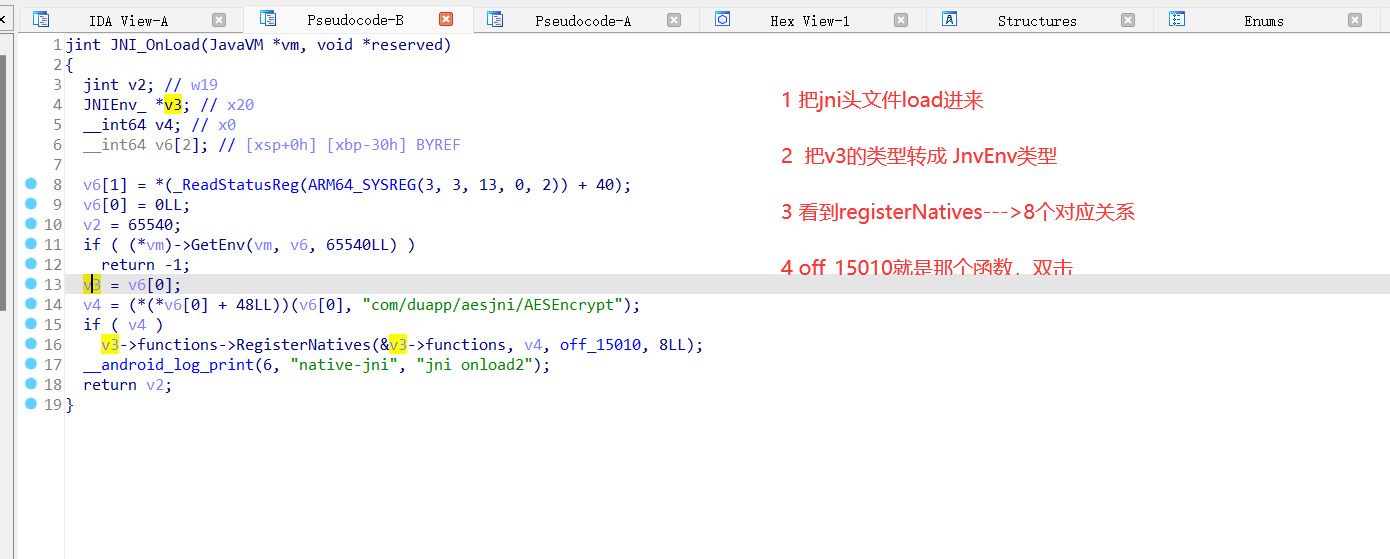

# 2 找到64位的so文件，使用ida打开，发现是动态注册

# 3 如果是动态注册---》JNI_OnLoad---》找对应关系

# 4 之前咱们写的JNI_OnLoad
JNIEXPORT jint
JNICALL JNI_OnLoad(JavaVM *vm, void *reserved) {
    # 找到Java中的类
    jclass clazz = (*env)->FindClass(env, "com/justin/s10demo03/Dynamic");
    # 将类中的方法注册到JNI中 (RegisterNatives),通过它完成动态注册
    # gMethods 是c语言方法---》 2 表示有两个方法要对应
    int res = (*env)->RegisterNatives(env, clazz, gMethodsgMethods对应关系, 2);
}

# 5 咱们反编译出来的
jint JNI_OnLoad(JavaVM *vm, void *reserved)
{

  v4 = (*(*v6[0] + 48LL))(v6[0], "com/duapp/aesjni/AESEncrypt");
  if ( v4 )
    # off_15010 就是咱们写的gMethodsgMethods对应关系
    (*(*v3 + 1720LL))(v3, v4, off_15010, 8LL);

  return v2;
}

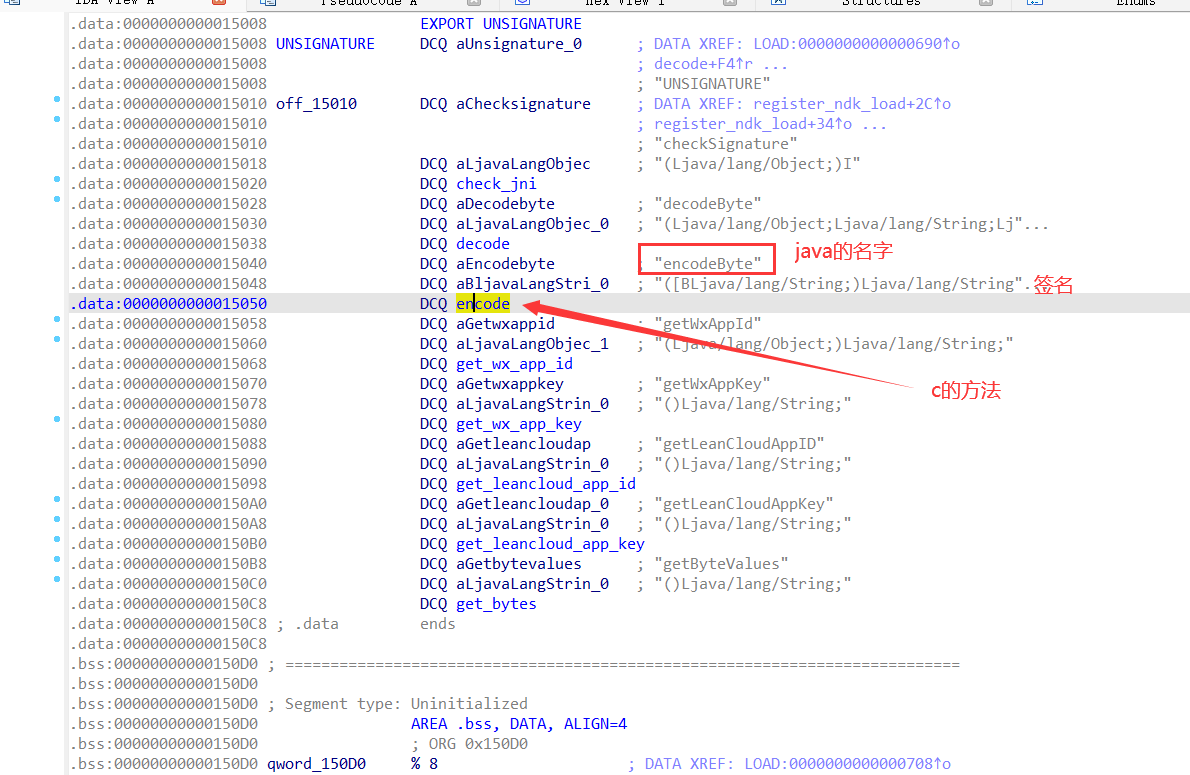

# 6 双击off_15010 --》找到对应关系--》encode--》双击--》按F5反编译
jstring __fastcall encode(JNIEnv_ *a1, __int64 a2, __int64 a3, __int64 a4)
{
LABEL_8:
  v11[v9] = 0;
  # v18是在这处理的
  v18 = AES_128_ECB_PKCS5Padding_Encrypt(v11, v8);
  free(v12);
  a1->functions->ReleaseStringUTFChars(a1, a4, v7);
  a1->functions->ReleaseByteArrayElements(a1, a3, v10, 0LL);
  return a1->functions->NewStringUTF(a1, v18); # 返回字符串类型，加密后的字符串，v18才是真正字符串
}

# 7 AES_128_ECB_PKCS5Padding_Encrypt(v11, v8)

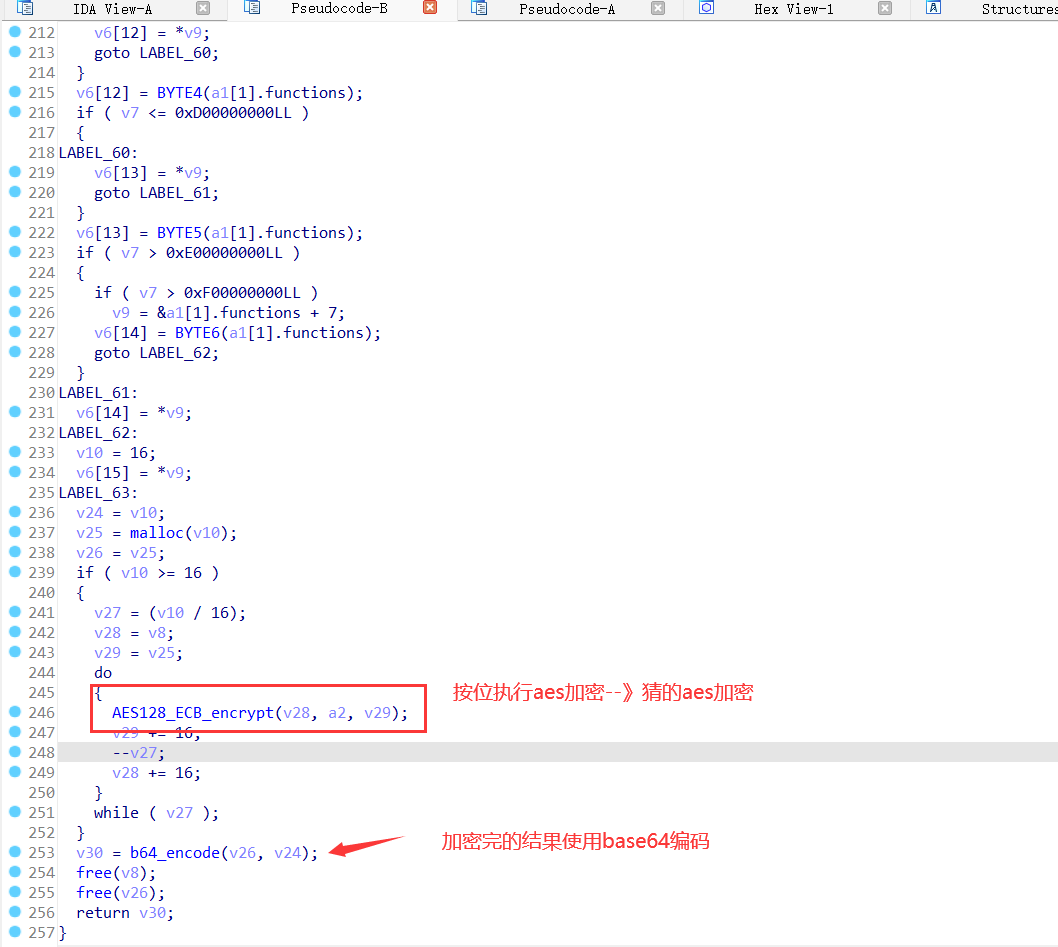

	一路点进去看，看到aes字样和base64字样---》猜测使用aes加密，使用base64编码


# 8 hook--》AES_128_ECB_PKCS5Padding_Encrypt(v11, v8)--》查看参数
	-之前没有学过hook-c的函数

# 9 总结：encodeByte so的代码核心逻辑是
	-明文字符串传入，使用key，进行aes加密--》加密后使用base64编码后返回

image-20240517171904436

image-20240517171912306

image-20240517171919493

image-20240517171927761

image-20240517171937736

4.3.7 hook–AES_128_ECB_PKCS5Padding_Encrypt

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

import frida
import sys
rdev = frida.get_remote_device()
session = rdev.attach("得物(毒)")

scr = """
Java.perform(function () {
    // 返回libJNIEncrypt.so中的AES_128_ECB_PKCS5Padding_Encrypt的内存地址
    var addr_func = Module.findExportByName("libJNIEncrypt.so", "AES_128_ECB_PKCS5Padding_Encrypt");
    // 使用Interceptor.attach 调用，第一个参数传入内存地址，第二个参数是一个对象：onEnter 和 onLeave
    Interceptor.attach(addr_func, {
        onEnter: function(args){
            // 所有参数都在args中，根据下标取值
            console.log("--------------------------执行函数--------------------------");
            console.log("参数1：", args[0].readUtf8String());
            console.log("参数2：", args[1].readUtf8String());
        },
        onLeave: function(retValue){
            console.log("返回值:", retValue.readUtf8String());
        }
    })

});
"""


script = session.create_script(scr)
def on_message(message, data):
    print(message, data)
script.on("message", on_message)
script.load()
sys.stdin.read()


'''
hook--so的模版
Java.perform(function () {
    var addr_func = Module.findExportByName("so文件", "函数名");
    Interceptor.attach(addr_func, {
        onEnter: function(args){
          // 函数执行会触发
        },
        onLeave: function(retValue){
            // 函数执行完会触发
        }
    })
});
'''


'''
参数1:待加密的字符串： abRecReason0abRectagFengge0abTypesocial_brand_strategy_v454abValue1abVideoCover2deliveryProjectId0lastIdlimit20loginTokenplatformandroidtimestamp1704204080619uuidee13885e68d76ed4v4.74.5
参数2： d245a0ba8d678a61  # aes的key是固定的
返回值: VwGEkNCFuNTmwD6w19ogqRI5VLum7q2QP6Z4TaJLKn3cvS7y81d64hsABQvdu03vdj76OpM/O2awG8h9UpcJb7mTLuTReeaHVgQgd6kvRikIdeR4xJw0+TRbBSp2lMcQMGn2O4/9BKR+RkYgwOUZd4MFCaYlia6t5gNc3rbNTJjA6aJyja63+nAcybbrLaS0Au8PDK70nRzjYPYOcSEr5YOdr2wdQssTtUlmTMEAneS62ogrdRykXvjd49za9AEW

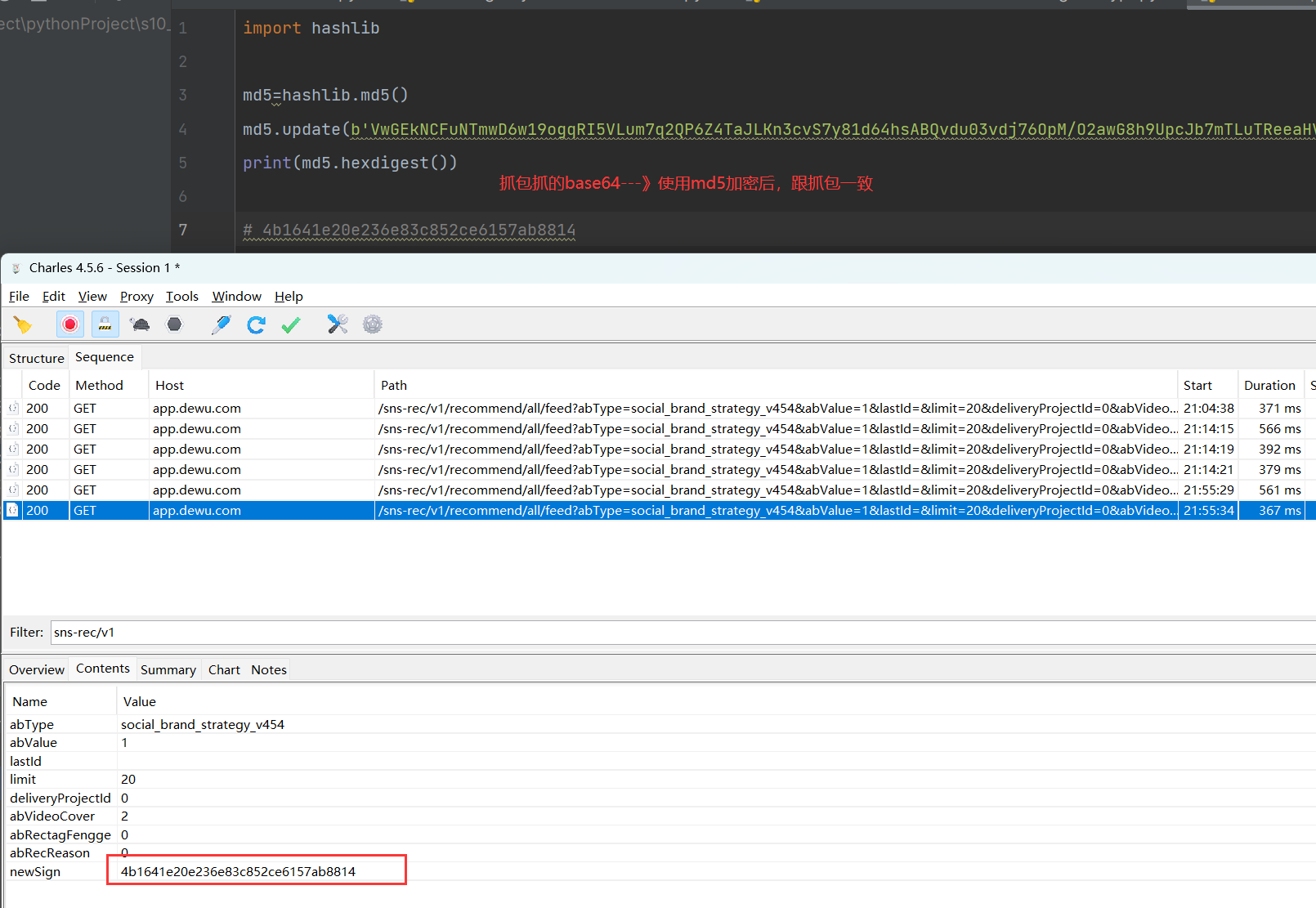

把返回值使用md5加密后，跟抓包一致

'''

image-20240517171951012

4.3.8 python重写Native方法加密

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad
import base64


def aes_encrypt(data_string):
    key = "d245a0ba8d678a61"
    aes = AES.new(
        key=key.encode('utf-8'),
        mode=AES.MODE_ECB,
    )
    raw = pad(data_string.encode('utf-8'), 16)
    return aes.encrypt(raw)


data_string = "abRecReason0abRectagFengge0abTypesocial_brand_strategy_v454abValue1abVideoCover2deliveryProjectId0lastIdlimit20loginTokenplatformandroidtimestamp1704204080619uuidee13885e68d76ed4v4.74.5"
res = aes_encrypt(data_string)
value = base64.encodebytes(res)
result = value.replace(b"\n", b'')
print(result)
# 运行结果： VwGEkNCFuNTmwD6w19ogqRI5VLum7q2QP6Z4TaJLKn3cvS7y81d64hsABQvdu03vdj76OpM/O2awG8h9UpcJb7mTLuTReeaHVgQgd6kvRikIdeR4xJw0+TRbBSp2lMcQMGn2O4/9BKR+RkYgwOUZd4MFCaYlia6t5gNc3rbNTJjA6aJyja63+nAcybbrLaS0Au8PDK70nRzjYPYOcSEr5YOdr2wdQssTtUlmTMEAneS62ogrdRykXvjd49za9AEW
# hook结果：VwGEkNCFuNTmwD6w19ogqRI5VLum7q2QP6Z4TaJLKn3cvS7y81d64hsABQvdu03vdj76OpM/O2awG8h9UpcJb7mTLuTReeaHVgQgd6kvRikIdeR4xJw0+TRbBSp2lMcQMGn2O4/9BKR+RkYgwOUZd4MFCaYlia6t5gNc3rbNTJjA6aJyja63+nAcybbrLaS0Au8PDK70nRzjYPYOcSEr5YOdr2wdQssTtUlmTMEAneS62ogrdRykXvjd49za9AEW

4.4 分析uuid的获取

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#1 待加密字符串如下
abRecReason 0
abRectagFengge 0
abTypesocial_brand_strategy_v454abValue1abVideoCover2deliveryProjectId0
lastId
limit 20
loginToken
platform android
timestamp 1704204080619
uuid ee13885e68d76ed4  # 这个不知道
v 4.74.5

# 2 回到原来newSign位置，找uuid
map.put("uuid", DuHttpConfig.d.getUUID());

# 3 点击进入getUUID 发现看不懂
  public String getUUID() {
            PatchProxyResult proxy = PatchProxy.proxy(new Object[0], this, changeQuickRedirect, false, 5097, new Class[0], String.class);
            return proxy.isSupported ? (String) proxy.result : "";
        }
# 4  PatchProxy.proxy，美团的热修复框架，再这里看不出uuid是什么的，不是直接调用的

# 5 搜索：X-Auth-Token 或者 hashMap.put("uuid",
	-尝试，别的代码生成的uuid是否能用，如果能用就没问题

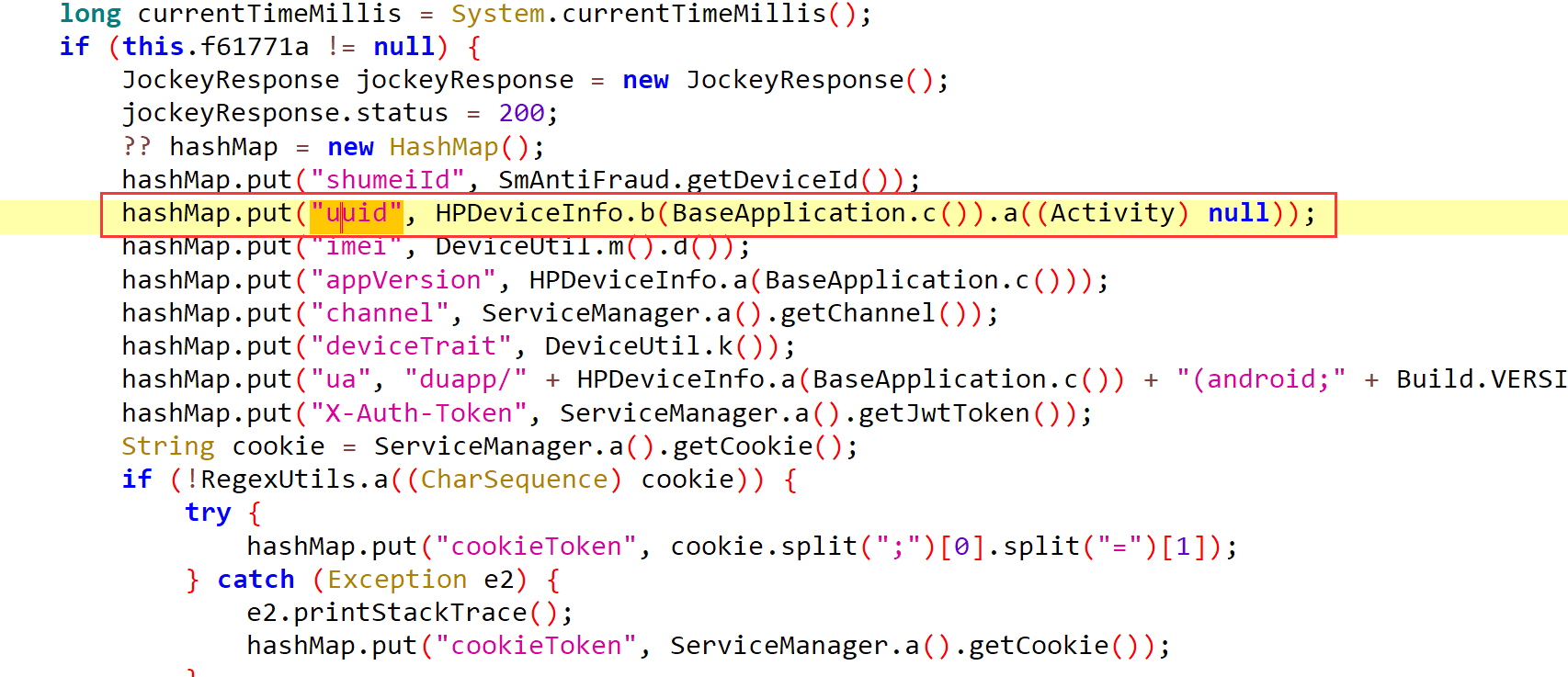

# 6 我再搜 X-Auth-Token 找到了，如下图
# 7 找到hashMap.put("uuid", HPDeviceInfo.b(BaseApplication.c()).a((Activity) null));

public String a(Activity activity) {
        String str = this.f15203b;
        if (str != null) {
            return str;
        }
        if (activity != null) {
            final TelephonyManager telephonyManager = (TelephonyManager) activity.getApplication().getSystemService("phone");
            new RxPermissions(activity).c("android.permission.READ_PHONE_STATE").subscribe(new Consumer() { // from class: g.c.a.a.f.m
                @Override // io.reactivex.functions.Consumer
                public final void accept(Object obj) {
                    HPDeviceInfo.this.a(telephonyManager, (Boolean) obj);
                }
            });
        } else {
            this.f15203b = a();
        }
        return this.f15203b;
    }

# 8 最终找到了：telephonyManager.getDeviceId()--》之前写过，就是手机的imei
def generate_imei2():
    return "".join(random.choices('0123456789abcdef', k=15))

image-20240517172002839

image-20240517172012529

4.5 代码整合生成newSign

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
import time
import requests
import hashlib
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad
from urllib.parse import quote_plus
import base64
import json
import random
import copy


def create_android_id():
    data_list = []
    for i in range(1, 9):
        part = "".join(random.sample("0123456789ABCDEF", 2))
        data_list.append(part)
    return "".join(data_list).lower()


def md5(data_bytes):
    hash_object = hashlib.md5()
    hash_object.update(data_bytes)
    return hash_object.hexdigest()


def aes_encrypt(data_string):
    key = "d245a0ba8d678a61"
    aes = AES.new(
        key=key.encode('utf-8'),
        mode=AES.MODE_ECB,
    )
    raw = pad(data_string.encode('utf-8'), 16)
    return aes.encrypt(raw)


uid = create_android_id()
ctime = str(int(time.time() * 1000))

reply_param_dict = {
    "lastId": "1",
    "limit": "20",
}

new_dict = copy.deepcopy(reply_param_dict)
new_dict.update(
    {"loginToken": "", "platform": "android", "timestamp": str(int(time.time() * 1000)), "uuid": uid, "v": "4.74.5"}
)
ordered_string = "".join(["{}{}".format(key, new_dict[key]) for key in sorted(new_dict.keys())])

aes_string = aes_encrypt(ordered_string)
aes_string = base64.encodebytes(aes_string)
aes_string = aes_string.replace(b"\n", b"")
sign_string = md5(aes_string)
print(sign_string)

5 破解 X-Auth-Token

5.1 查看token值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
#1  三段式，使用 . 分割的，典型的jwt认证中的token
#2 后端通过代码签发给我们的---》里面包含了用户的信息，三部分
	-第一部分是头：加密方式。。
    -第二部分是荷载：用户信息
    -第三部分是签名：用来验证签名
# 3 使用base64编码了 --》反解--》第一和第二部分

Bearer
# 第一段：
eyJhbGciOiJSUzI1NiJ9.
# 第二段：
eyJpYXQiOjE3MDQxOTcyMDUsImV4cCI6MTczNTczMzIwNSwiaXNzIjoiZWUxMzg4NWU2OGQ3NmVkNCIsInN1YiI6ImVlMTM4ODVlNjhkNzZlZDQiLCJ1dWlkIjoiZWUxMzg4NWU2OGQ3NmVkNCIsInVzZXJJZCI6MjE0MTY4MTg1MywidXNlck5hbWUiOiLlvpfniallci1KMEQ4UzZHNSIsImlzR3Vlc3QiOnRydWV9.

# 第三段：
lPzDDzAfGvLQ8oY9-62UzLNXRdpnPRsYUB2u9kBVikwTmnyBgR0yU_zkh-pe_s5v2JUIyRIaeNqMMvUBI7eo1wmZwyG9J8ad2oTYHhmf8pR_HhHutJzYWHiV0a_AtUH7wEMZSePYWN0EOjlK7zPRz6WeCA8Pjfiyrx4ecxIrPl4hpeOHdcyKGMEoCNR2Mmfs336cwFVyTZ5P0Rg5oc45NUP38jM4hvw96vpiv-p950WNHap9JnpTt5QcQGhN3nqB8j09NxshY65pmPaxxJw-D436zC6XCkSendoguFACh9H6ppHFRG_DNRrmIV_33Pgj41Zw-JA9SzjfWBo4qt19QA

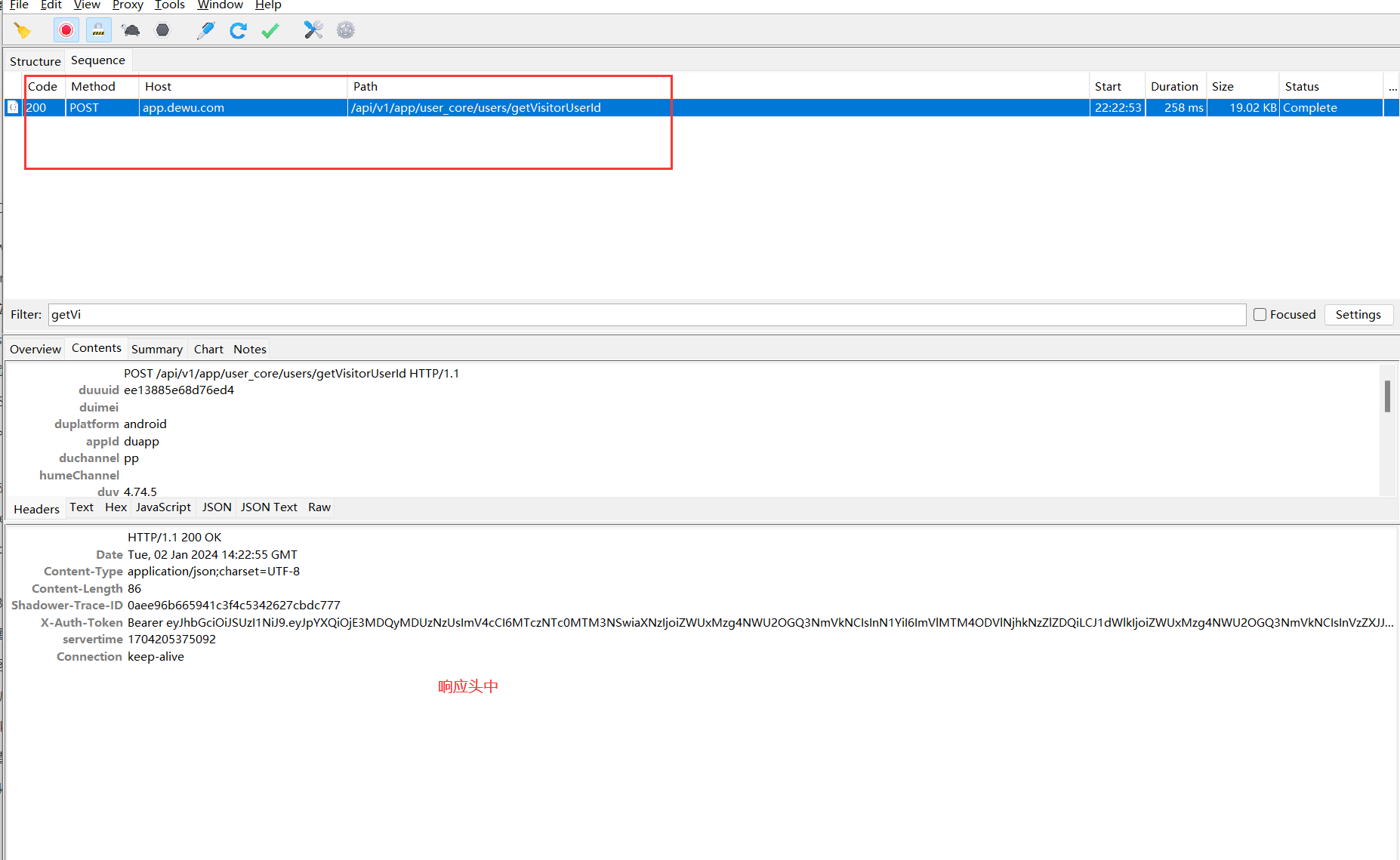

# 4 找是那个接口返回的

Bearer eyJhbGciOiJSUzI1NiJ9.

eyJpYXQiOjE3MDQyMDUzNzUsImV4cCI6MTczNTc0MTM3NSwiaXNzIjoiZWUxMzg4NWU2OGQ3NmVkNCIsInN1YiI6ImVlMTM4ODVlNjhkNzZlZDQiLCJ1dWlkIjoiZWUxMzg4NWU2OGQ3NmVkNCIsInVzZXJJZCI6MjE0MTY4MTg1MywiaXNHdWVzdCI6dHJ1ZX0.

gj0blSiRRZXtTmIs3hbSbIFRVREW2ZyFSk9leEcPB7wiCGwLR0RHKYM1fZq3T959G5RcWhqquXcuG8IcSKQthRmpnv6qA-TlNGwkuA--iMwdaeA-7KjDOdPoZfzah5qhur6NmVVUKiz1S1x2wQplhqH3UMAXmbUtrNc2x2pn9mHAKK_1yHhiOFezi74agdkM8A4a9XEMTrT8oPOxFtGYwBuBYJeZZCul7zPtxfvi724F8StmlOd4cUWWWtVlkTxX5hccajWfBV6LnzNrUDwEOzPDETURKXvm280XztpD8wo6yMOFCQ2d7xhZEyEEYKRmejcSTRySSghozxgJBd47uw



Bearer eyJhbGciOiJSUzI1NiJ9.

eyJpYXQiOjE3MDQyMDUzNzUsImV4cCI6MTczNTc0MTM3NSwiaXNzIjoiZWUxMzg4NWU2OGQ3NmVkNCIsInN1YiI6ImVlMTM4ODVlNjhkNzZlZDQiLCJ1dWlkIjoiZWUxMzg4NWU2OGQ3NmVkNCIsInVzZXJJZCI6MjE0MTY4MTg1MywiaXNHdWVzdCI6dHJ1ZX0.

gj0blSiRRZXtTmIs3hbSbIFRVREW2ZyFSk9leEcPB7wiCGwLR0RHKYM1fZq3T959G5RcWhqquXcuG8IcSKQthRmpnv6qA-TlNGwkuA--iMwdaeA-
7KjDOdPoZfzah5qhur6NmVVUKiz1S1x2wQplhqH3UMAXmbUtrNc2x2pn9mHAKK_1yHhiOFezi74agdkM8A4a9XEMTrT8oPOxFtGYwBuBYJeZZCul7zPtxfvi724F8StmlOd4cUWWWtVlkTxX5hccajWfBV6LnzNrUDwEOzPDETURKXvm280XztpD8wo6yMOFCQ2d7xhZEyEEYKRmejcSTRySSghozxgJBd47uw

image-20240517172027735

5.2 请求获取token

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
import time
import requests
import hashlib
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad
from urllib.parse import quote_plus
import base64
import json
import random


def create_android_id():
    data_list = []
    for i in range(1, 9):
        part = "".join(random.sample("0123456789ABCDEF", 2))
        data_list.append(part)
    return "".join(data_list).lower()


def md5(data_bytes):
    hash_object = hashlib.md5()
    hash_object.update(data_bytes)
    return hash_object.hexdigest()


def aes_encrypt(data_string):
    key = "d245a0ba8d678a61"
    aes = AES.new(
        key=key.encode('utf-8'),
        mode=AES.MODE_ECB,
    )
    raw = pad(data_string.encode('utf-8'), 16)
    return aes.encrypt(raw)


uid = create_android_id()
ctime = str(int(time.time() * 1000))

param_dict = {"loginToken": "", "platform": "android", "timestamp": ctime, "uuid": uid, "v": "4.74.5"}

ordered_string = "".join(["{}{}".format(key, param_dict[key]) for key in sorted(param_dict.keys())])
aes_string = aes_encrypt(ordered_string)
aes_string = base64.encodebytes(aes_string)
aes_string = aes_string.replace(b"\n", b"")
sign = md5(aes_string)
param_dict['newSign'] = sign

res = requests.post(
    url="https://app.dewu.com/api/v1/app/user_core/users/getVisitorUserId",
    headers={
        "duuuid": uid,
        "duimei": "",
        "duplatform": "android",
        "appId": "duapp",
        "timestamp": ctime,
        'duv': '4.74.5',
        'duloginToken': '',
        'dudeviceTrait': 'Pixel+2+XL',
        'shumeiid': '202308011759568af1c8fc75c211e7f876664d9493202d0055aeeb3dd6e38c',
        'User-Agent': 'duapp/4.74.5(android;11)'

    },
    json=param_dict,
    verify=False
)
print(res.headers)
x_auth_token = res.headers['X-Auth-Token']
print(x_auth_token)

6 代码整合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
import time
import requests
import hashlib
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad
from urllib.parse import quote_plus
import base64
import json
import random
import urllib3
urllib3.disable_warnings()


def create_android_id():
    data_list = []
    for i in range(1, 9):
        part = "".join(random.sample("0123456789ABCDEF", 2))
        data_list.append(part)
    return "".join(data_list).lower()


def md5(data_bytes):
    hash_object = hashlib.md5()
    hash_object.update(data_bytes)
    return hash_object.hexdigest()


def aes_encrypt(data_string):
    key = "d245a0ba8d678a61"
    aes = AES.new(
        key=key.encode('utf-8'),
        mode=AES.MODE_ECB,
    )
    raw = pad(data_string.encode('utf-8'), 16)
    return aes.encrypt(raw)


uid = create_android_id()
ctime = str(int(time.time() * 1000))

# param_dict = {"loginToken": "", "platform": "android", "timestamp": ctime, "uuid": uid, "v": "4.84.0"}
param_dict = {"loginToken": "", "platform": "android", "timestamp": ctime, "uuid": uid, "v": "4.74.5"}

ordered_string = "".join(["{}{}".format(key, param_dict[key]) for key in sorted(param_dict.keys())])
aes_string = aes_encrypt(ordered_string)
aes_string = base64.encodebytes(aes_string)
aes_string = aes_string.replace(b"\n", b"")
sign = md5(aes_string)
param_dict['newSign'] = sign

res = requests.post(
    url="https://app.dewu.com/api/v1/app/user_core/users/getVisitorUserId",
    headers={
        "duuuid": uid,
        "duimei": "",
        "duplatform": "android",
        "appId": "duapp",
        "timestamp": ctime,
        'duv': '4.74.5',
        'duloginToken': '',
        'dudeviceTrait': 'Pixel+2+XL',
        'shumeiid': '202308011759568af1c8fc75c211e7f876664d9493202d0055aeeb3dd6e38c',
        'User-Agent': 'duapp/4.74.5(android;11)'

    },
    json=param_dict,
    verify=False
)
x_auth_token = res.headers['X-Auth-Token']

reply_param_dict = {
    "lastId": "1",
    "limit": "20",
    # "newSign": ""
}
import copy

new_dict = copy.deepcopy(reply_param_dict)
new_dict.update(
    # {"loginToken": "", "platform": "android", "timestamp": str(int(time.time() * 1000)), "uuid": uid, "v": "4.84.0"})
    {"loginToken": "", "platform": "android", "timestamp": str(int(time.time() * 1000)), "uuid": uid, "v": "4.74.5"})
ordered_string = "".join(["{}{}".format(key, new_dict[key]) for key in sorted(new_dict.keys())])

aes_string = aes_encrypt(ordered_string)
aes_string = base64.encodebytes(aes_string)
aes_string = aes_string.replace(b"\n", b"")
sign_string = md5(aes_string)
reply_param_dict['newSign'] = sign_string

res = requests.get(
    url="https://app.dewu.com/sns-rec/v1/recommend/all/feed/",
    params=reply_param_dict,
    headers={
        "X-Auth-Token": x_auth_token,
        'User-Agent': 'duapp/4.74.5(android;11)'
    },
    verify=False
)
print(res.text)

7 总结

1
2
3
4
5
6
7
8
9
10
11
12
13
# 1 更新绕过
# 2 绕过代理抓包
# 3 破解newSign--》其实没用--》后续所有请求都需要
	-请求参数的key-value+固定的login，uuid。。
    -排序
    -转成字符串
    -使用aes+key加密
    -使用base64编码
    -使用md5加密

# 4 x-auth-token--》某个请求返回的

# 5 代码整合

__END__
